Overview
Suitable for PoE/PoE+
Tool-free cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

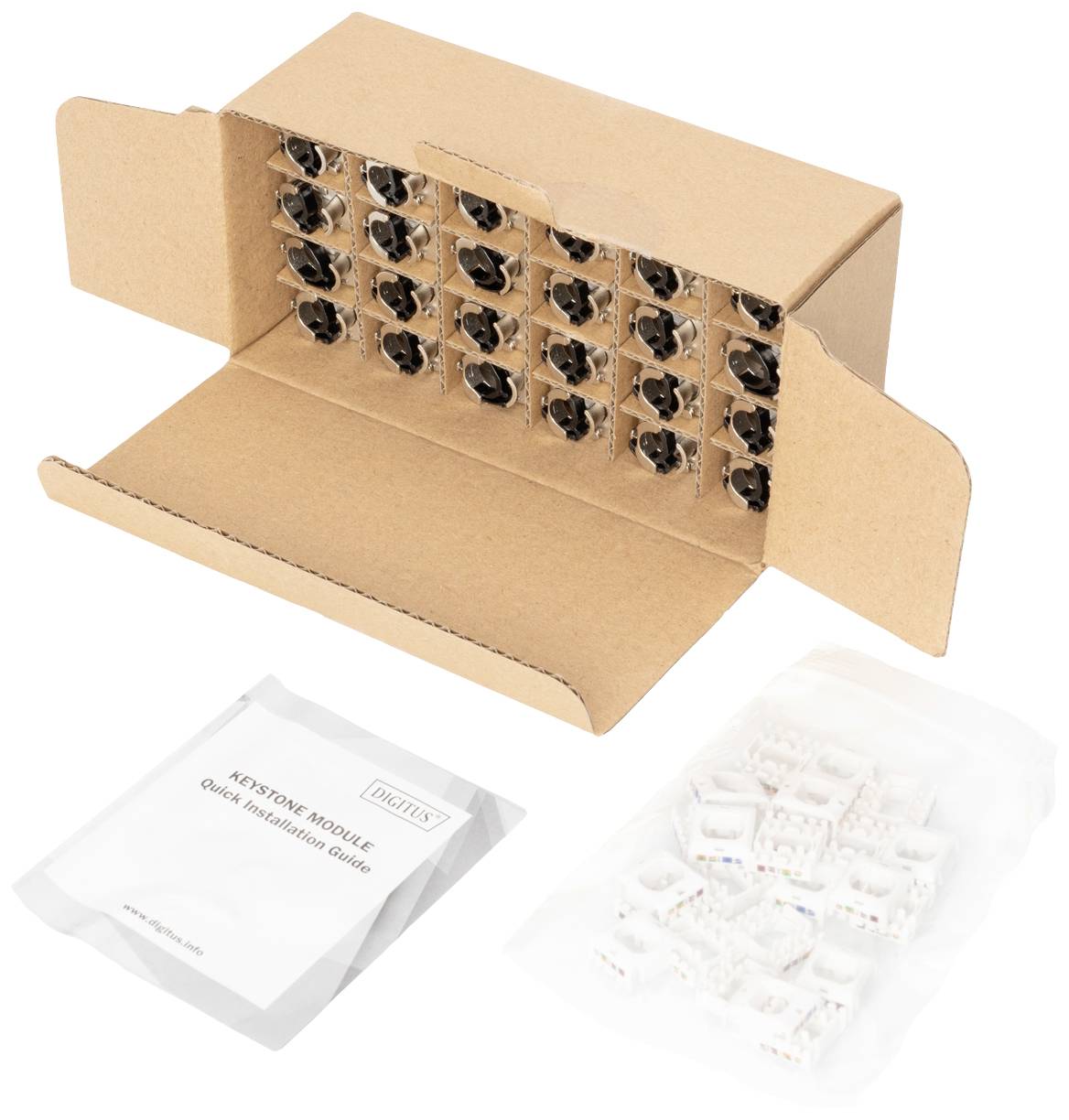

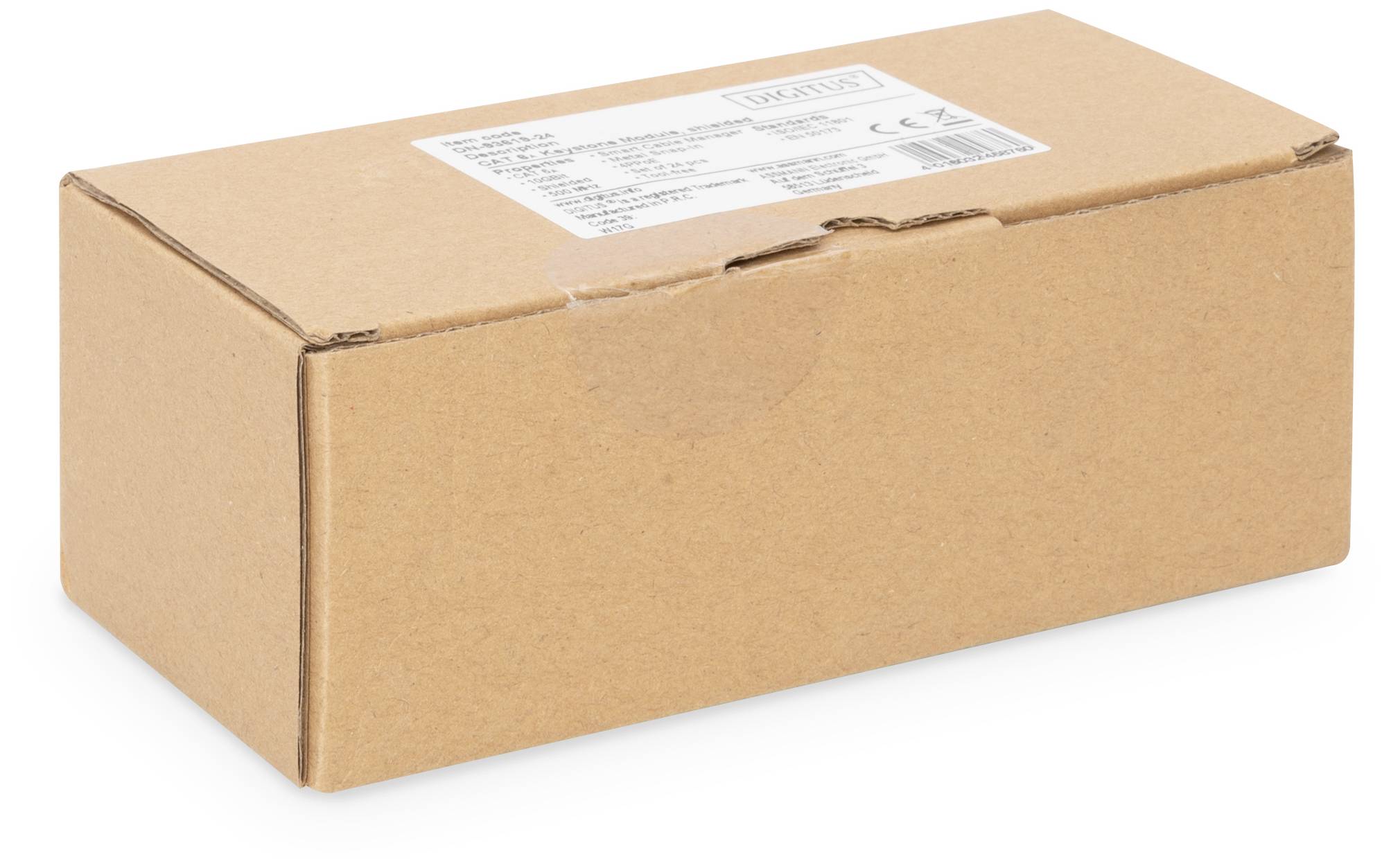

Set = 24 pieces

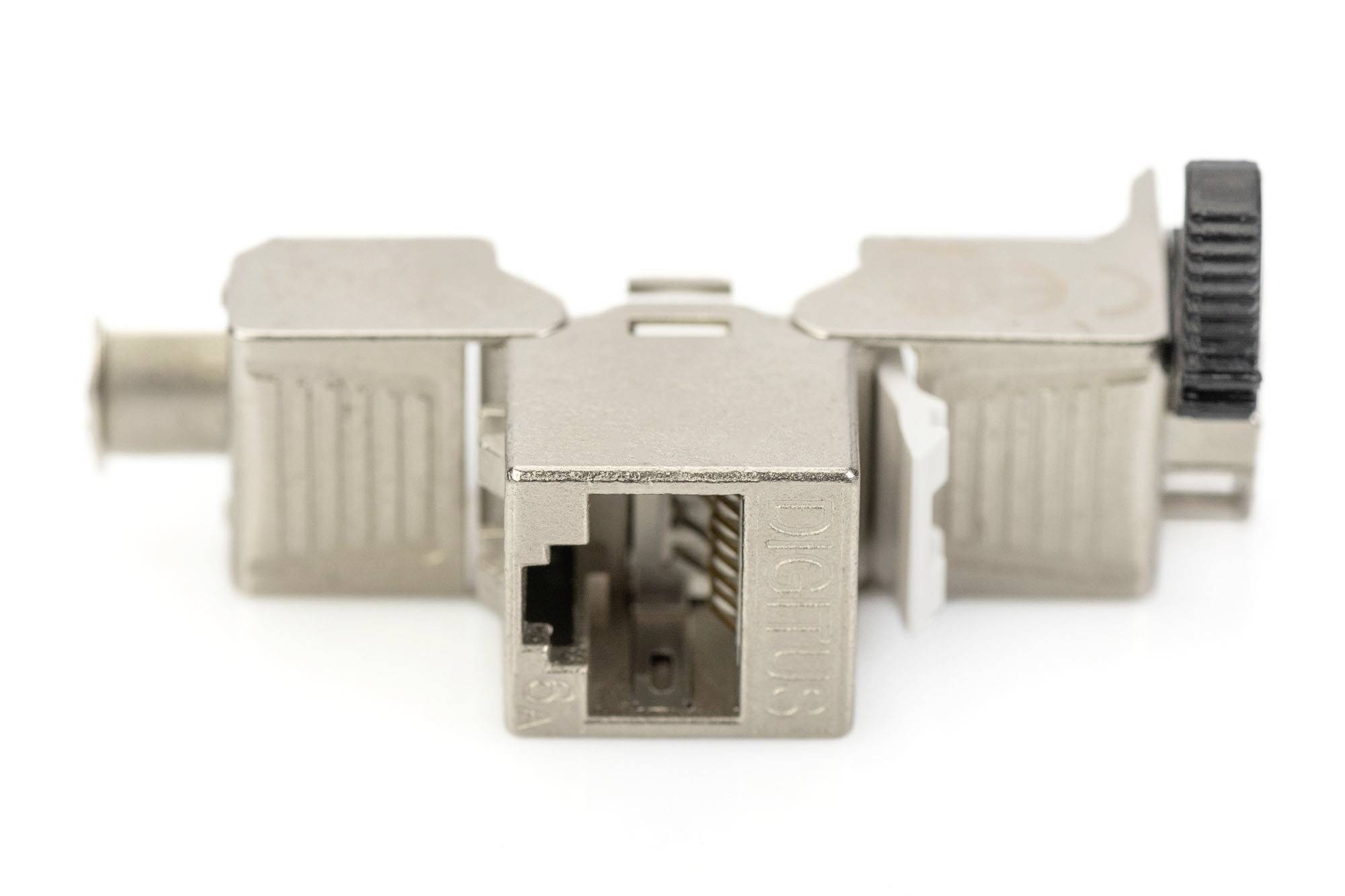

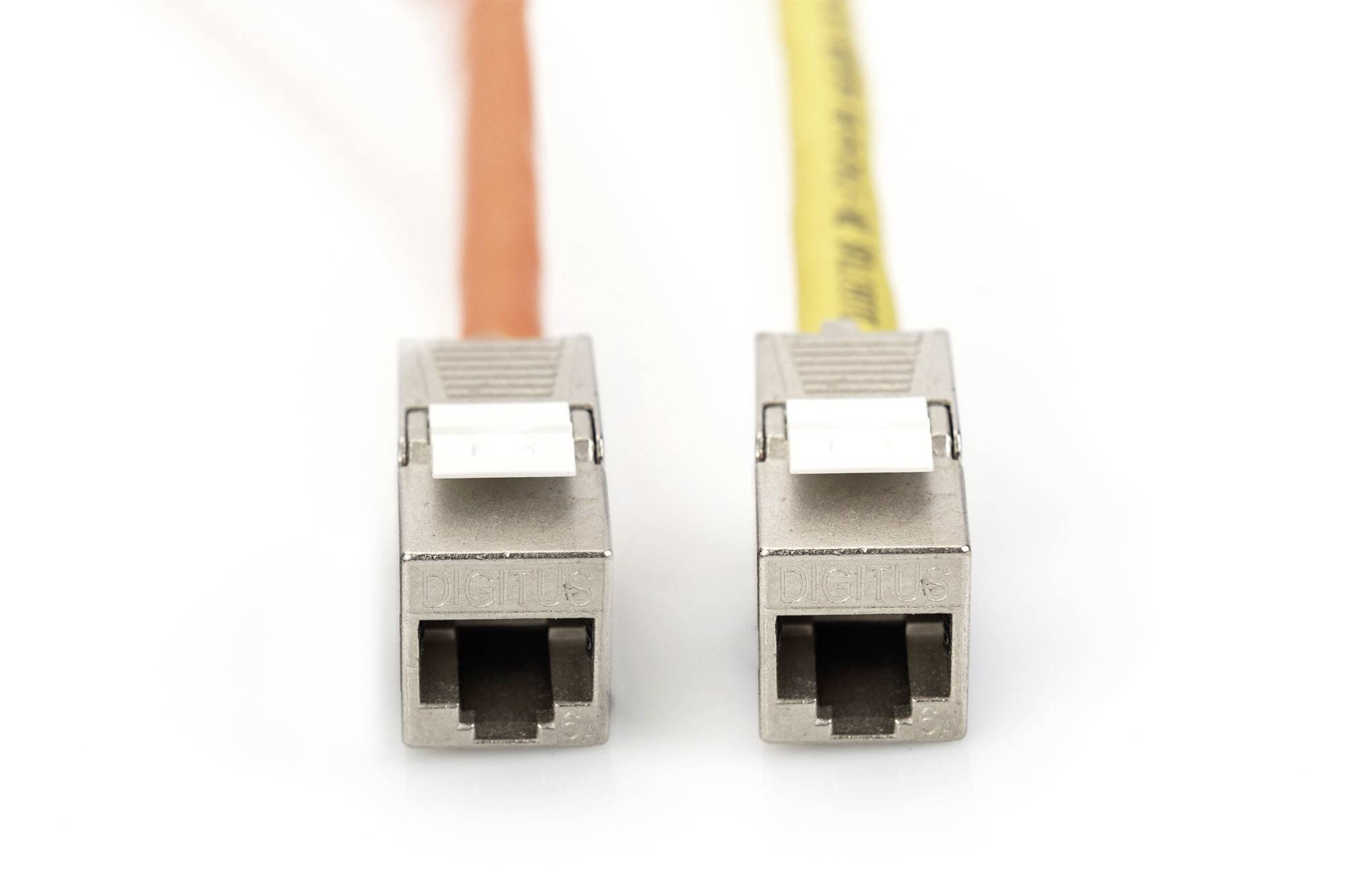

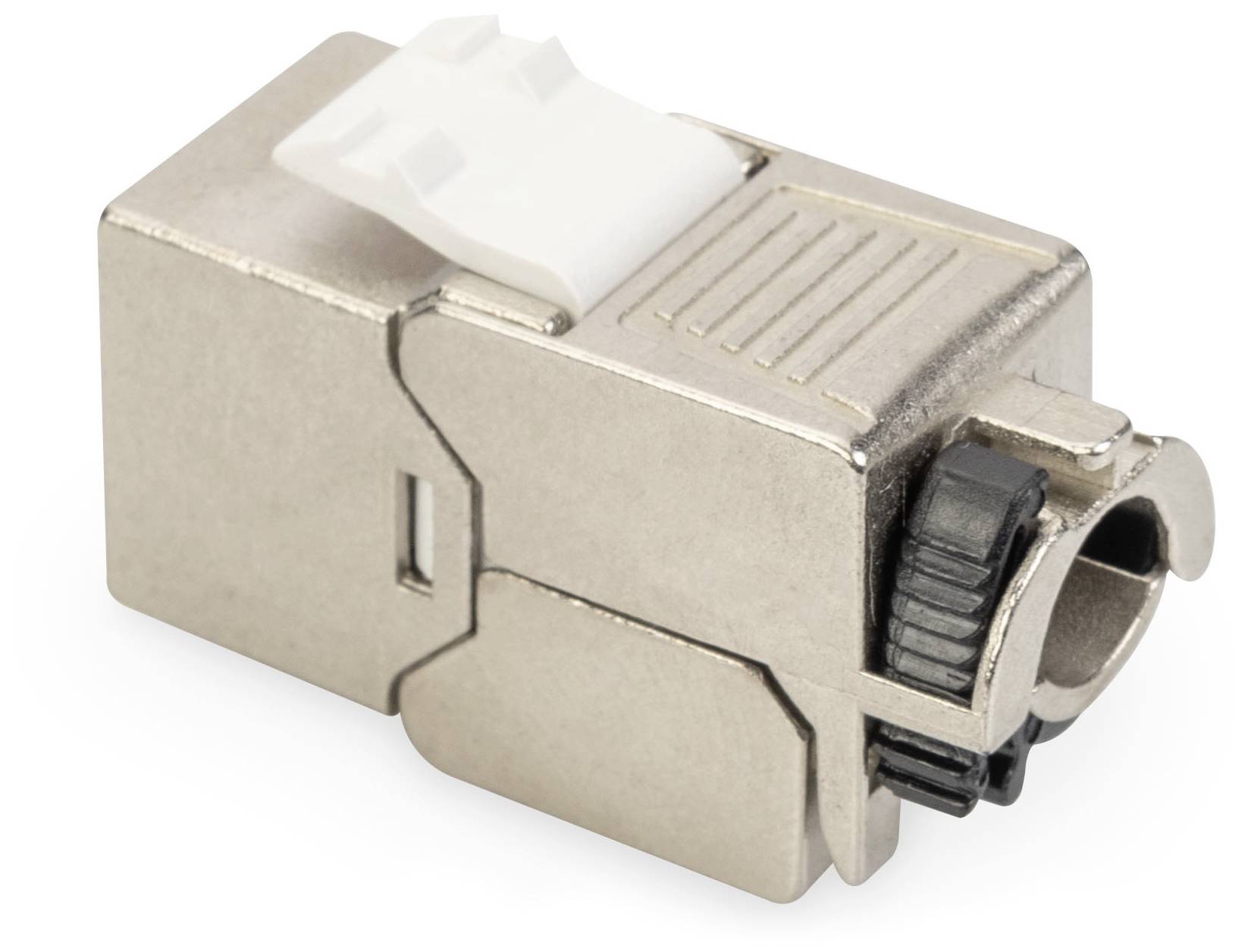

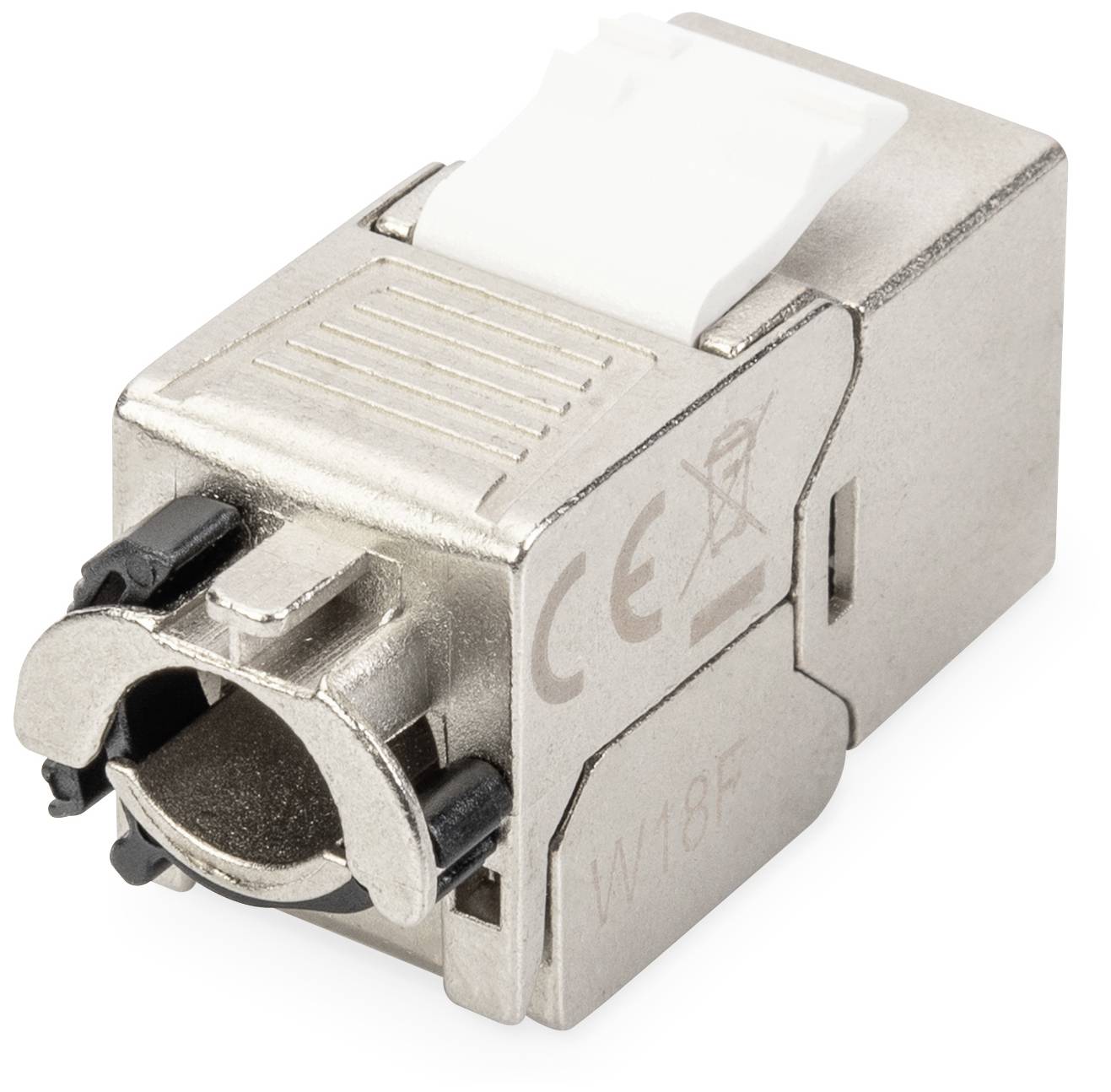

Digitus DN-93617-24 RJ45 module Keystone CAT 6A 24 pc(s)
69,29 €
VAT included
Free shipping
Delivery time:
3-4 days
in stock
30 days free return shipment
69,29 €
VAT included
Free shipping
Product description
Description

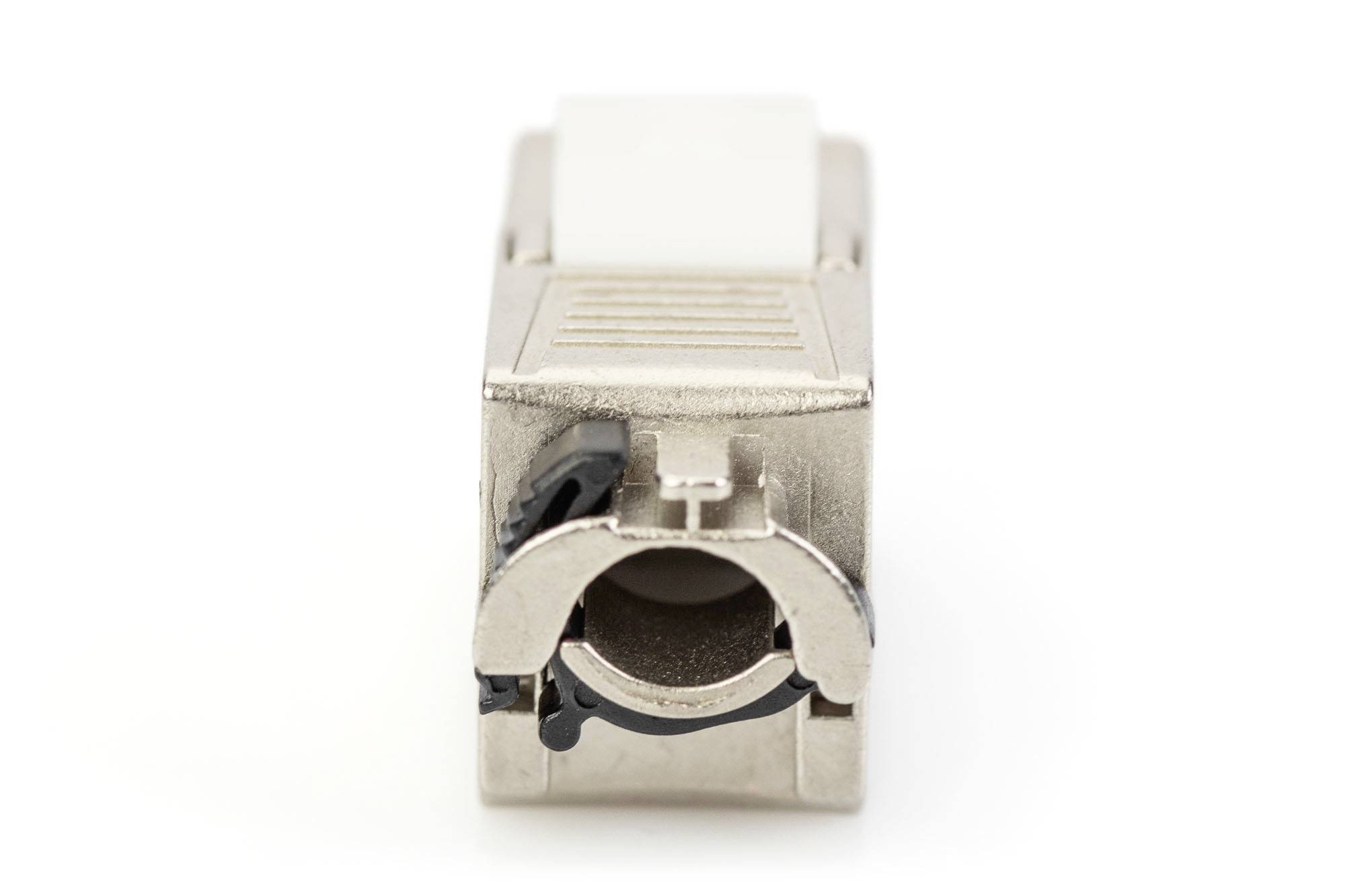

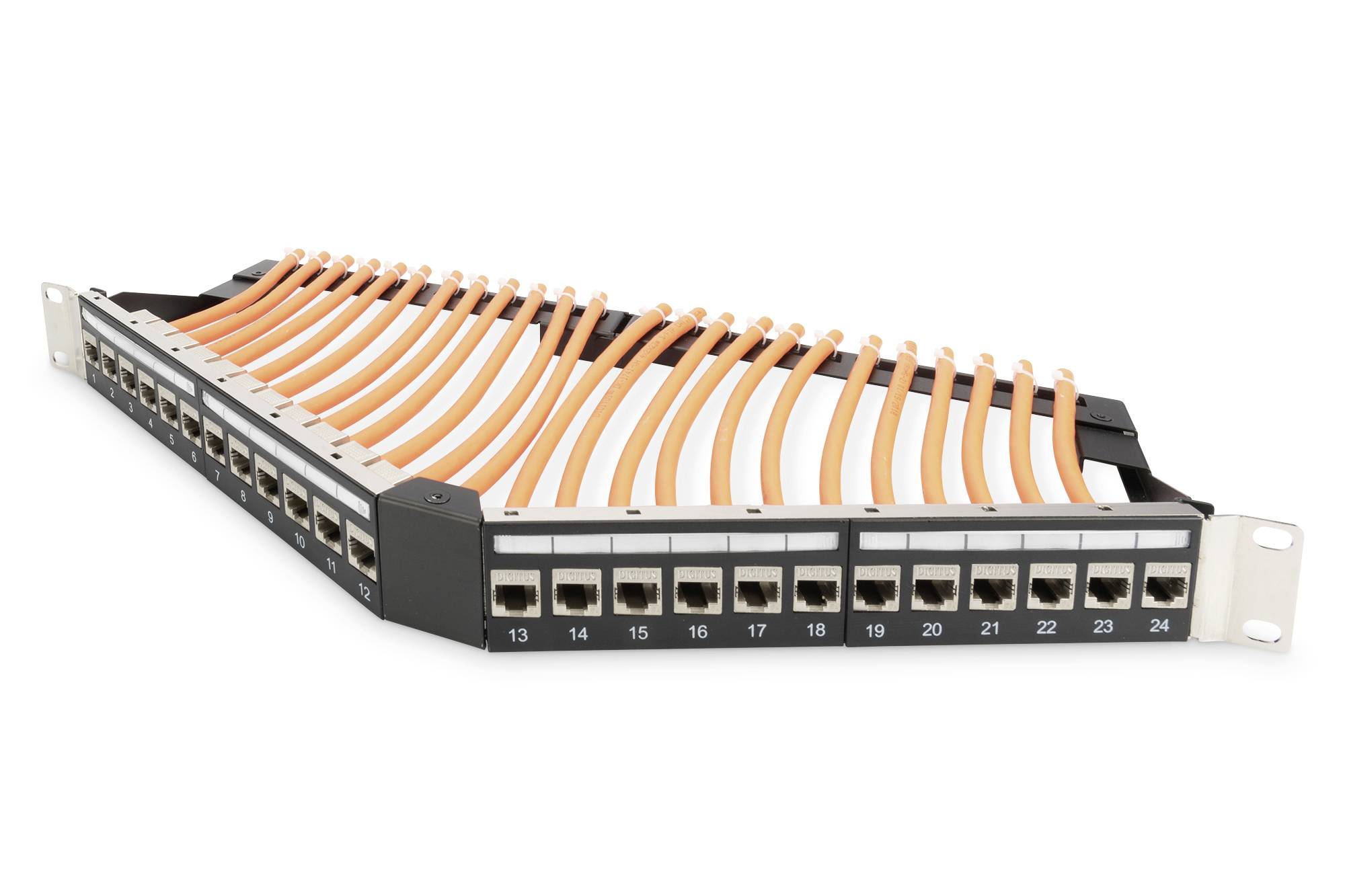

The shielded Keystone Module “DN-93617” from DIGITUS® provides best performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U Panels. It is conforming to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1:2002, ISO/IEC 11801:2002. Due to its compact size, this module suits into design compatible modular wall outlets (face plates).
· Transmission properties: Category 6A, Class EA
· Area of application: Up to 500 MHz, 10GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
· General properties:
· Suitable for patch panels and mounting outlets
· RJ45 female, 8P8C
· Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

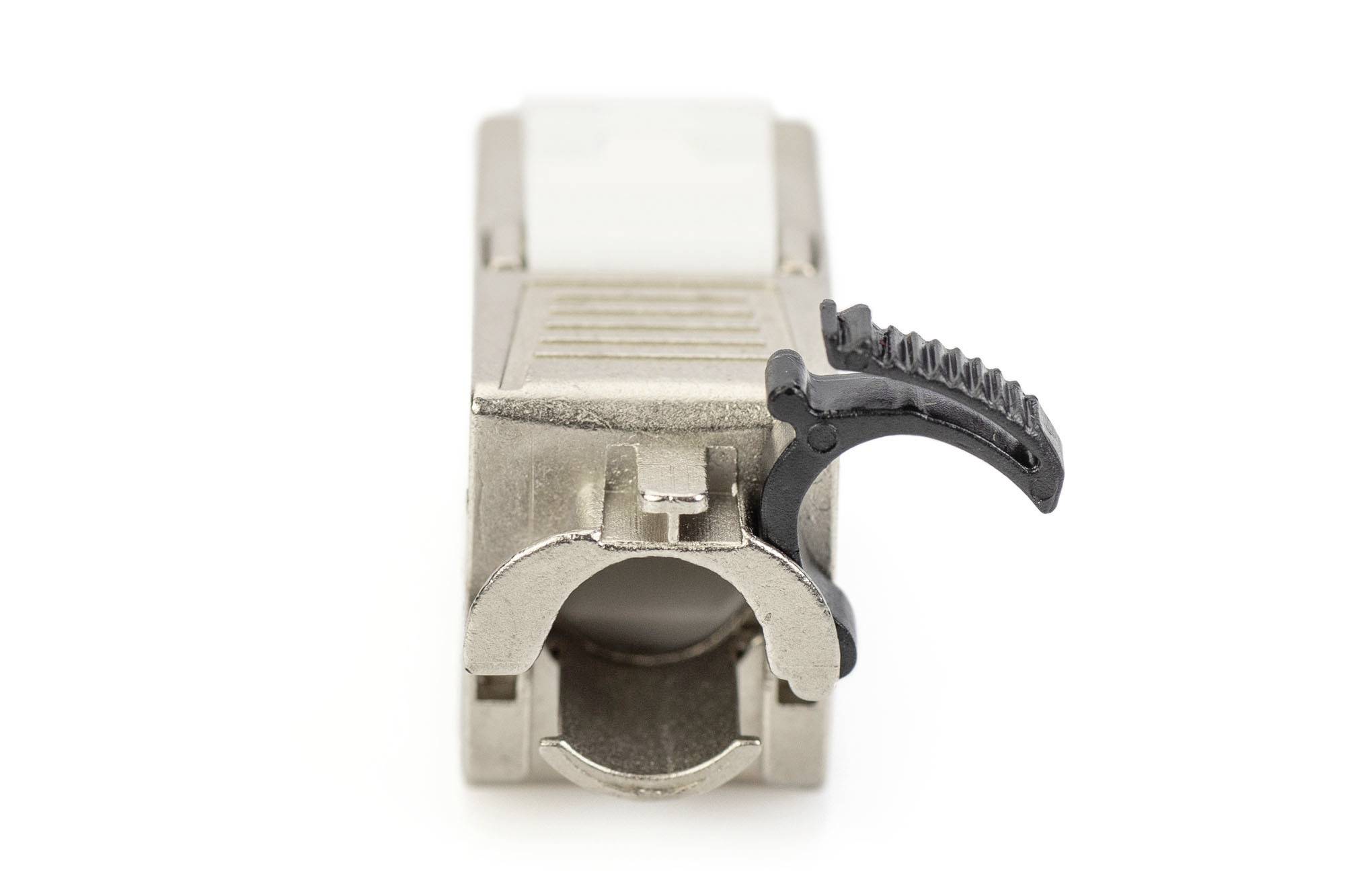

· Cable fixing with cable tie
· Tool-free installation
· 360° shield coverage

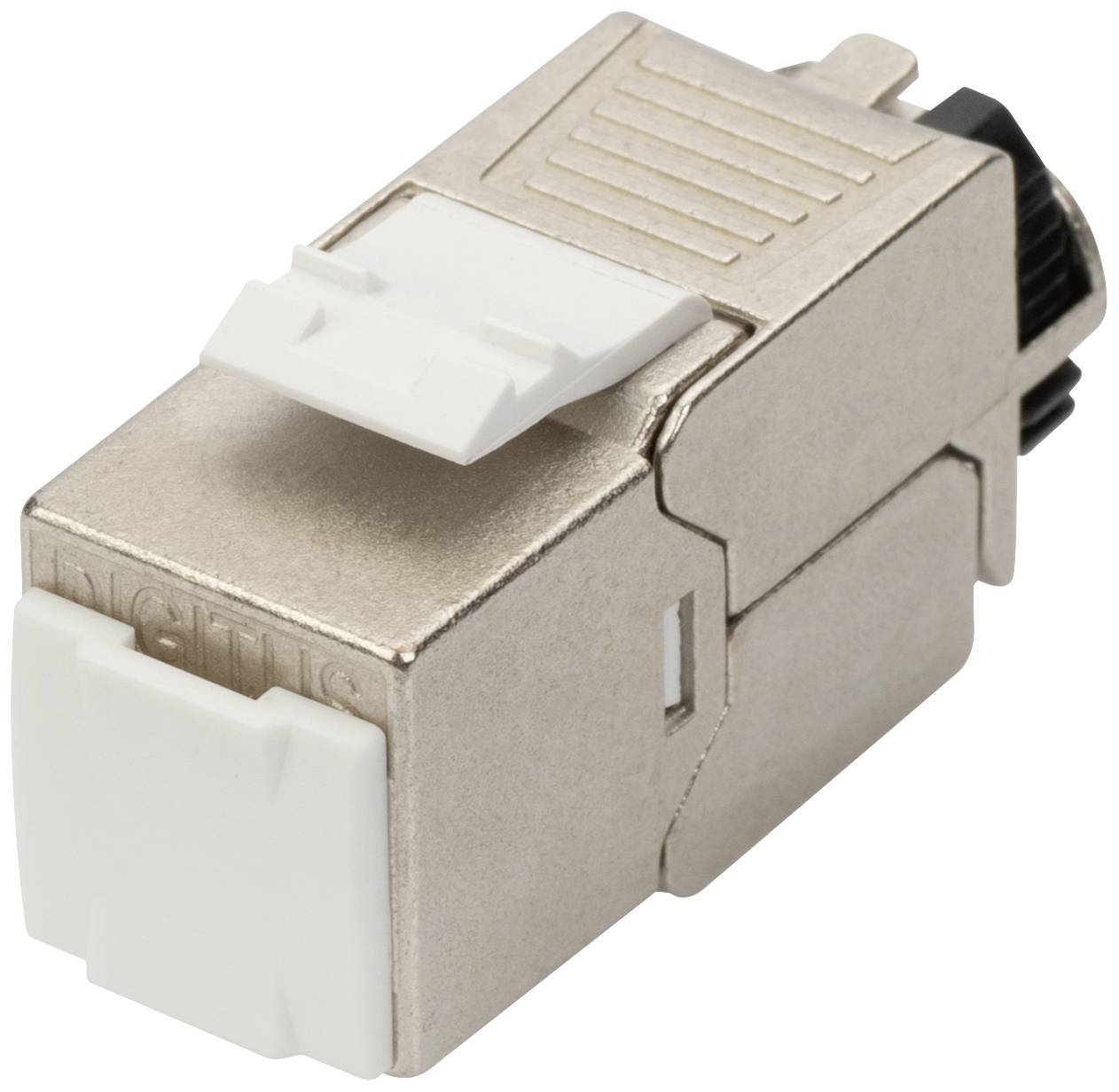

· Dust cover included
· Design compatible to common switch ranges
· Technical properties:
· Housing material: Zinc die-cast, nickel-plated
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
· RJ45 shielding: Tinned bronze
· LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female:
· Clamp:
· IDC wire size: 22 – 26 AWG solid and stranded conductor
· Insulation resistance:
· Contact resistance:
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Characteristics
Case material: die-cast zinc-plated
Contact material: Phosphorbronze
Coating Contacts: Nickel, gold-plated 0.5 μ
Feed force: max. 30 N (in accordance with IEC 60603-7-5)
Tensile strain: 7.7 kg between socket and plug
Operating temperature: -10 °C up to +60 °C (ISO/IEC 11801, ANSI/TIA 568C.2)
Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
Cu wire diameter: AWG (26... 22), flexible and solid
Tested with AWG 22 solid installation cable
CAT 6A transmission properties are compatible with the ANSI/TIA 568C.2 Standard
500 MHz according to ISO/IEC 60603-7-51, 11801 AMD 2:2010-04
RJ45 socket, for installation in Patch Panel and modular sockets
Cable input: Rear
Dimensions (HXWXD): 19.5 x 14.5 x 35.3 mm
