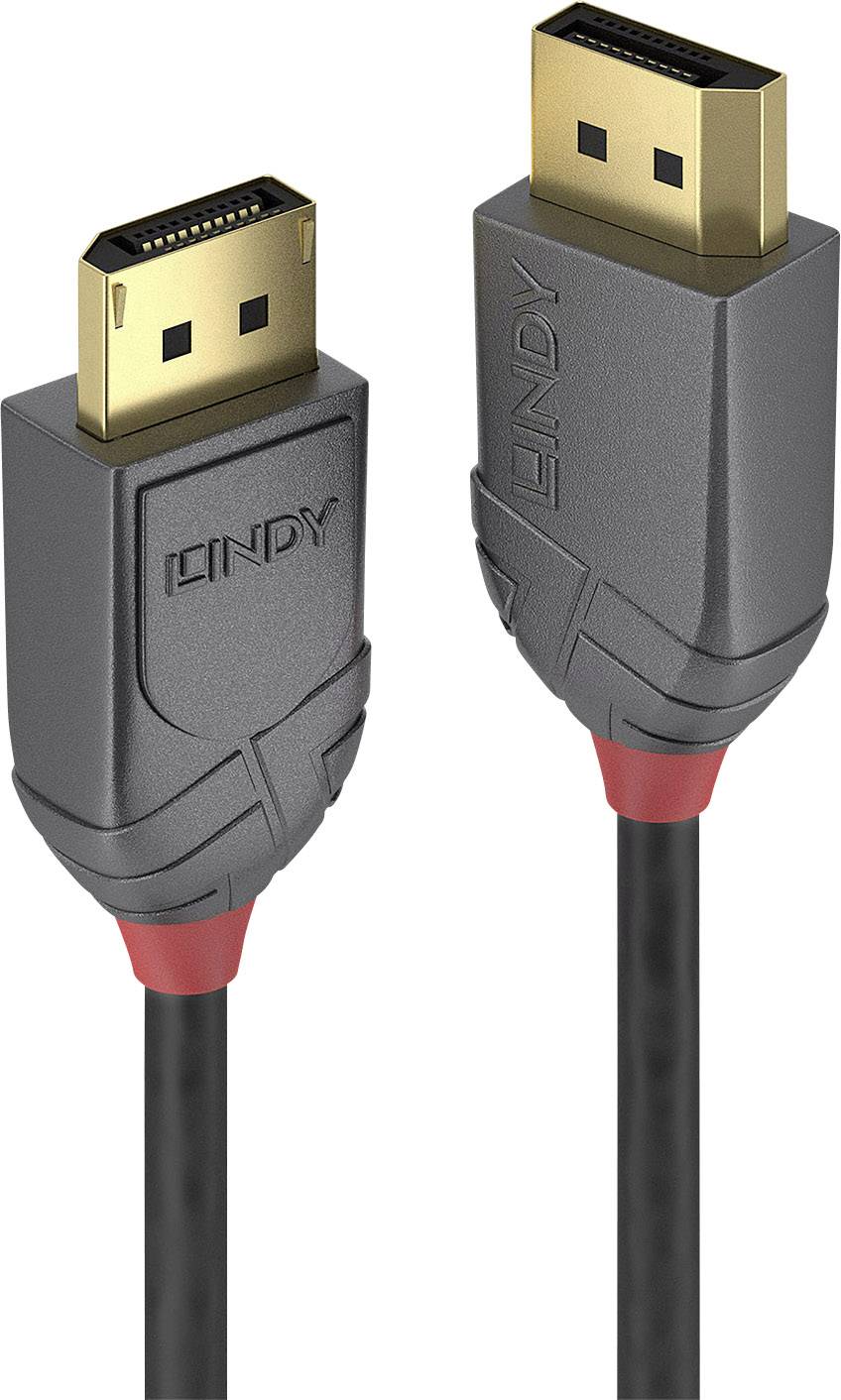

Professional DisplayPort 1.2 cable for high-performance, commercial AV and IT applications
Supports UHD resolutions up to 4K 4096x2160@160Hz 4:4:4 8Bit
Robust ABC housing with 24K gold-plated contacts and plug sleeves
3-way shielded cable with corrosion-resistant, 27AWG-tin-plated copper conductor
DisplayPort 1.2, 4K, 3D, 32.4Gb/s.
Cable Lines is the concept of Lindy's contemporary wired connectivity solutions. The Anthra Line DisplayPort cables from the cable-line concept are the professional choice when it comes to realizing connections for the highest resolutions in commercial AV and IT applications.
The Anthra Line DVI-D Dual-Link Premium cables have a 3x shielding and tin-plated copper conductors with 27AWG cross-section for maximum and loss-free transmission power. The high-quality gold-plated contacts and plug sleeves with 24K ensure long-lasting corrosion resistance and maximum reliability.
UHD resolutions up to 4K 4096x2160@160Hz 4:4:4 8Bit are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensure compatibility with all DisplayPort-enabled devices.
Connector A: DisplayPort plug
connector B: DisplayPort plug
Housing material: ABS
coating of connector: 24K gold 15µm
Pin construction: Phosphor bronze
coating of pins: 24K gold 3µm
Dimensions (approx.) WxDxH: 19.7x38.9x12mm (0.78x1.58x0.47in)
Standard: DisplayPort 1.2
Color: Black
Type: Round
Shell diameter: 7.3mm (0.29in)
Sheath material: PVC
Conductor material: Copper
Wire dimensions: 27AWG
Shielding: Copper braid, 65%
Supported bandwidth: 32.4Gbit/s
Maximum resolution:
4096x2160@120Hz 4:4:4 8Bit
Nominal damping: 100MHz-450MHz
in Bending radius: 28.3dB
: 28.4dB: 123.28mm (25mm) 8100MHz -20°C - 80°C (-4°F - 176°F)
STORAGE TEMPERATURE: -25°C - 85°C (-13°F - 185°F)
