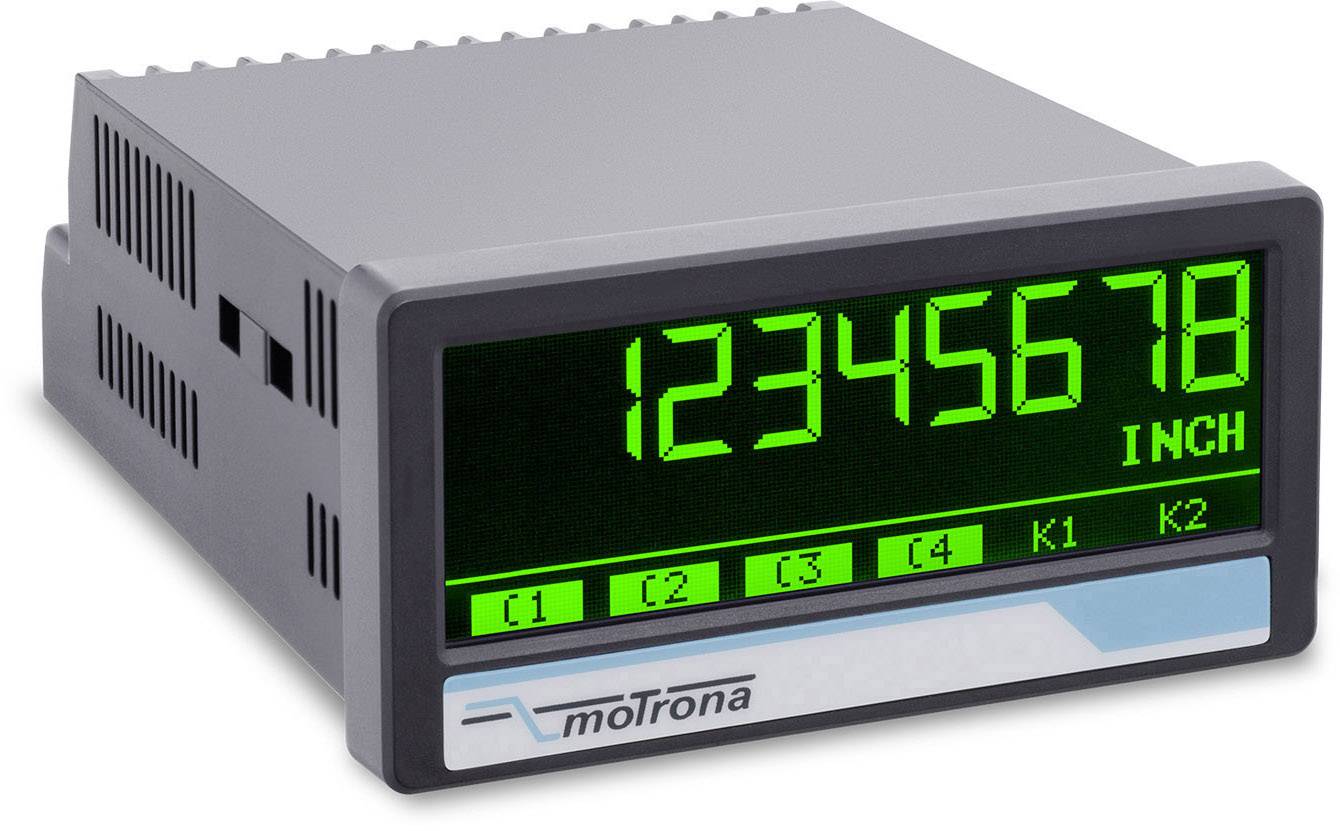

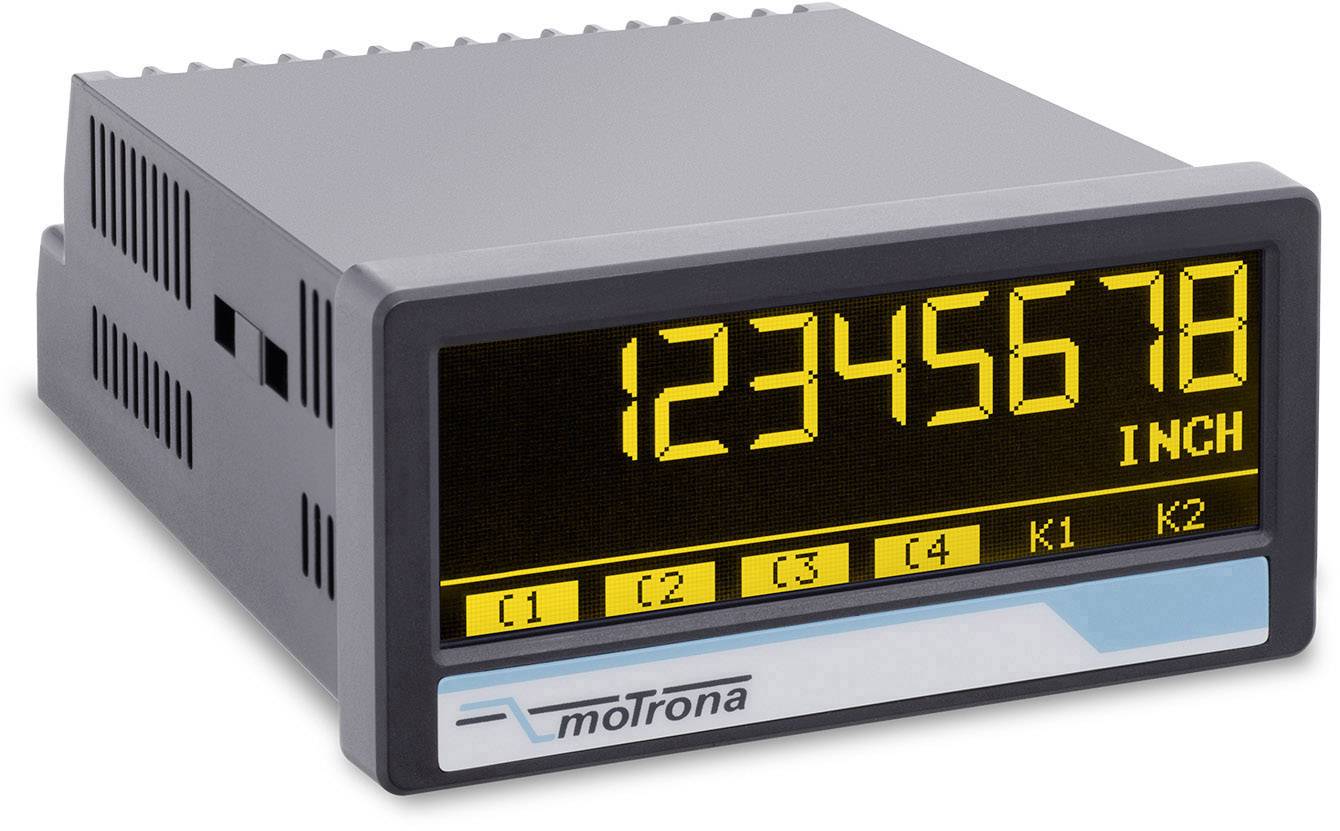

Motrona 6888.5150.CO.AC.RL Digital display

Overview

Digital display for incremental encoder or sensor signals
Tachometer
Speed-measuring device
Cycle Counters
Length counter
Run Time Display
Baking time display
Position indicator
Runtime measurement
Timers
Stopwatch
Resistive Touch Screen
Multi-colored graphics display (red, green, yellow)
Adjustable scale factor
Switchable linearization with 24 nodes
Digital filter function
Actual value memory
2 relay outputs
4 transistor switching outputs
Serial RS232 interface
Device supply 230VAC/24VDC

Description

Very easy to param powered end process display. The multi-function inputs allow the measurement of speed (frequency) or also the determination of a position (Counter) in one device. It can use both pulses of a proximity switch or a rotary pulse encoder can be processed: With the help of pulse evaluation factor can be assigned to any input value is a desired display value. With relay and transistor outputs for limit values and serial interface.

Characteristics

Robust plastic casing · Bright, high-contrast display with event-dependent color variants · Emulation of a 7-Segment display with symbols and units · Intuitive and easy parameterization with plain text and touch-screen · Relay outputs for the limit values · 4 control outputs · Serial RS232 interface · Device supply 115.... 230VAC/24VDC

Delivery content

• Mounting material for panel installation
• Operating manual
