2 independently scalable analogue inputs 0-10V, 0-20mA, 4-20mA with calculation
Tare weight reading.
Adjustable Averaging
Switchable linearization with 24 nodes
Tota Lisa gate function
Reference voltage for potentiometer connection
Device supply 115/230 VAC/24VDC
2 relay outputs

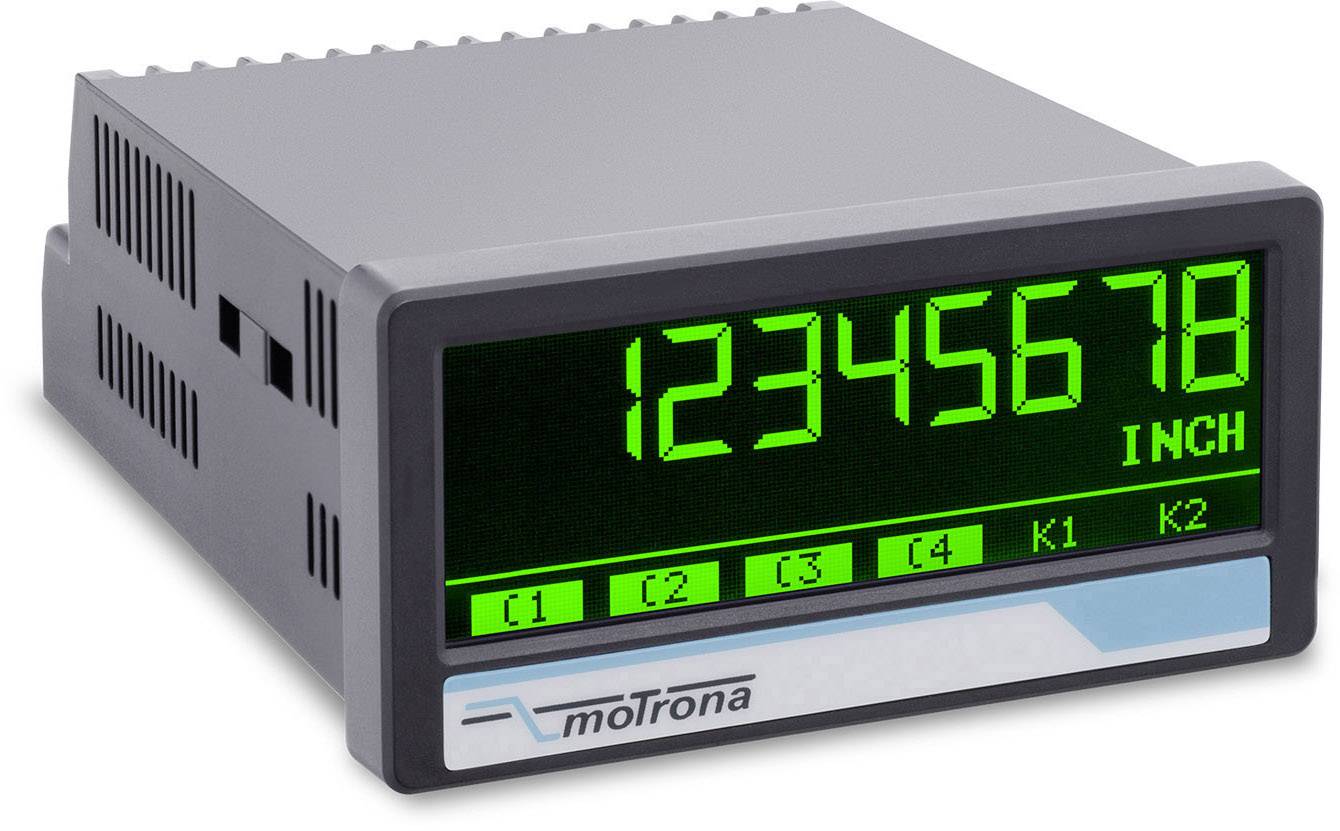

Very easy to param powered end process display. With the help of evaluation factor can be any analog input value is a desired display value can be assigned. The two analog inputs can be individually (channel A or channel B), or even after calculation A + B, A-B, A*B, A/B. Using the tare function changes the display at any time on a virtual zero point. The highly stable reference voltage output for connection of a linear potentiometer. With relay outputs for limit values.

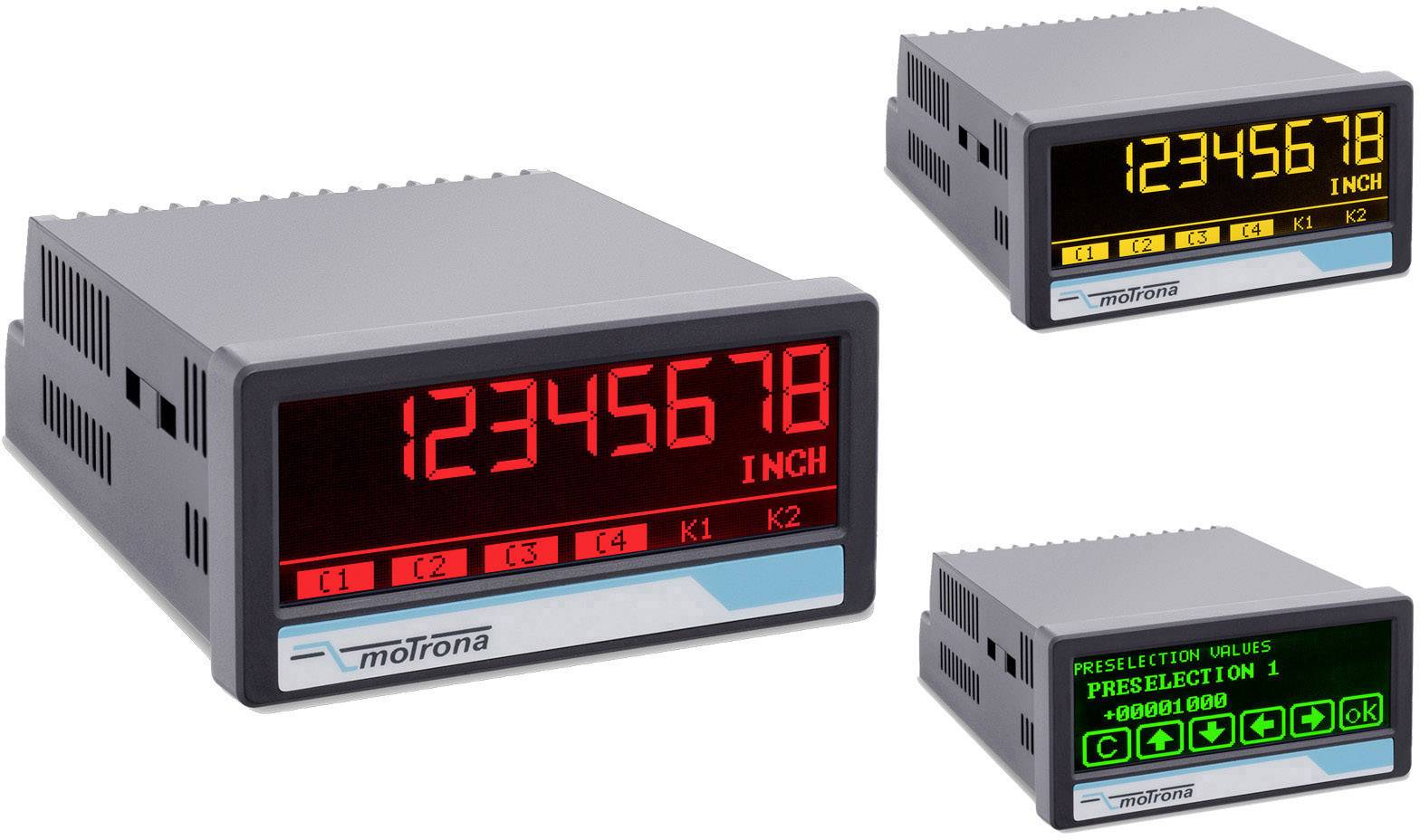

Robust plastic casing · Bright, high-contrast display with event-dependent color variants · Emulation of a 7-Segment display with symbols and units · Intuitive and easy parameterization with plain text and touch-screen · Device supply 115/230 VAC/24VDC · Relay outputs for the limit values
