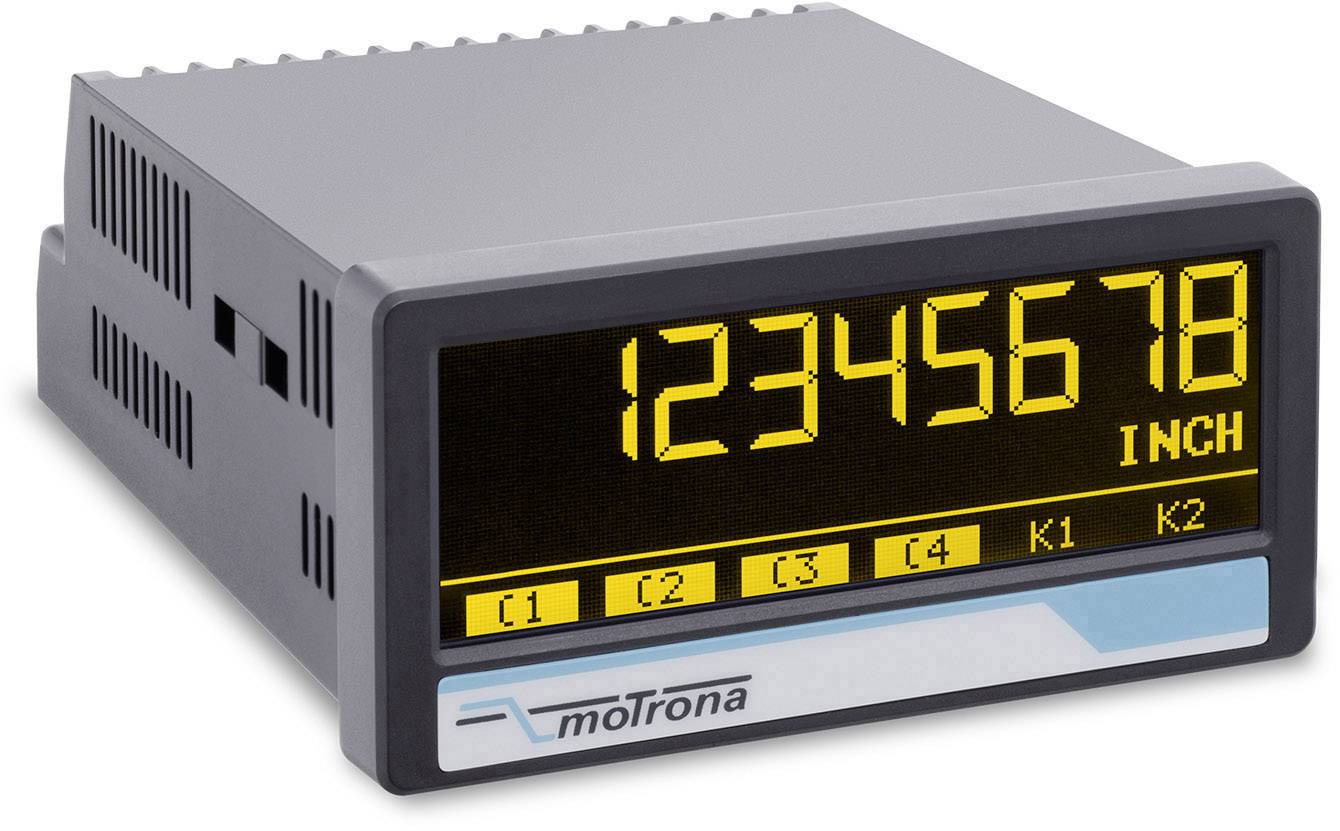

Motrona 6888.5150.AO.AC.RL Digital display

Overview

Digital display for incremental encoder or sensor signals
Tachometer
Speed-measuring device
Cycle Counters
Length counter
Run Time Display
Baking time display
Position indicator
Runtime measurement
Timers
Stopwatch
Resistive Touch Screen

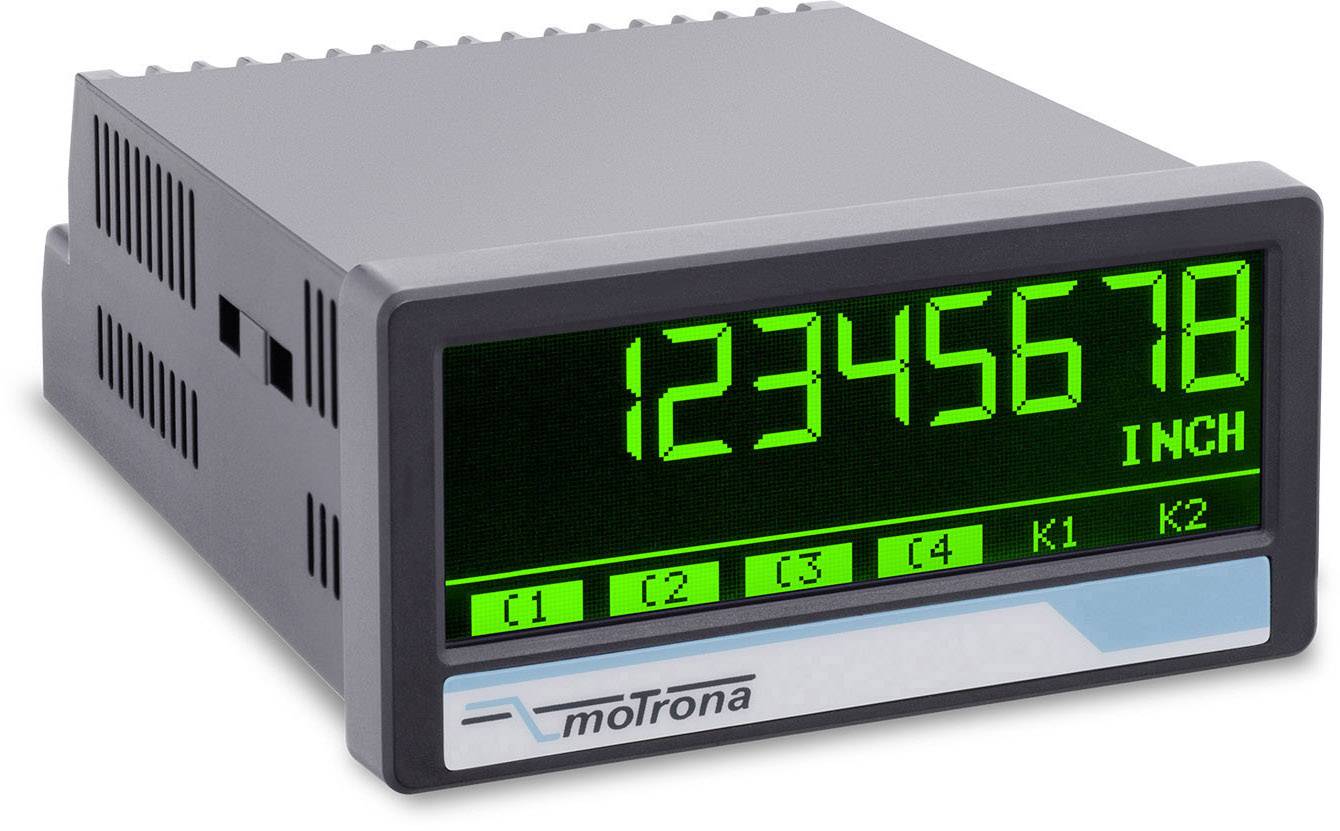

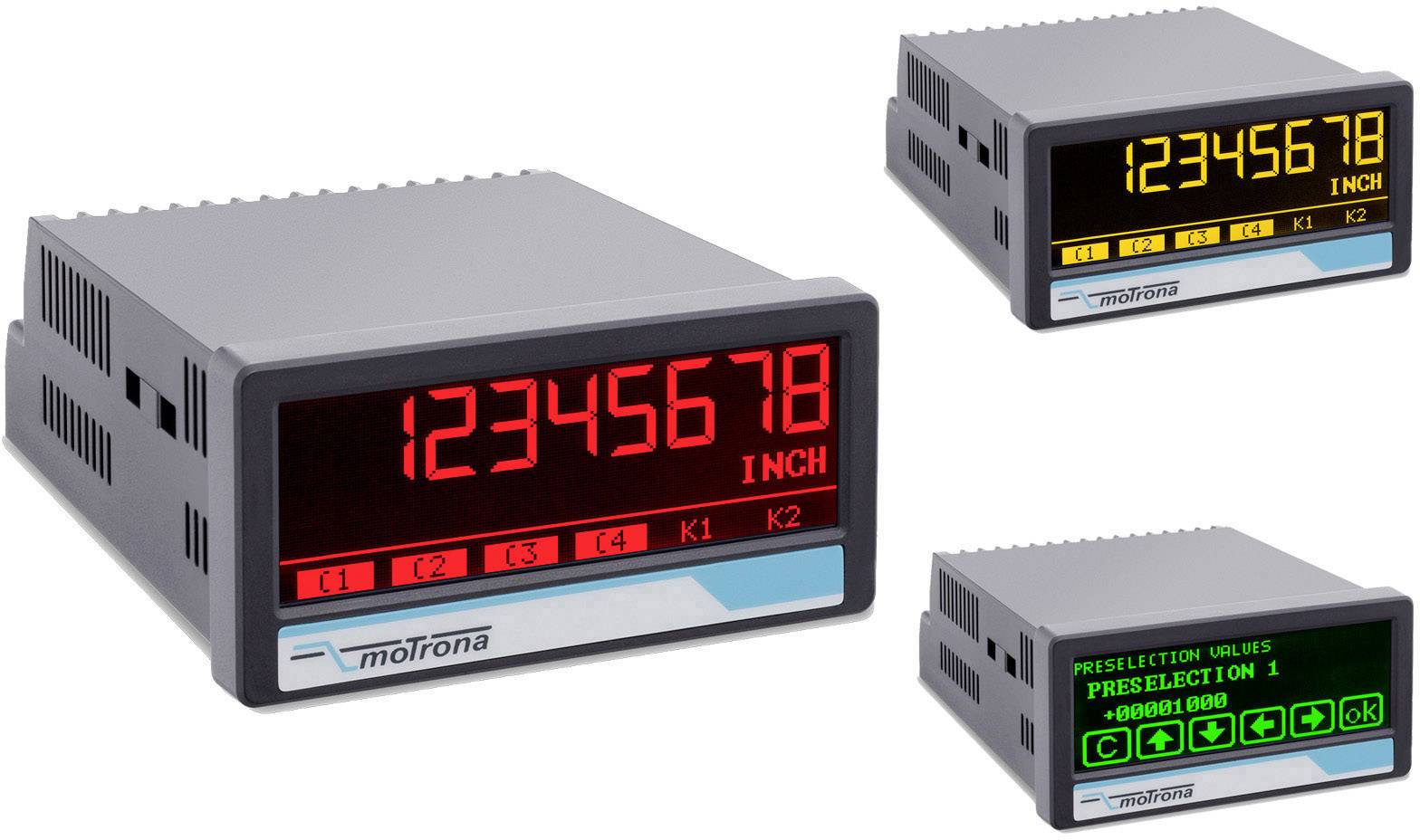

Multi-colored graphics display (red, green, yellow)
Adjustable scale factor
Switchable linearization with 24 nodes
Digital filter function
Actual value memory
Freely scalable analogue output +/-10 V/0-20mA/4-20mA
2 relay outputs
4 transistor switching outputs
Device supply 230VAC/24VDC

Description

Very easy to param powered end process display. The multi-function inputs allow the measurement of speed (frequency) or also the determination of a position (Counter) in one device. It can use both pulses of a proximity switch or a rotary pulse encoder can be processed: With the help of pulse evaluation factor can be assigned to any input value is a desired display value. Proportional to the display value is an analog signal for further more processing is available. With relay and transistor outputs for limit values and serial interface.

Characteristics

Robust plastic casing · Bright, high-contrast display with event-dependent color variants · Emulation of a 7-Segment display with symbols and units · Intuitive and easy parameterization with plain text and touch-screen · Proportional Analog Output · Relay outputs for the limit values · 4 Contol-Ausgange · Serial RS232 interface · Device supply 115.... 230VAC/24VDC

Delivery content

• Mounting material for panel installation
• Operating manual

Keywords

04053199551866, Motrona, 6888.5150.AO.AC.RL, voltage display, panel meter
