2 independently scalable analogue inputs 0-10V, 0-20mA, 4-20mA with calculation
Tare weight reading.
Adjustable Averaging
Switchable linearization with 24 nodes
Tota Lisa gate function
Reference voltage for potentiometer connection
Device supply 24 VDC

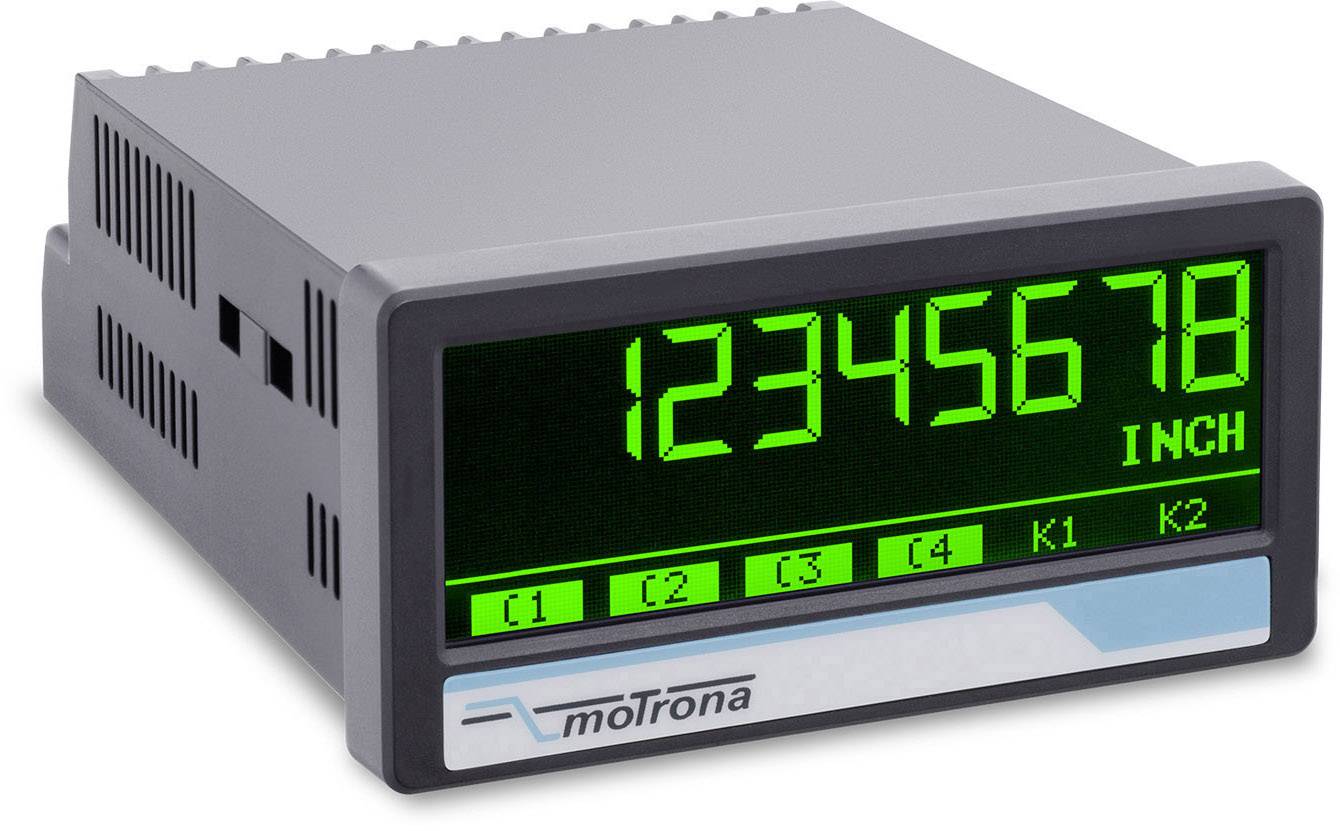

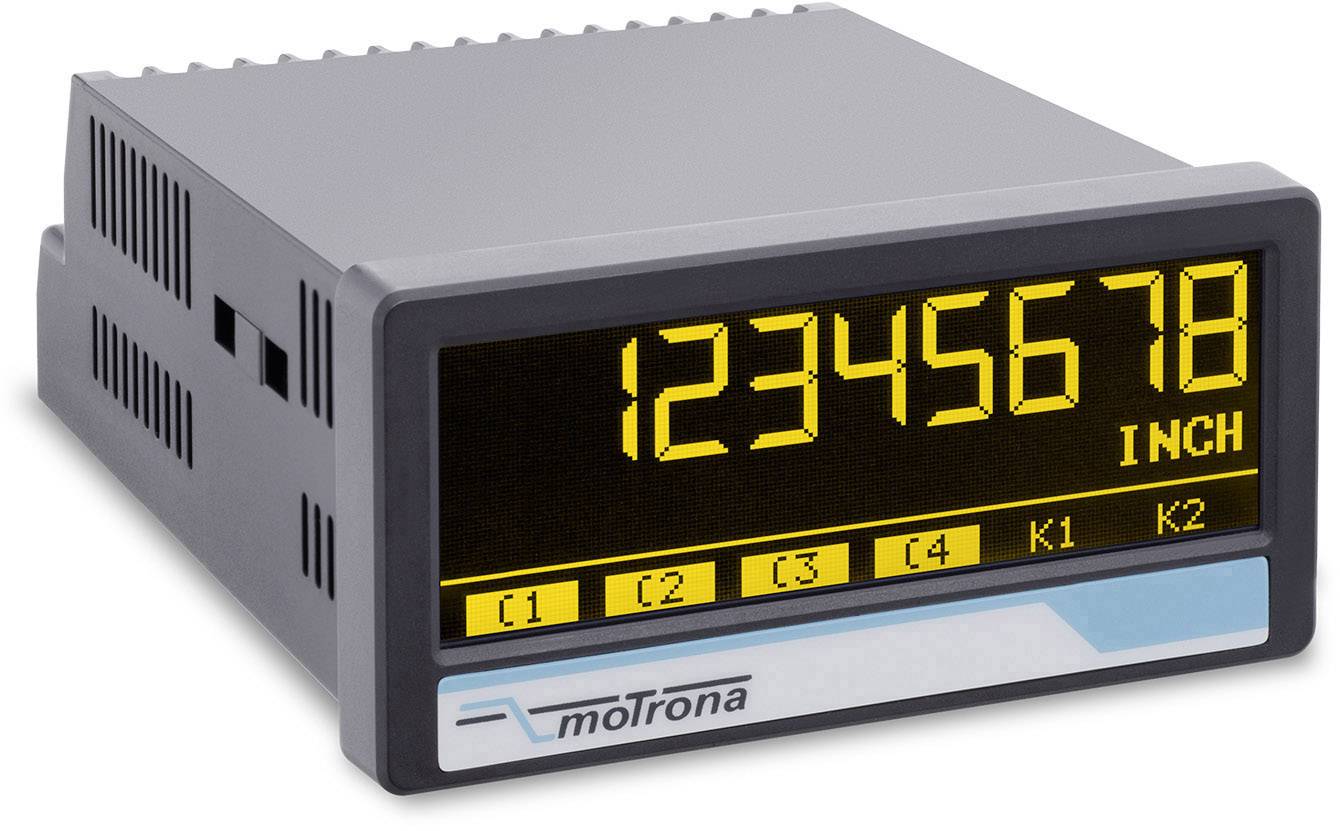

Very easy to param powered end process display. With the help of evaluation factor can be any analog input value is a desired display value can be assigned. The two analog inputs can be individually (channel A or channel B), or even after calculation A + B, A-B, A*B, A/B. Using the tare function changes the display at any time on a virtual zero point. The highly stable reference voltage output for connection of a linear potentiometer.

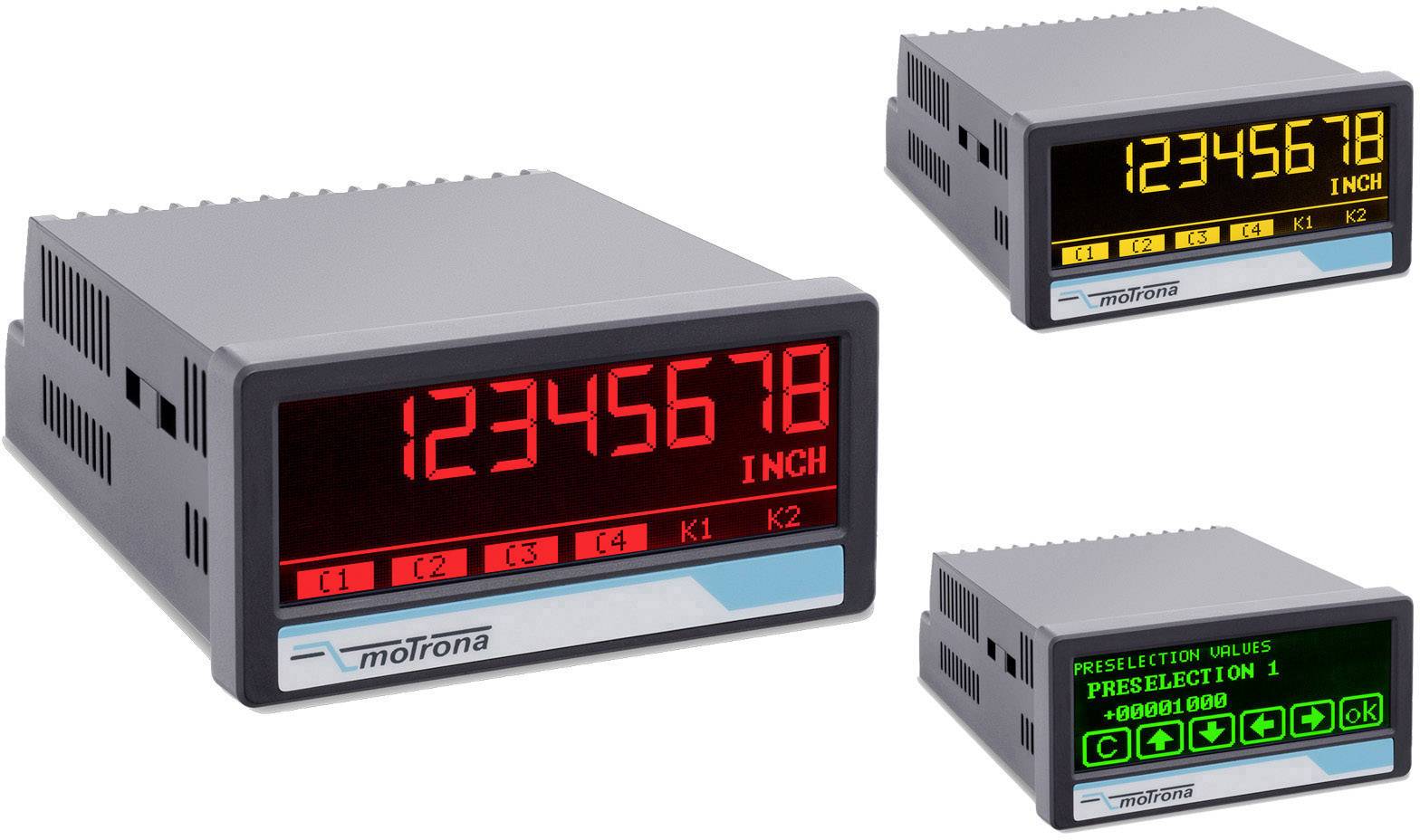

Robust plastic casing · Bright, high-contrast display with event-dependent color variants · Emulation of a 7-Segment display with symbols and units · Intuitive and easy parameterization with plain text and touch-screen · Device supply 24 VDC
04053199559558, Motrona, 6588.5150, Analogue Display, Analogue Indicator
