2 independantly scalable analogueue inputs 0-10V, 0-20mA, 4-20mA with calculation
Tare function
Adjustable mean value formation
Connectable linearization with 24 interpolation points
Totalizer function
Reference voltage for potentiometer connection
Device supply 24 VDC
Freely scalable analogueue output +/-10V/0-20mA/4-20mA
2 relay outputs
4 control outputs
Serial RS232 interface
Process display that is very easy to configure. By means of the evaluation factor, any analogue input value can be assigned to a desired display value. The two analogue inputs can be displayed individually (channel A or channel B), or also according to calculation A+B,A-B,A*B,A/B. The display can be set to a virtual zero point at any time using the tare function. The highly stable reference voltage output is used to connect a linear potentiometer. An analogue signal is provided for further processing in proportion to the display value. With relay and transistor outputs for limit values.

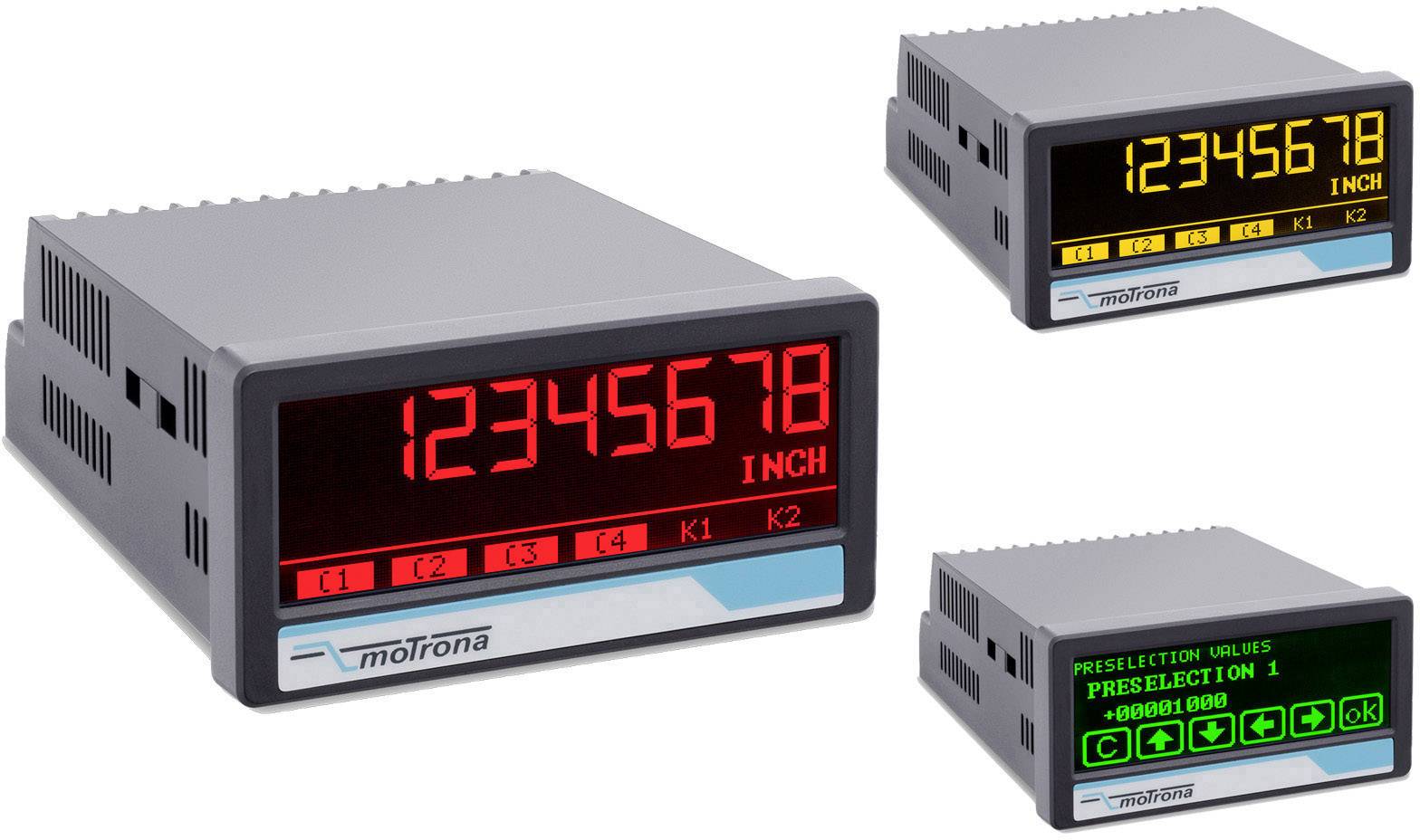

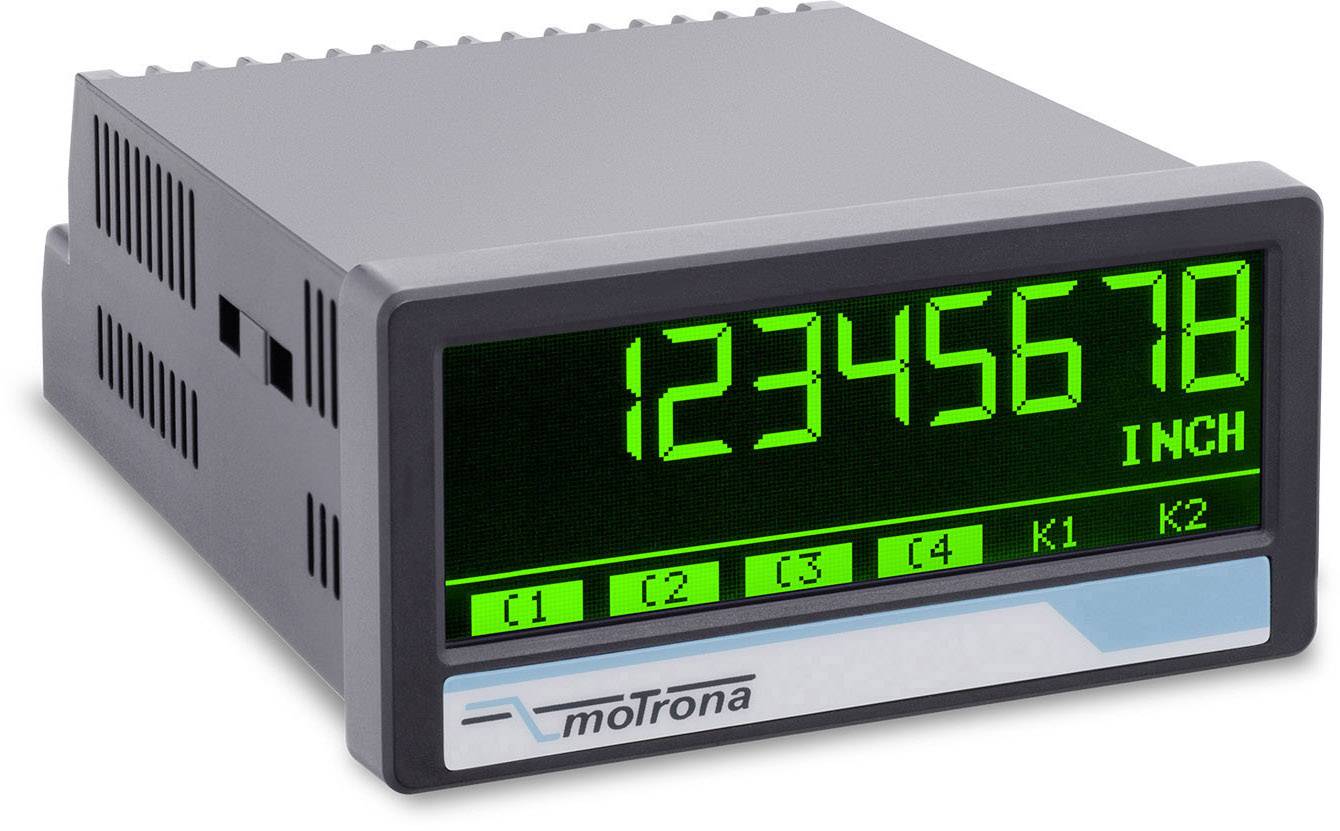

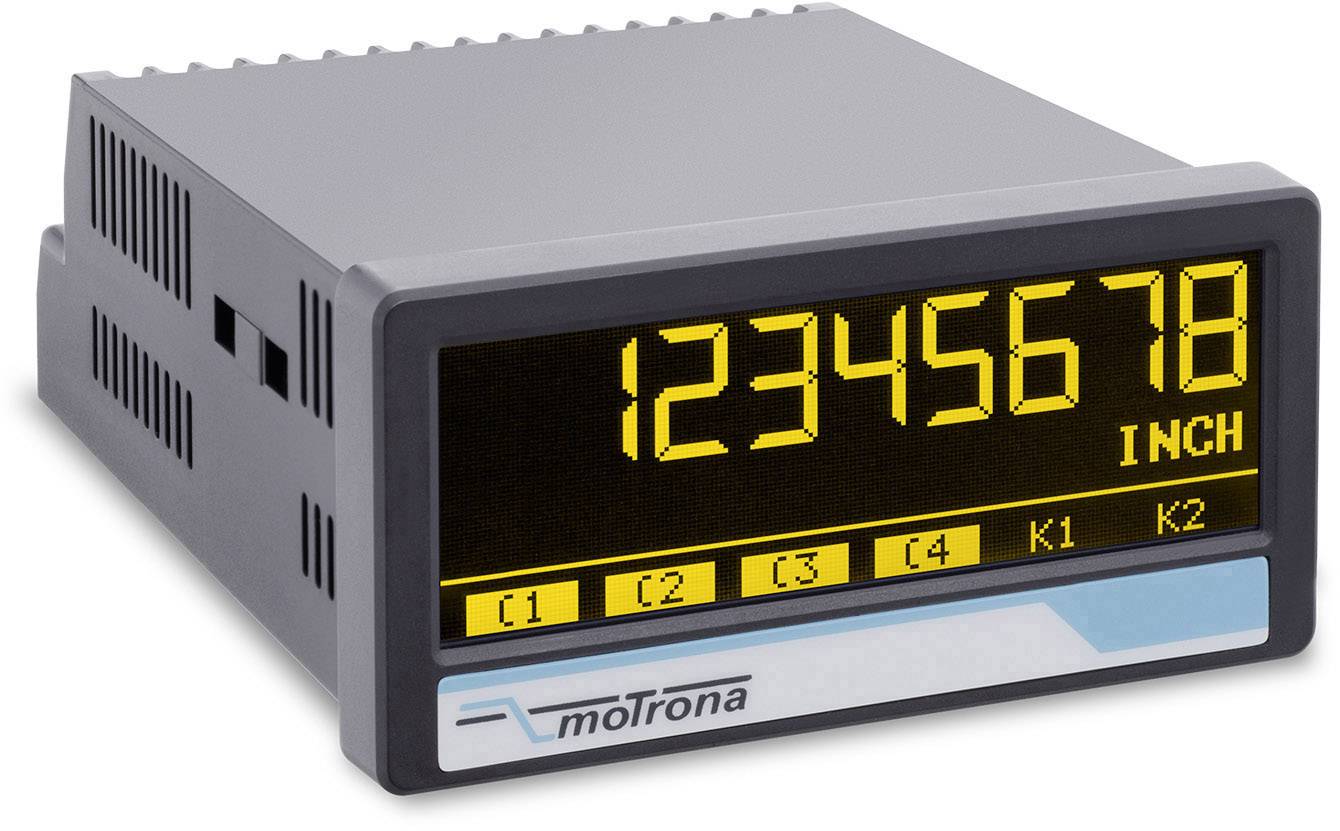

Robust plastic housing · Bright and high-contrast display with event-dependant color variants · Emulation of a 7-segment display with symbols and units · Intuitive and simple parameterization through plain text and touch screen · Device supply 24 VDC · Proportional analogue output · Relay and transistor outputs for the limit values · Serial RS232 interface
04053199559589, Motrona, 6588.5150.AO.RL, Analogue Display, Analogue Indicator
