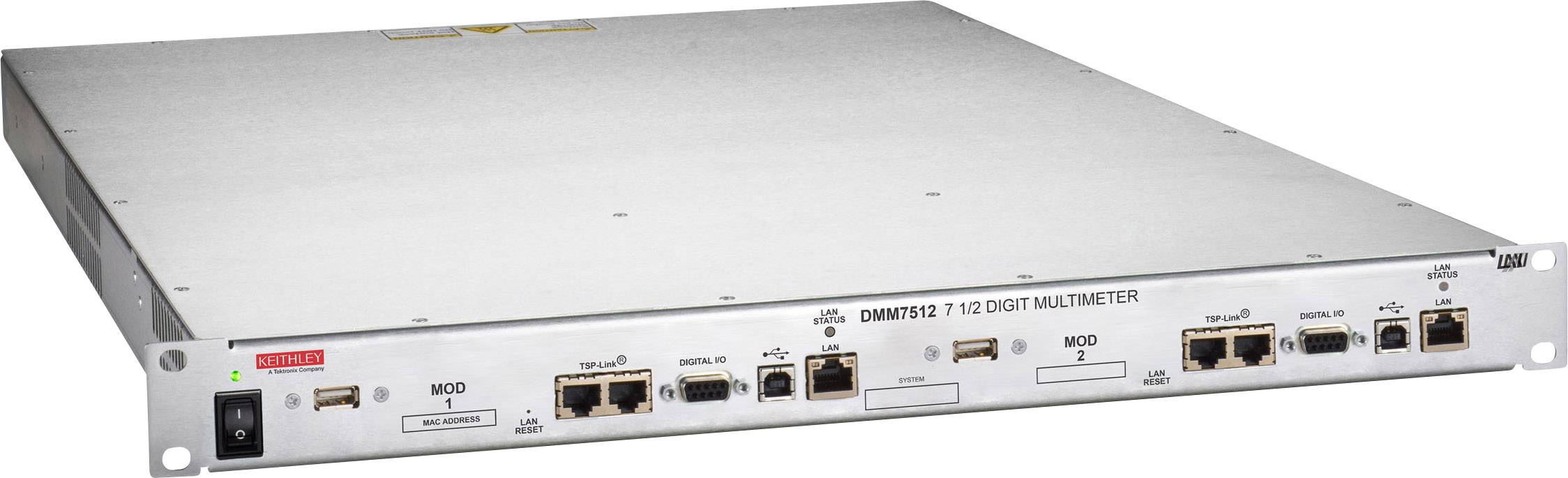

Tektronix DMM7512 Transistor tester

Overview

Two high-precision, 7½-digit DMMs in 1U

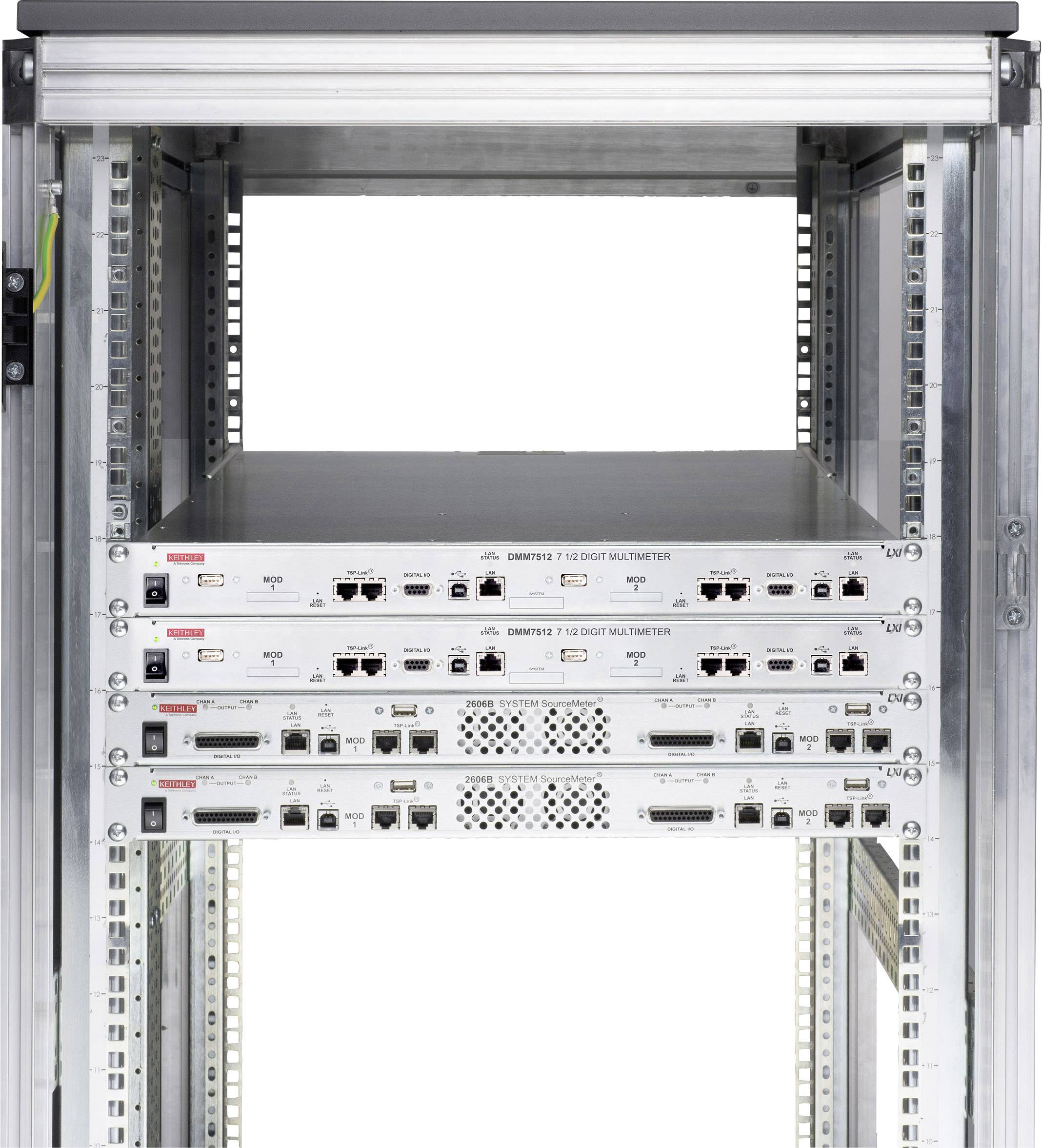

Rack space requirements minimized
You can capture waveforms or identify transients with two 1Msample/s 18-Bit-Digitalisierer
Save up to 27.5 million time-stamped measured values
Basic one-year dc voltage accuracy as low as possible than 14 ppm
10 nV, 0.1 PH and 1 pA sensitivity for the production of high-resolution low-level measurements such as measurements of the sleeping currents of portable devices
Highly accurate, low-resistance measurements with offset compensated ohm, four-conductor measurement and dry-run functions
Lower the life-cycle costs with a two-year calibration interval

Description

The DMM 7512 Dual Channel 7½-digit multimeter combines two fully functional, high-precision DMMs with high scanning speed in a compact 1U form factor. Each DMM has the same functionality and both are completely independent of each other. The DMMs have a wide range of features, including voltage digitization, current digitization and temperature measurements with resistance temperature sensor (RTDs), thermistors and thermocouples.

Characteristics

The auto-calibration improves the accuracy and stability through the minimization of temperature and time drift · USBTMC and LAN LXI compliant interfaces · Close synchronisation between the two DMMs with the help of TSP-Link® communication.

Delivery content

• 4 x test lead set
• 2x LAN cable, 40 cm
• 1 x shielded crossover cables with RJ-45 plug, 1.5 m
• 1x green and yellow earthing cable, 3.0 m
• 1U Rack Mount Kit
• Safety data sheet
• Information sheet
• User manual.
