Frequency range of 9 kHz to 6.2 GHz for a wide range of vonAnalyseanforderungen
Measuring range of +20 dBm to-160 dBm
Ambient, shock and vibration-specific cations according to MILSTD -28800 Class 2 for use in rough conditions
Detection bandwidth of 40 MHz concerning broadband vector analysis of modern standards
Minimum signal duration of 100 μs with 100% detection probability

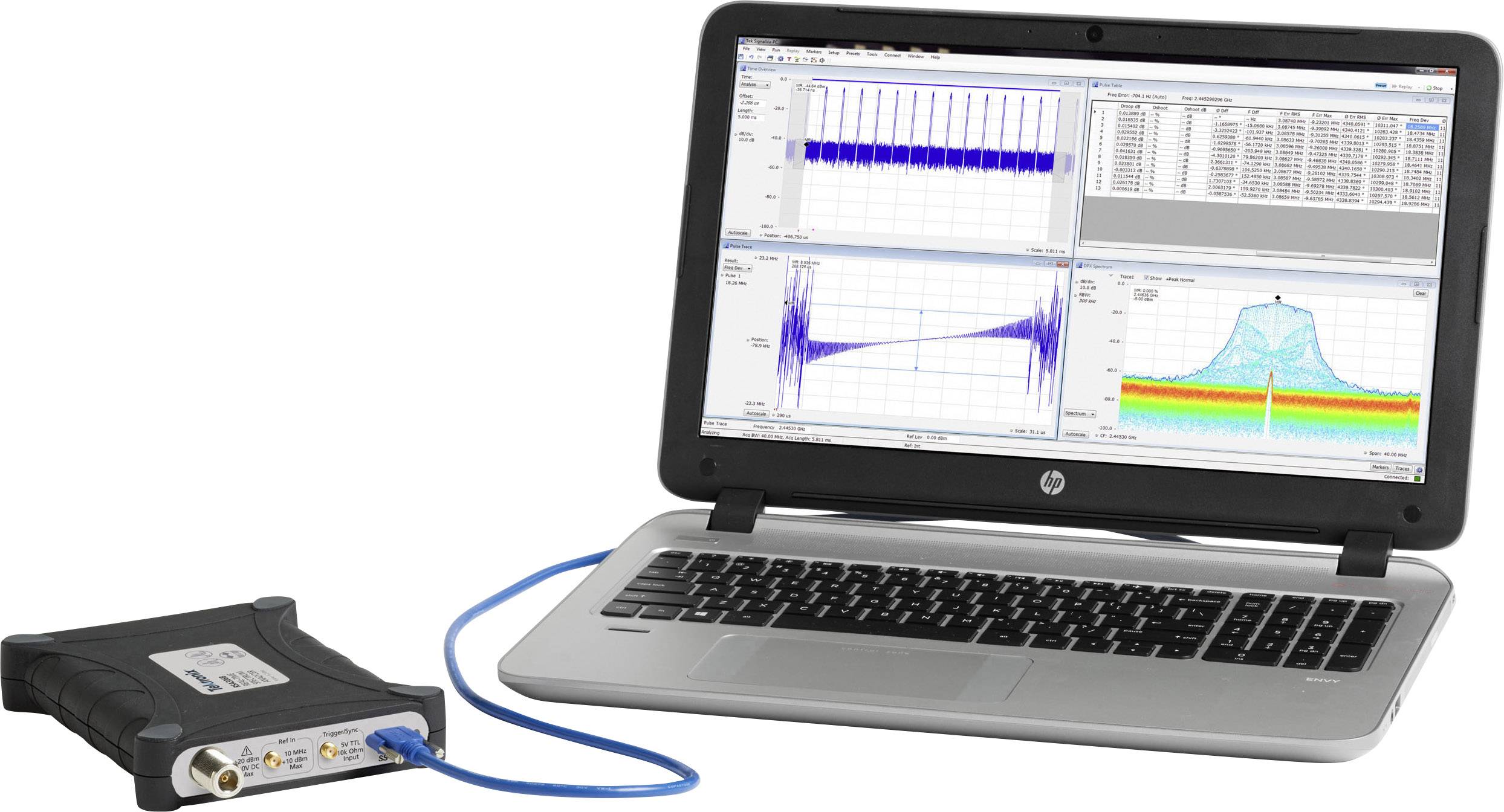

By use of the PC and the HF-signal analysis software SignalVu-PC™ from Tektronix can with the RSA 306 B functions such as real-time spectrum analysis, streaming detection and profound signal analysis for signals of 9 kHz to 6.2 GHz can be carried out - and all this in a cost-effective, easy to transportierbaren device, which is ideally suitable for use on site, in the network or for teaching and learning purposes.
Extensive spectrum analysis function through the software contained in the scope of SignalVu-PC™ from Tektronix
17 displays for spectrum and signal analysis measurements enable a variety of measurement types
Options for mapping, modulation analysis, support for WLAN, LTE and Bluetooth, Pulse Measurements, replay of recorded files, signal analysis and frequency as well as phase no oscillation behavior
Spectrum/Spektrogrammanzeige in real-time to minimize the amount of time required for the transient search and fault detection
Included in the scope of the programming interface (API) for Microsoft Windows environments
MATLAB device driver for use with the instrument control toolbox
Streaming collection for the recording of long-term events
For the RSA 306 B is a PC with a 64-bit operating system Windows 7, Windows 8/8.1 or Windows 10 is necessary. A USB 3.0 port is required for the operation of the RSA 306 B. For the installation of SignalVu-PC, a 8 GB RAM and 20GB of free storage space is required. To get the full performance of the real-time functions of the RSA 306 B is an Intel Processor Core i7 of the 4. Generation is required. The use of a less powerful processor is possible, but with reduced performance of the real-time functions. For the storage of streaming data requires a PC with a drive, the storage rates of 300 MB/s for streaming data.
