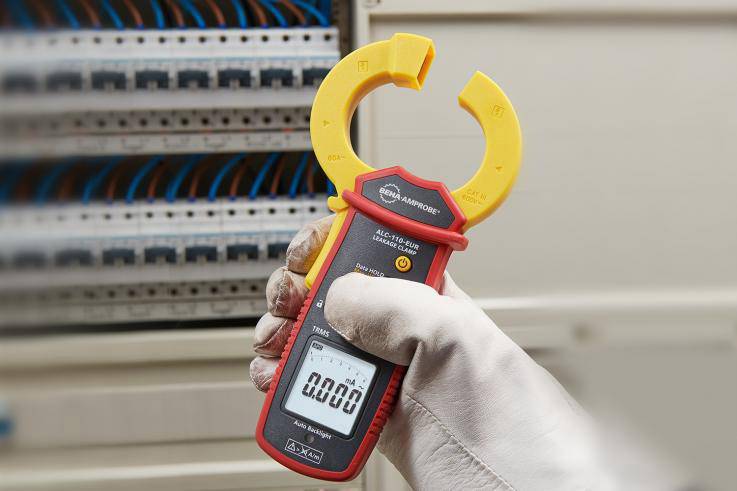

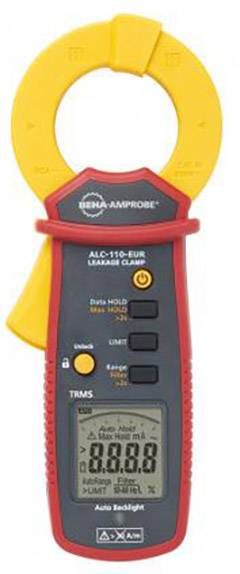

Beha Amprobe ALC-110-EUR Clamp meter Digital CAT III 600 V Display (counts): 6000

Overview

CAT III 600 V
Real effective value measurements for best accuracy when measuring complex, non-sinusoidal signals

Description

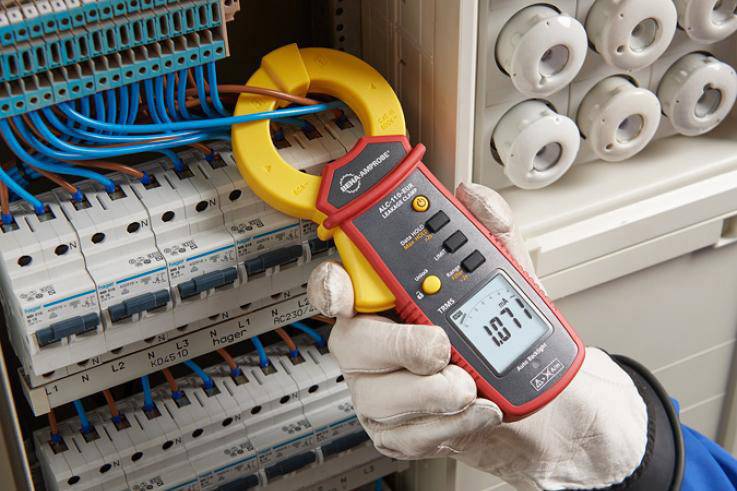

The ALC-110-EUR leakage current clamp helps the user to detect, document and compare leakage current readings over time to avoid unplanned downtime and to identify sporadic RCD/Fi tripping without downtime or shutdown of equipment. The ALC-110-EUR is designed for industrial applications for leakage current testing in plants and also for the device testing for earthing conductor current measurement and differential current measurement according to DIN VDE 0701-0702.

Corresponds to the requirements for clamp-on ammeters for measurement:
- of leakage currents in electrical systems according to VDE 0413-13, IEC/EN61557-13
- for earthing current measurement and differential current measurement on devices according to DIN VDE 0701-0702 (the filter corresponds to the requirements according to VDE 0413-16, IEC/EN 61557-16)

Characteristics

Low interference from external low-frequency magnetic fields: ≤ 30 A/m, application class 2 @ IN 3.5 mA ... 600 mA
Real effective value measurements for best accuracy when measuring complex, non-sinusoidal signals
Mechanical locking of the pliers; jaw opening 30 mm
Best resolution of 0.001 mA, measurement up to 60 A.
Selectable filter function to suppress interference
Selectable filters: Low-pass filter function for testing electrical devices (according to DIN VDE 0701-0702, filter according to VDE 0413-16, IEC/EN 61557-16)
Wide frequency range from 15 Hz to 1 kHz, making it suitable for a wide range of applications, including industrial and railway applications
Selectable limit values: 0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA
Maximum value memory and measured value memory
Auto power off to extend battery life
Backlit display; backlight auto-off for extended battery life

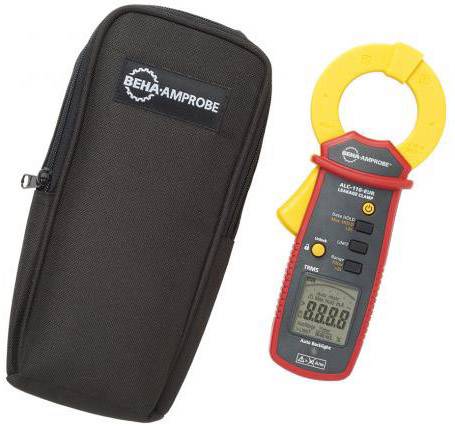

Delivery content

• ALC-110-EUR
• Bag
• Batteries
