Arduino MKR Proto Large Shield Development board

  • item model number: R806871
A blue circuit board with a microcontroller, USB port and multiple connectors. Suitable for electronic projects and prototyping.

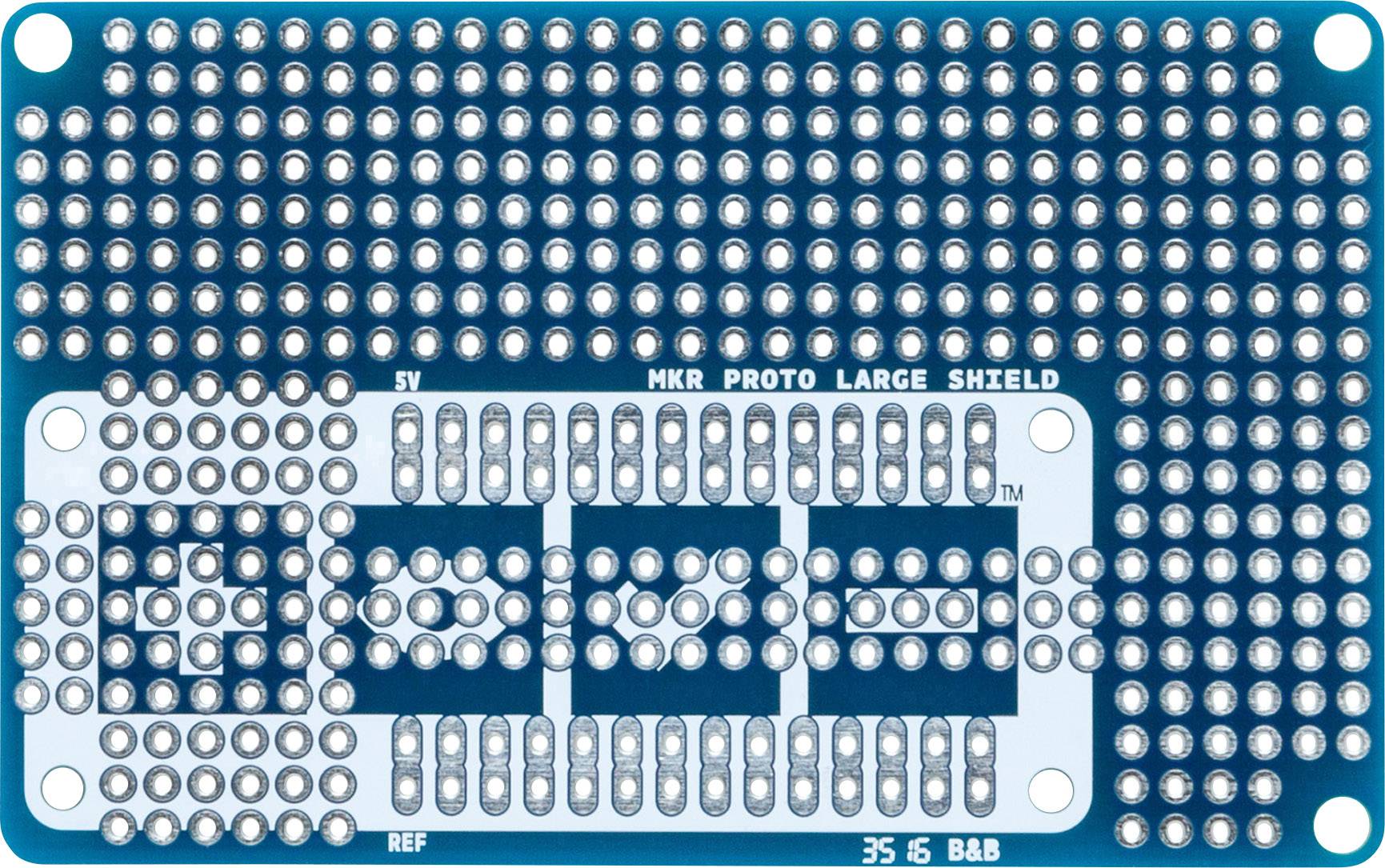

Blue printed circuit board with numerous soldering points; marked with 'MKR Proto Large Shield'. Suitable for Arduino prototyping.

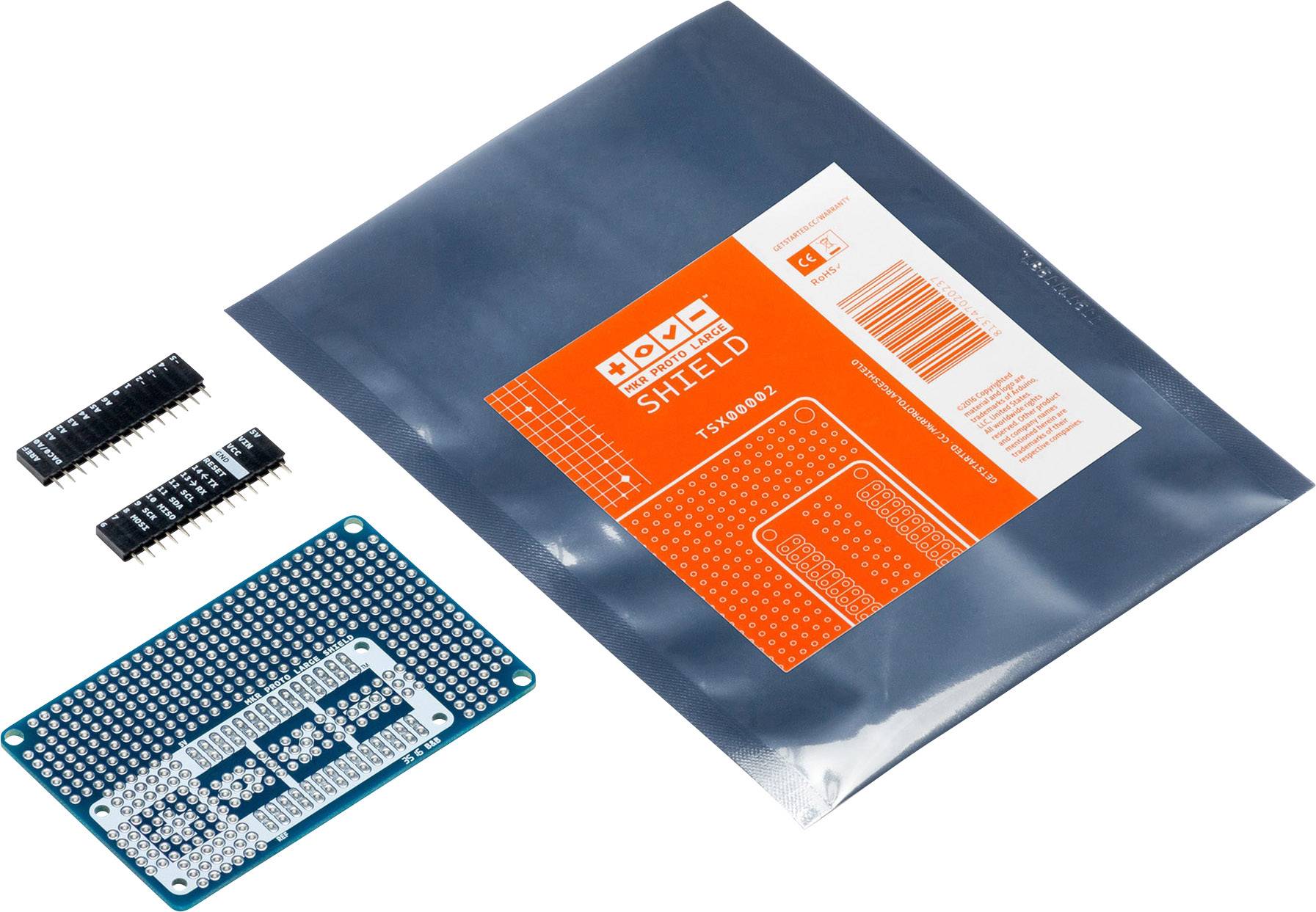

A kit consisting of a microchip, a blue circuit board, and a packaged component with an orange label.

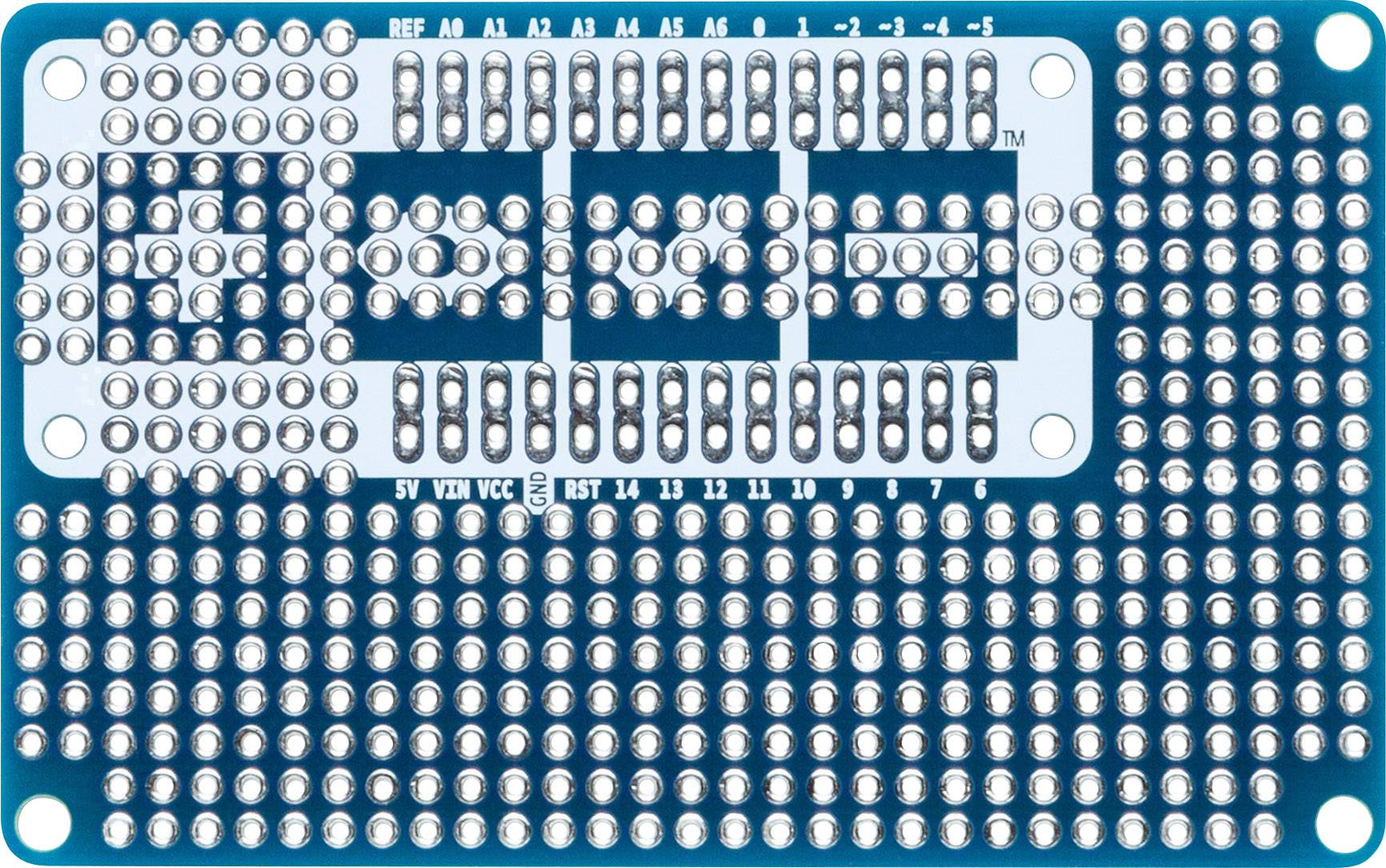

A blue printed circuit board with numerous slots for components and connections. It features markings for various pins.

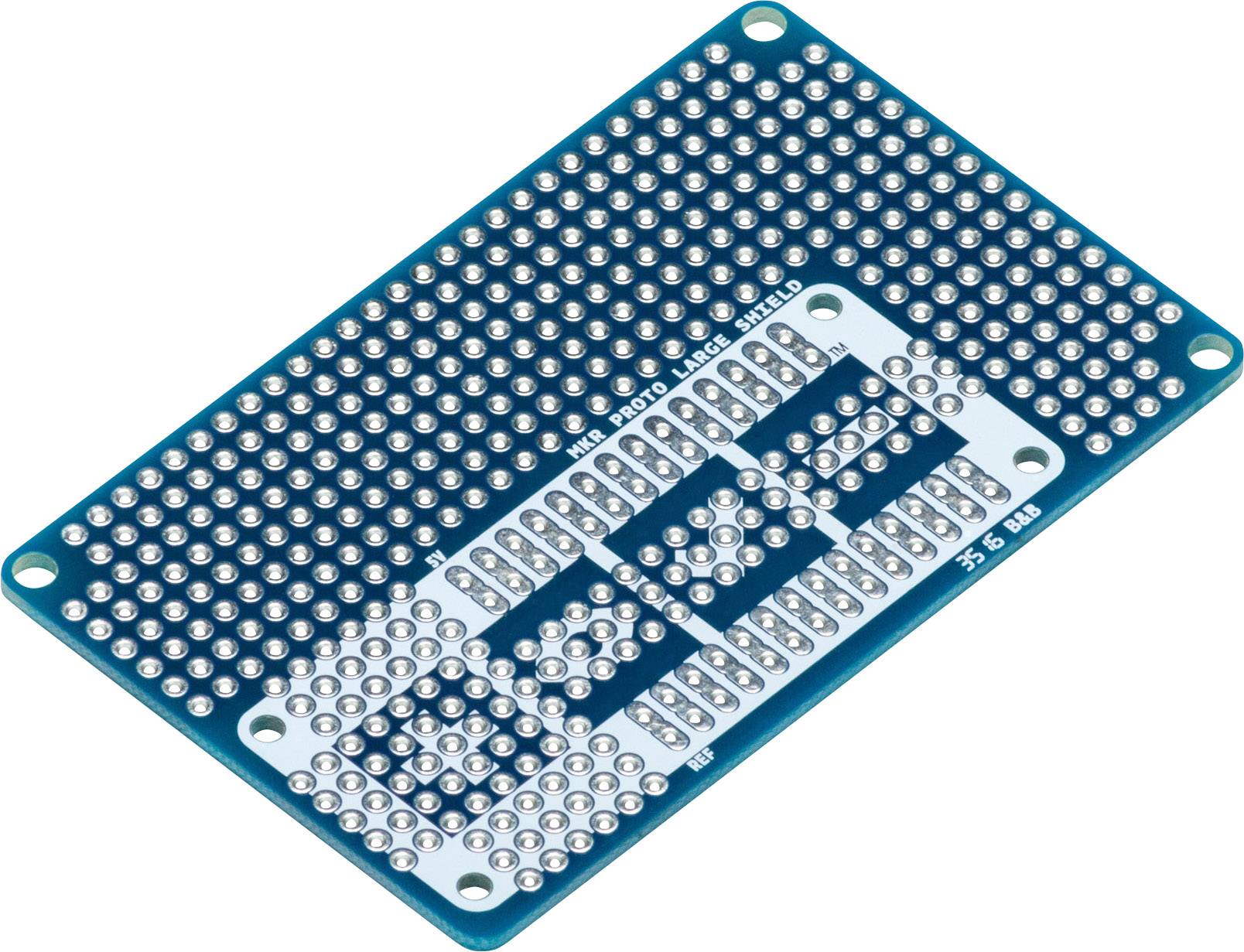

A rectangular, blue breadboard with numerous small holes and copper connections for electronic circuits.
CHF 9.85
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Arduino MKR Proto Large Shield Development board
CHF 9.85
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 9.75 1,0 % savings
from 5 piece : CHF 9.65 2,0 % savings
from 10 piece : CHF 9.55 3,0 % savings

Product description

Overview

Need more space for your MKR Proto Shield?

Description

as MKR Proto Large Shield fits on your MKR board with the supplied female/male headers and allows you to fix it anywhere with the mounting holes. This shielding offers a larger prototyping area with more than 300 solder joints and makes the connection of components with your board particularly easy thanks to the inscription, which shows the position of the MKR PCB pins.

Characteristics

Digital I/O pins 21
PWM Digital I/O pins depending on the card
Analogue input pins 7
analogue output pins depending on the card
DC per I/O pin depending on the card
DC for 3.3V pin depending on the board
DC for 5V pin depending on the board
Length 80 mm
Width 50 mm
Weight 19 gr.

Delivery content

  • Arduino® Shield MKR Proto Large

Keywords

07630049200753, 00813747020237, Arduino, TSX00002, MKR Proto Large Shield

A blue circuit board with a microcontroller, USB port and multiple connectors. Suitable for electronic projects and prototyping.
Blue printed circuit board with numerous soldering points; marked with 'MKR Proto Large Shield'. Suitable for Arduino prototyping.
A kit consisting of a microchip, a blue circuit board, and a packaged component with an orange label.
A blue printed circuit board with numerous slots for components and connections. It features markings for various pins.
