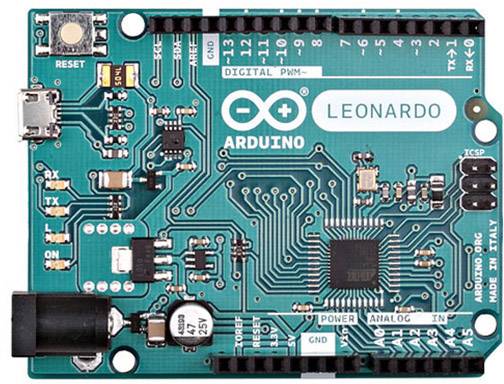

The Arduino Leonardo is a microcontroller board based on the ATmega32u4 (data sheet). It has 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analogueue inputs), a 16 MHz crystal oscillator, a micro USB connection, a power supply socket, an ICSP header and a reset button. It contains everything was necessary to support the microcontroller; simply connect it to a computer with a USB cable or operate it with an AC/DC adapter or a battery to get started.
The Arduino Leonardo is a microcontroller board based on the ATmega32u4 (data sheet). It has 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analogueue inputs), a 16 MHz crystal oscillator, a micro USB connection, a power supply socket, an ICSP header and a reset button. It contains everything was necessary to support the microcontroller; simply connect it to a computer with a USB cable or operate it with an AC/DC adapter or a battery to get started.
Microcontroller ATmega32u4
Operating voltage 5V
Input voltage (recommended) 7-12V
Input voltage (limit values) 6-20V
Digital I/O pins 20
PWM channels 7
analogue input channels 12
DC per I/O pin 40 mA
DC for 3.3V pin 50 mA
Flash memory 32 KB (ATmega32u4) of which 4 KB from the bootloader uses
SRAM 2.5 KB (ATmega32u4)
EEPROM 1 KB (ATmega32u4)
clock frequency 16 MHz
length 68.6 mm
Width 53.3 mm
Weight 20 g
