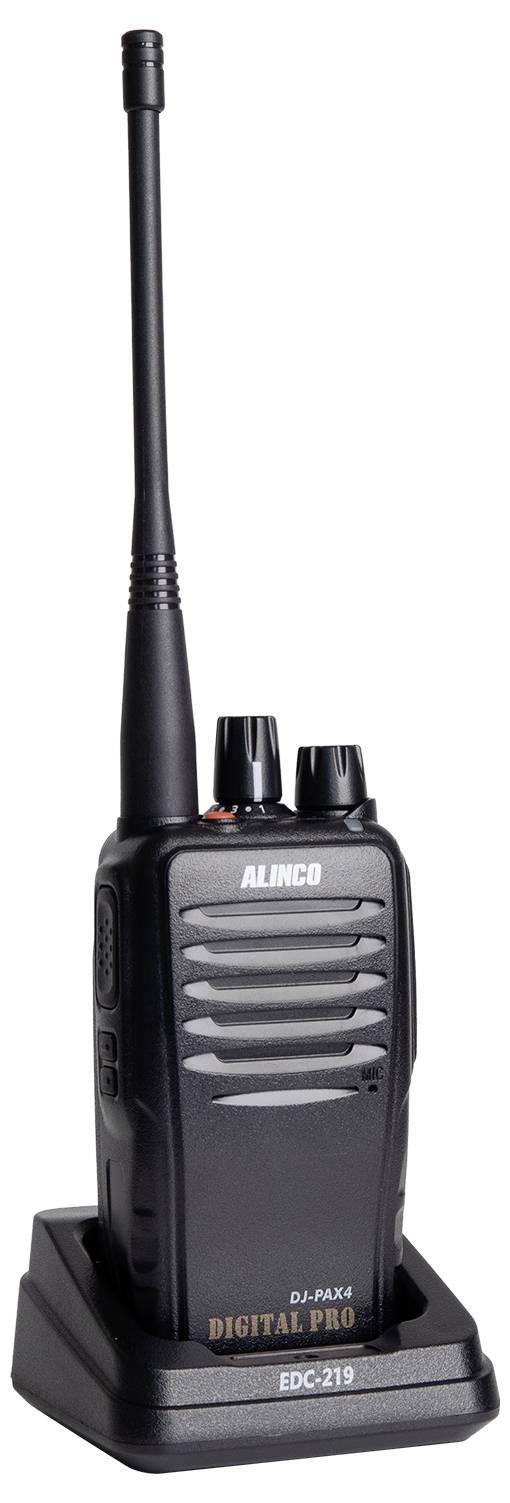

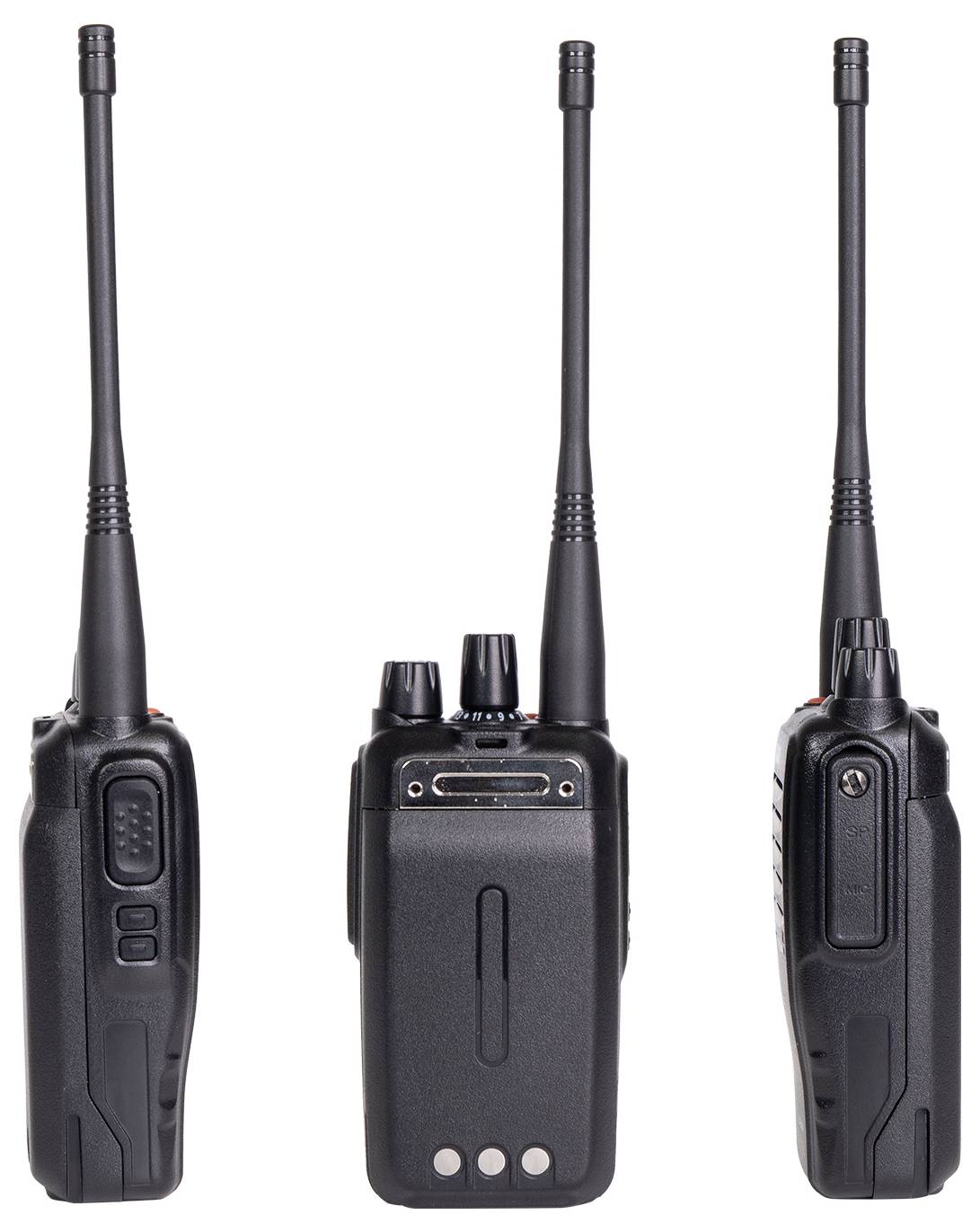

Alinco DJ PAX-4 3422 PMR handheld transceiver

Overview

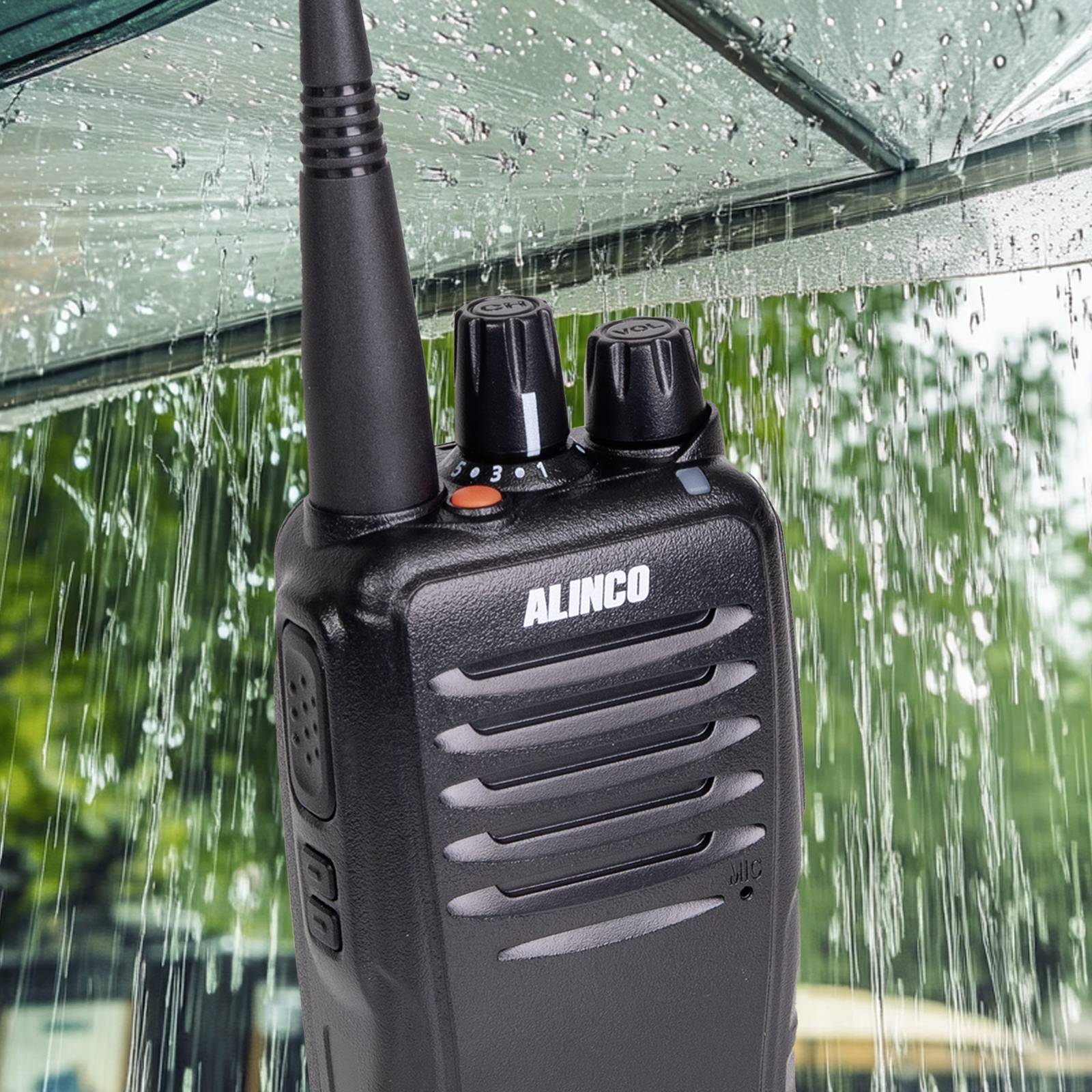

IP-67 housing (highest resistance to water & dust)

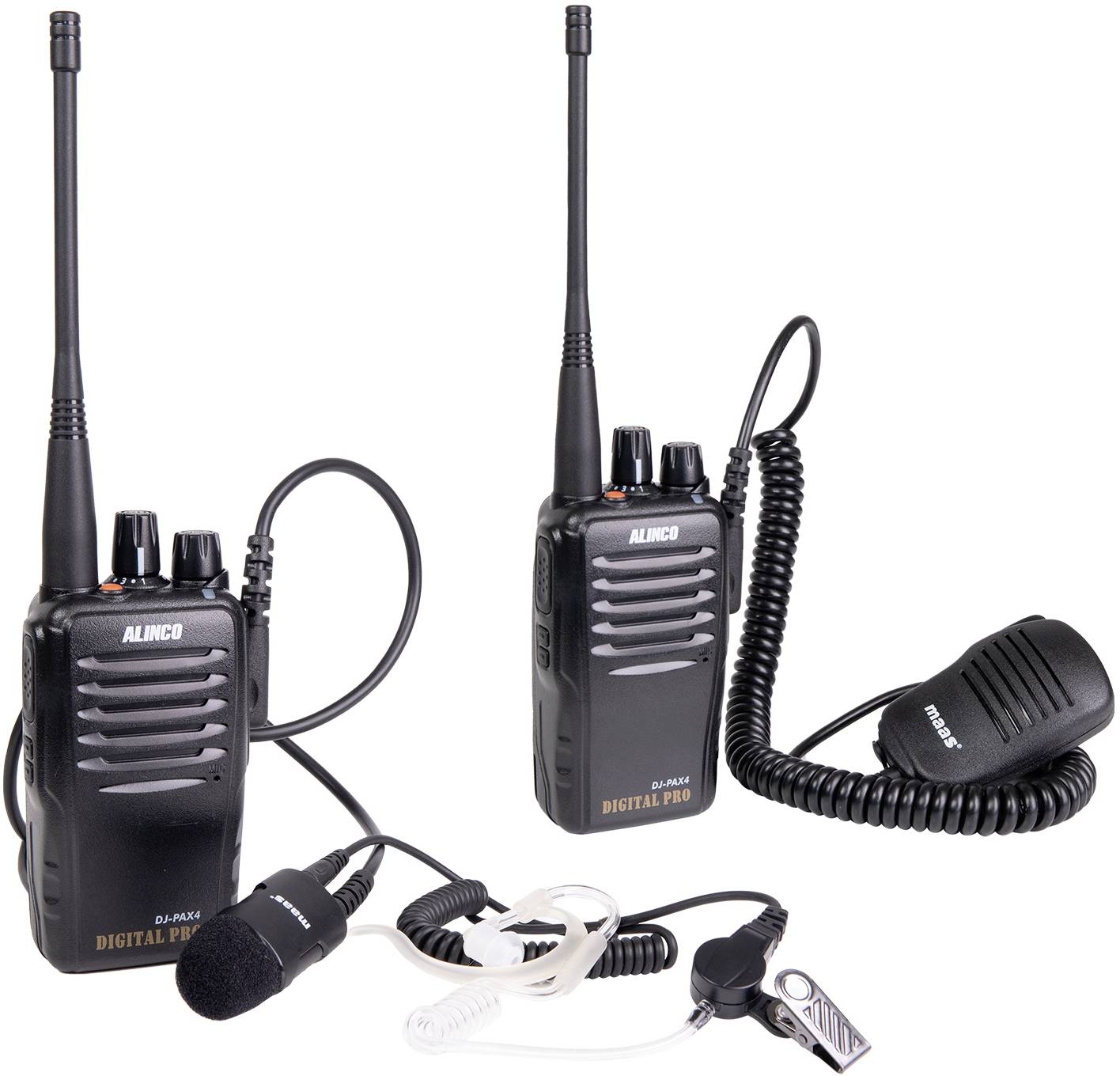

2-pin Kenwood connection socket for external audio accessories
Clear and loud playback through a 1 watt loudspeaker

Characteristics

Fully compatible e.g. with Kenwood TK-3401D & Kenwood TK-3601D in DIGITAL mode · Fully compatible with Kenwood TK-3301/ 3401/ 3501 / 3601/ PKT-23 and Maas PT series devices in ANALOGUEUE mode · Via optional software, of course, it can also be adapted to PMR-446 radios of any other manufacturer · 2-pin Kenwood connection socket for external audio accessories suitable for the use of Kenwood and Maas KEP..K audio accessories · IP-67 housing (highest resistance to water & dust) · Immersion in fresh water up to 1 meter depth of water is possible for a maximum of 30 minutes without damage (headset socket must be closed) · MIL-810G housing (absolutely resistant to shock and vibration) · Clear and loud playback through a 1 watt loudspeaker · AMBE+2 (TM) Vocoder · Pre-programd digital channels (all of course approved in Germany & Europe) · Analogueue channels pre-programd · A total of 80 channels are available for free programming (within the PMR-446 frequency range) · The memory of the device is programd in 5 zones with 16 channels each · CTCSS/ DCS decoder in analogueue mode · simple operation · Large speaker channel selection dial · Monitor function (opening the squelch by pressing a button) · Battery detect - battery protection circuit · Channel/function announcement in English (can also be switched off with PC software) ·

The following features can only be programd with optional software (requires Alinco ERW-22 programming cable - can be purchased as an option):
3 programmable function keys each with 2 functions (long pressure, short pressure) · Work Alone - Single-user protection · SOS Emergency - emergency call button · VOX hands-free automatic voice transmission · Scan - channel search · Nuisance Channel Delete - assigned channel fade-out · Encrypt - voice lock for increased protection against eavesdropping · Priority Scan - Preferred channel monitoring · Key Lock - Keyboard Lock .

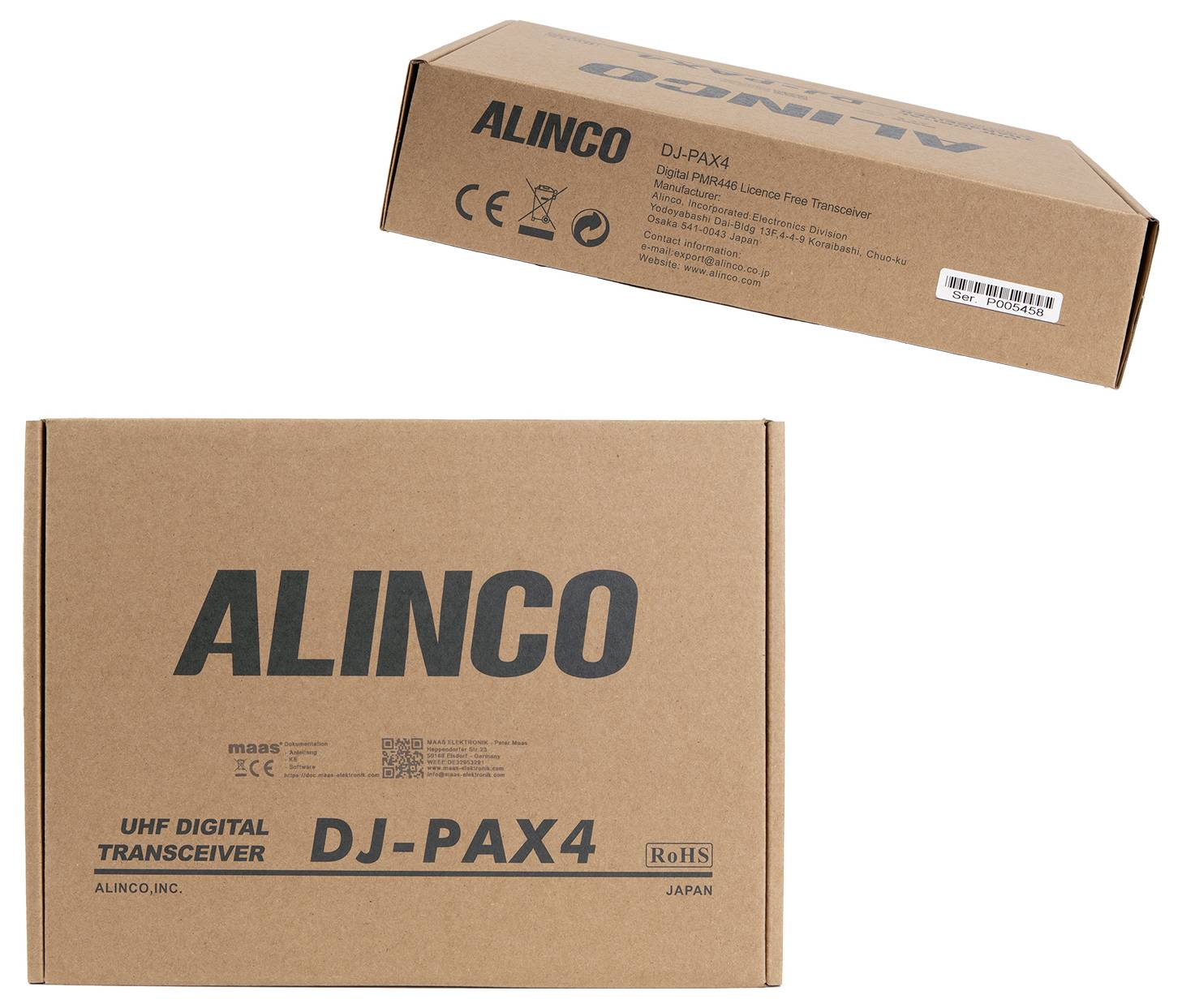

Delivery content

• Alinco DJ-PAX4 handheld radio
• Battery pack EBP-101 (Li-Ion/ 7.4 Volt/ 1800 mAh)
• 230 Volt table charger (charger) antenna
• Belt clip EBC-51 & carrying strap
• User manual
