Schabus Wireless discharged air control Komfortpaket FTX 519+FDS 200

Overview

Radio distance and battery monitoring

Description

By using the radio temperature monitor FTX 519 on the furnace tube and remote transmitter near the furnace, an exhaust system can only be used if the oven or combustion site is not running and is cold or a window has been opened. A transmitter, connected to 1 meter long silicone cable at the temperature monitor, monitors whether the oven is burning or off and transmits this information to the receiver via radio. This only releases the power supply for the connected device when the oven is off. Once the oven is on, the exhaust system can continue to operate with an open window. For optimum radio transmission, the transmitter of the FTX 519 is pulled out of the hot oven area with a silicone cable and mounted upright on a wall in the direction of the receiver. A high-capacity lithium battery ensures a long service life.

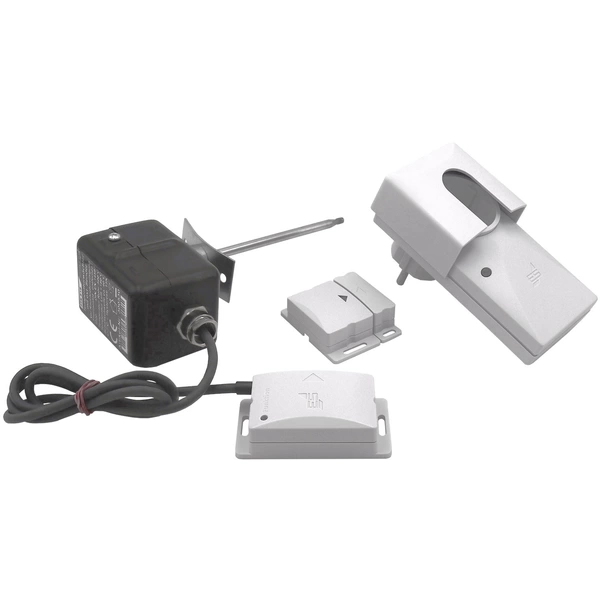

Delivery content

• 1x adapter receiver FDS 200
• 1x FDS 200 window contact transmitter
• 1x window contact magnet
• 4x distance plates for magnet
• 1x temperature monitor, tested according to DIN EN 14597
• 1x FTX transmitter with 1 m silicone cable
• 1x Battery CR2 3V Longlife
• 1x battery CR2032 3V
• Fitting Material

Keywords

04044764004009, Schabus, 300549, Komfortpaket FTX 519+FDS 200, fan, extractor fan
