MAAS Elektronik 3298 CRT MICRON CB radio

Overview

Compact amateur Duoband mobile phone device
Colored TFT display
Output power 5/15 and 25 Watt switchable

Description

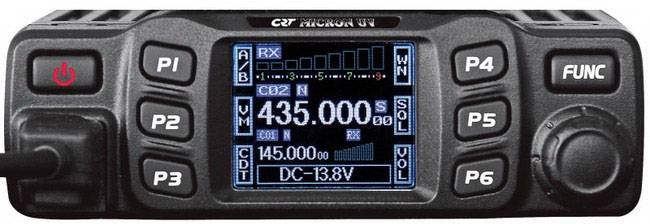

CRT-Micron is a very compact amateur radio with all important functions. The color TFT display and the very compact design are particularly striking. The CRT Micron U/V offers three switchable output power (5/15/25 Watt) in the VHF and UHF range. Operation is performed via the left and right function keys next to the display.

Characteristics

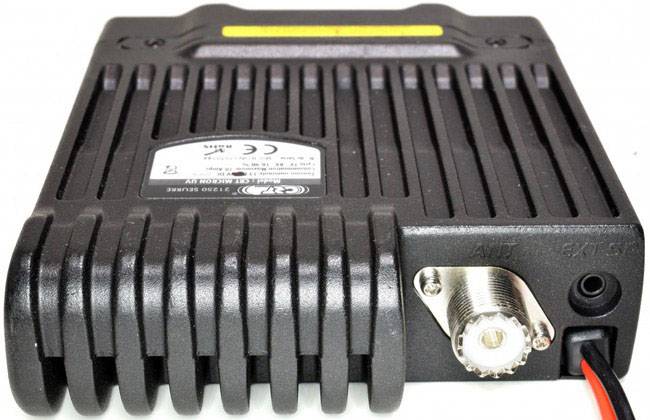

FM (TX/RX) MODE · Channel grid 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 kHz · Memory channels 200 · Channel spacing 12.5, 20 and 25 kHz switchable · Illuminated buttons · Easy to read TFT display (multi-mode) with display frequency, reception signal, output power, operating voltage, function displays and much more. · Operating mode FM (wide and narrow switchable) · Simultaneous operation of VHF/UHF, UHF/VHF, UHF/UHF or VHF/VHF possible · Switchable ringtone frequencies 1000 Hz/1450 Hz/1750 Hz/2100 Hz · Switchable relay storage +/- with selectable differential frequency · CTCSS and DCS de- and encoder, with 52 CTCSS and 1024 DCS tones · DTMF transmission function · Dual-channel monitoring (dual watch) · Transmission time limit can be set/switched off · CTCSS and DCS search function · Search ( Scan) · Reverse Function · Programmable via optional PC software/USB cable (not required) · Western microphone connection · Antenna connection PL-259 socket · Power supply 13.8 V DC (max. 10 - 12 A)

Information

Before using ham radio devices you need to apply for an amateur radio licence (granted by your government).

Delivery content

• Includes DTMF hand microphone with loudspeaker, band display and programmable function keys
• Microphone holder
• DC cable
• User manual.
