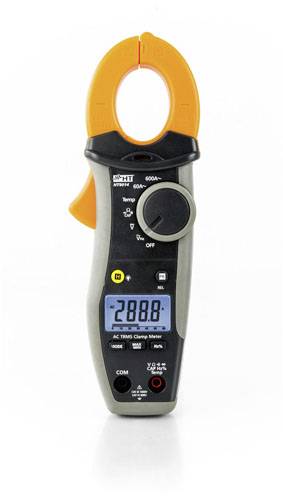

HT Instruments HT9014 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

Overview

Measurements in TRMS
DC/AC voltage
AC current
Resistance/continuity test
Frequency
“Voltage” sensor
Diode testing
Temperature with K-type sensor
Capacitance
Duty cycle
Automatic range selection
Data HOLD
MAX/MIN
Peak function ( 10 ms)
Relative measurement
Bar graph
Backlit display
Auto power OFF.

Description

The professional clip-on ammeter HT9014 was developed to measure alternating currents up to 600 A in the overvoltage category CAT IV 600 V or CAT III 1000 V and conforms to the specifications of IEC/EN 61010-1. This current clamp is equipped with a large display and an Auto Power OFF function to protect the batteries. The model HT9014 (TrueRMS measuring) is equipped with a 6000-point resolution display and offers a variety of measuring functions with a wide measuring range.

Delivery content

• Test lead pair
• K-type wire probe
• adapter
• Battery
• Bag
• User manual.
