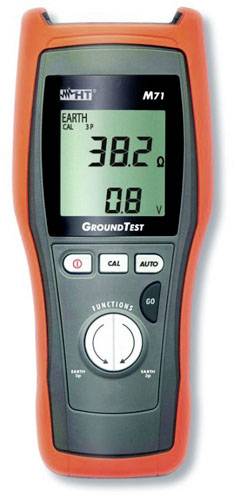

HT Instruments M71 Earth ground meter

Overview

2-point earthing measurement
3-point earthing measurement
Measurement range 0.01 Ω - 50 kΩ
Interference voltage suppression
Calibration of test leads
Safety EN 61010-1
Overvoltage category CAT III 240 V
Power supply 4 x 1.5 V AA batteries
Dimensions (H x W x D) 240 x 100 x 45 mm
Weight (incl. batteries) 630 g

Description

The M71 is a compact earthing measuring device with ergonomic design for measuring the earthing resistance with the 2- and 3-conductor measurement according to VDE 0413 Part 5. Both meters have an electronic function selector switch for quick and reliable testing.

Delivery content

• 3 Measuring leads
• 3 alligator clips and 2 earth spikes KIT007
• Storage bag SP-6085
• Calibration protocol ISO 9000
• User manual.
