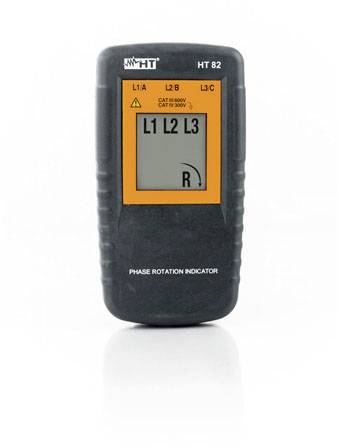

HT Instruments HT82 Rotating EMF indicator CAT III 600 V LCD

Overview

AC voltage range from 40 to 690 V.
Frequency range: From 15 Hz to 400 Hz
“R” and “L” are shown on the display
LCD display
Protective holster
SAFETY: IEC/EN 61010-1, CAT III 600 V.
Power supply: Directly from the mains

Description

The HT82 model is a portable digital measuring device for determining the phase sequence by connecting the standard test leads to the L1, L2 and L3 phases of a three-phase system. The measuring instrument displays the “R” indication at the positive test result (clockwise) and the “L” indication in the opposite case (anticlockwise). The presence of an incorrect cable connection is also detected by the meter.

Delivery content

• 3 cables
• 3 alligator clips
• Protective case
• User manual.
