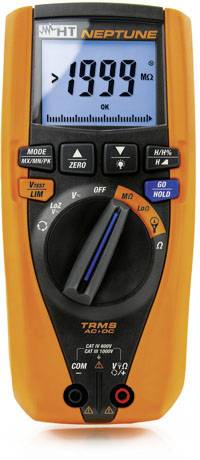

HT Instruments HT Neptune Electrical tester, VDE tester Calibrated to (ISO standards) VDE standard 0413

Overview

Insulation measurement with 50, 100, 250, 500, 1000 V DC. (VDE 0413 Part 2)
Low ohm measurement with 200 mA. (VDE 0413 Part 4)
Rotating field direction measurement by simply touching the conductor. (VDE 0413 Part 7)
Voltage measurement with low input impedance (LoZ)
Resistance and continuity test with buzzer
VOLTAGE: DC, AC TRMS, AC+DC TRMS UP TO 1000 V.
Frequency of voltage and/or current
MAX/MIN/PEAK/HOLD FUNCTIONS
Precise azegie with 10,000 points
Auto range measurements with automatic AC/DC detection
Determination of the polarization index (PI) & dielectric absorption ratio (DAR)
DC, AC TRMS, AC+DC TRMS current up to 3000 A with the help of an external converter
Leakage current with optional current transformer (HT96U)
Switch-on currents of electric motors (Dynamic Inrush Current)
Harmonics of current and voltage & THD (%) total distortion

Description

Neptune is a technology mix consisting of an instrument for electrical safety tests (insulation up to 1000 V and low-ohm measurement with 200 mA), a device for harmonics and a TRMS multimeter.

Delivery content

• A pair of alligator clips, red, black
• Test leads with 4 mm probes, model 4324-2
• 4 batteries 1.5 V, type AAA
• Robust device protection bag
• Short user guidelines
• User manual (on CD)
• ISO9000 calibration certificate.

Keywords

08033772792745, HT Instruments, 1010830-ISO, HT Neptune, Ammeter, Analogueue Digital Multimeter
