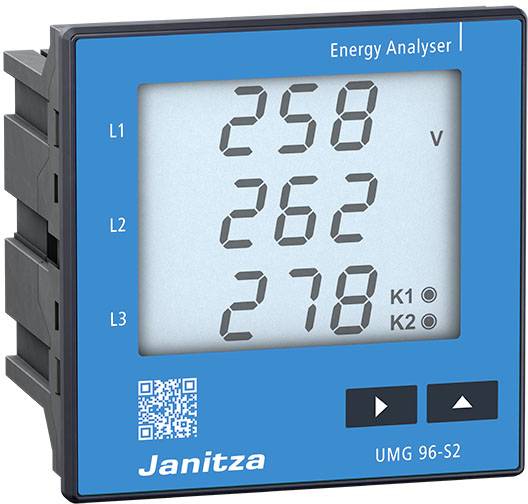

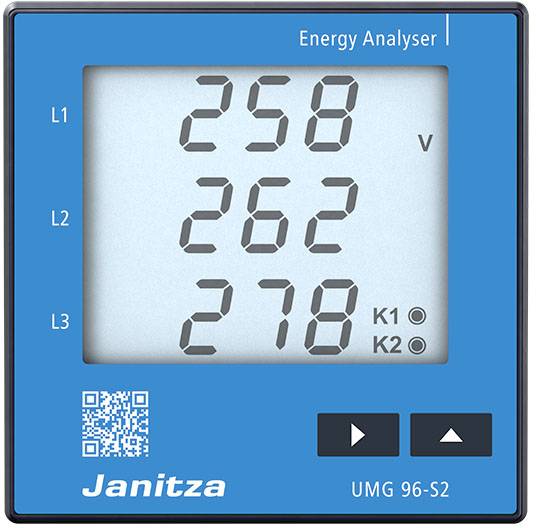

Janitza UMG 96-S2 Digital rack-mount meter

Overview

INSTALLATION CATEGORY 300 V CAT CAT III.
Measure in TN- and TT-power
Measurement of harmonics up to 15.

Description

The new UMG 96-S2 is suitable for the measurement and control of electrical characteristics and energy consumption as well as for the monitoring of voltage quality parameters, such as harmonics. Applications can be found in energy distribution systems, for example for cost center recording and limit value monitoring. Furthermore, the device can be used as a transmitter for the building control system or a PLC.

Characteristics

Supply voltage: 90 V - 265 V (50/60) Hz or 90 V - 250 V DC
Front panel mounted device, 96 x 96 x 48 mm (WxHxD)
4 voltage measurement inputs:
Measurement category: 300 V cat III
Measurement in 3-phase 4-conductor systems up to 230 V / 400 V (+-10%) according to IEC
3 current measurement inputs:
Measurement category: 300V cat II
rated current 5A / 1A adjustable
Current measuring range: 0.5 mA... 6 A
resolution: 1 mA
I/O:
1 pulse output
1x RS485 (Modbus RTU)

Delivery content

• UMG 96-S2
• User manual
• Mounting brackets (pre-assembled)
• RS485 terminating resistor 120 Ω
