Viessmann Modelltechnik 4568 Point motor 14 V, 24 V

  • (4)
  • item model number: A411762
Viessmann Modelltechnik 4568 Point motor 14 V, 24 V
Viessmann Modelltechnik 4568 Point motor 14 V, 24 V
50,00 €
VAT included
plus
Environmental tax included 0,02 €
Delivery time: 4-6 days
in stock
30 days free return shipment
Viessmann Modelltechnik 4568 Point motor 14 V, 24 V
50,00 €
VAT included
plus
Environmental tax included 0,02 €
One article is not enough for you and you want to save money?
from 3 piece: 49,50 € 1,0% savings
from 5 piece: 49,00 € 2,0% savings
from 25 piece: 48,00 € 4,0% savings

Product description

Overview

Suitable for H0 Märklin/Trix C-track

Description

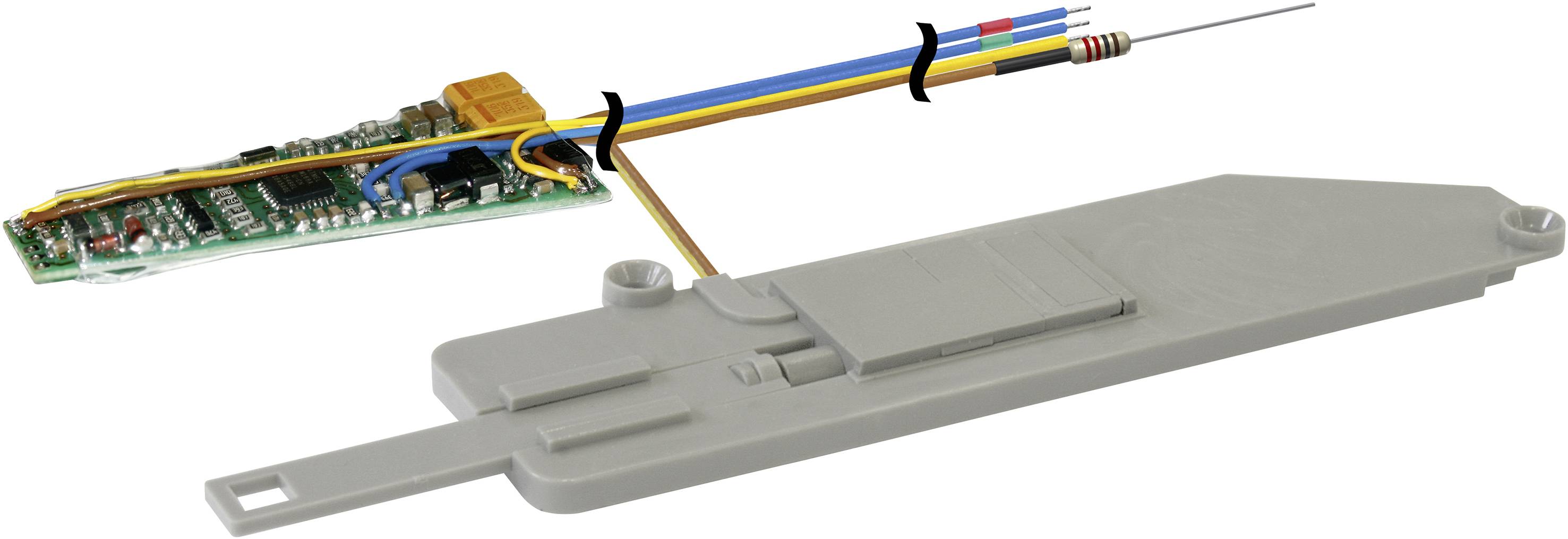

This special point drive is a powerful, noiseless drive with accompanying digital decoder for the installation in Märklin and Trix C-track system points. The decoder is located as a module in the cable, so the drive is particularly compact. The point drive is characterized by prototypical slow movement of the points of interest. Speed and motion sequence are electronically controlled and ensure a sensitive drive. If the motion direction does not match the switching direction on your input device due to the properties of your switch, you can invert the actuator direction in digital mode. The associated decoder understands the formats Märklin-Motorola and DCC and can be the requested set or actual position via RailCom to suitable digital centers, e.g. Viessmann Commander Art. 5300/5320, report back. However, it can also be operated in analogueue mode. Additional switching outputs for relays or LEDs as well as for conventional position feedback and heart piece polarization complete the range of functions. Its function is configurable.

Information

Märklin-C points:
24611 points left
24612 points right
24624 double crossing point DKW
24630 three-way point DWW (2nd pc. Drive)
20671 curved point left with hand lever
20672 curved point right with hand lever
24671 curved point left
24672 curved point right
24711 slim point left
24712 slim point right
24771 slim curved point left
24772 slim curved point right

Trix-C points:
62611 SWITCH C-TRACK LEFT
62612 SWITCH C-TRACK RIGHT
62624 SWITCH C-TRACK DKW
62671 SWITCH C-TRACK BEND POINT LEFT
62672 SWITCH C-TRACK BEND POINT RIGHT
62711 SLIM SWITCH LEFT
62712 SLIM SWITCH RIGHT
62771 ARC POINT LEFT
62772 ARC POINT RIGHT

Keywords

04026602045689, Viessmann Modelltechnik, 4568

Viessmann Modelltechnik 4568 Point motor 14 V, 24 V
Viessmann Modelltechnik 4568 Point motor 14 V, 24 V
