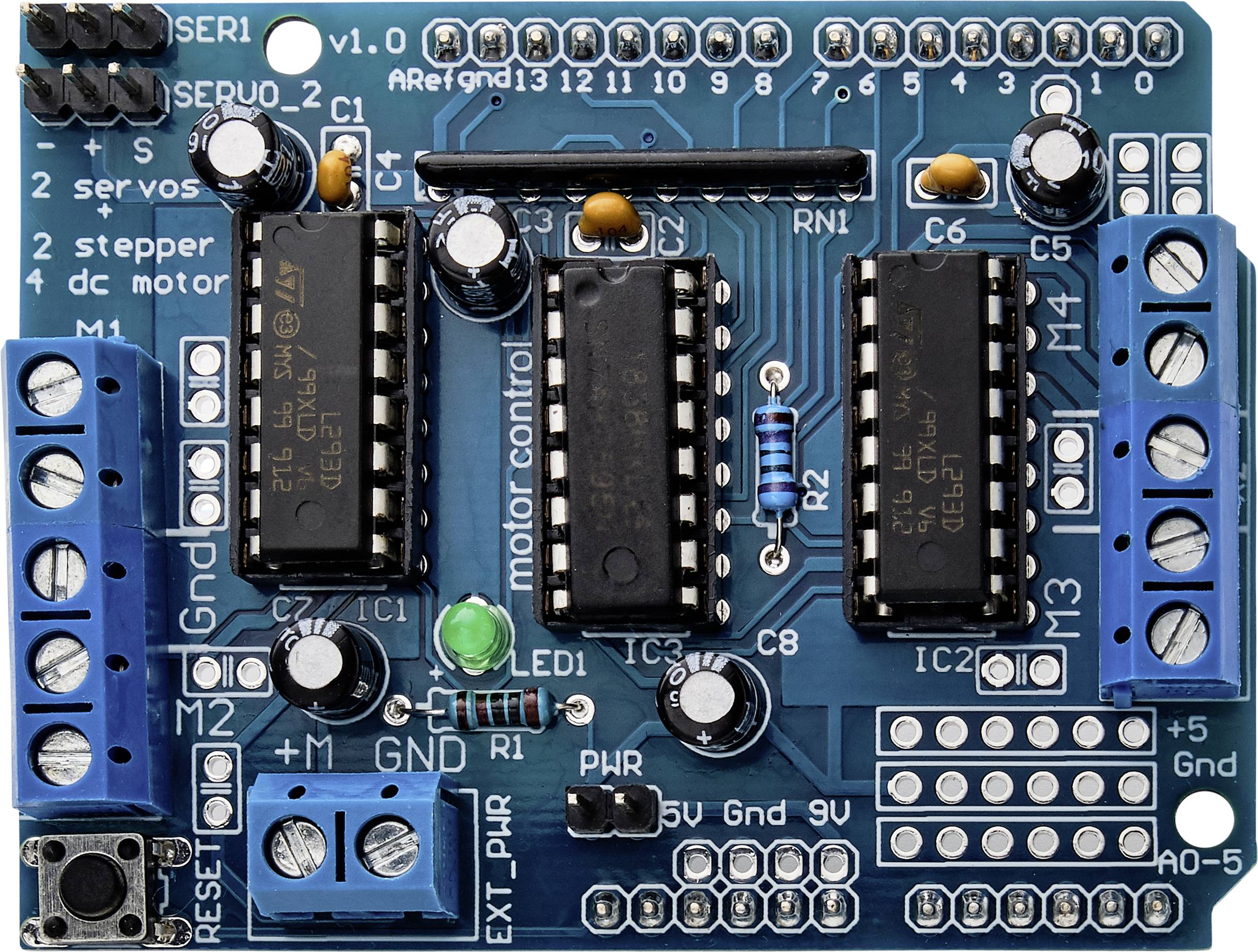

Overview
Integrated L293D chip

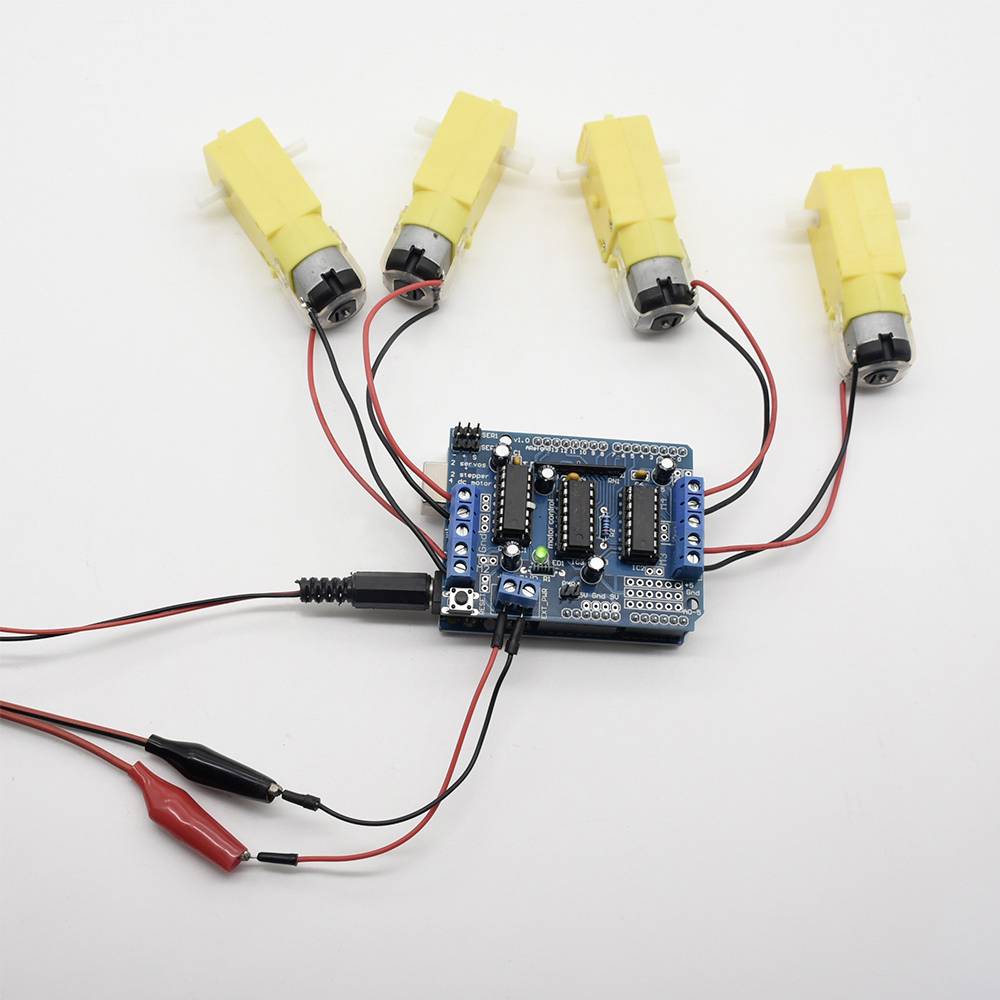

Controls 4 DC motors with speed and direction control
Controls 2 stepper motors
TRU COMPONENTS TC-9072484 Motor controller 1 pc(s) Compatible with (development kits): Arduino
Product description
Description
L293D is a monolithic integrated 4-channel high-voltage and high-current driver. When using this chip, you can use DC motors and power supplies of up to 10 volts. The chip can also supply a maximum current of 600 mA per channel. The L293D chip, also known as a kind of H-bridge, is typically an electrical circuit that allows a voltage to be applied to an output, e.g. a motor, via a load in both directions.
Characteristics
4.5 - 25V motor voltage range
1.2A peak current per channel (600mA continuous)
Chip L293 can use DC motors and power supplies of up to 10V
The chip can supply a maximum current of 600mA per channel
4 H-bridges: Delivers 0.6A (1.2A peak current) per bridge with thermal protection, can operate motors with 4.5V to 10V DC.
Delivery content
- Motor control module
