Bridged with a low-cost Cat. 5e/6 network cable (not included) For 4 devices distances up to 50m
"power over RJ45" ensures the power supply with only one power supply On the transmitter
Supports USB 2.0 high-speed and USB 1.1 full-speed/low-speed
Plug & Play

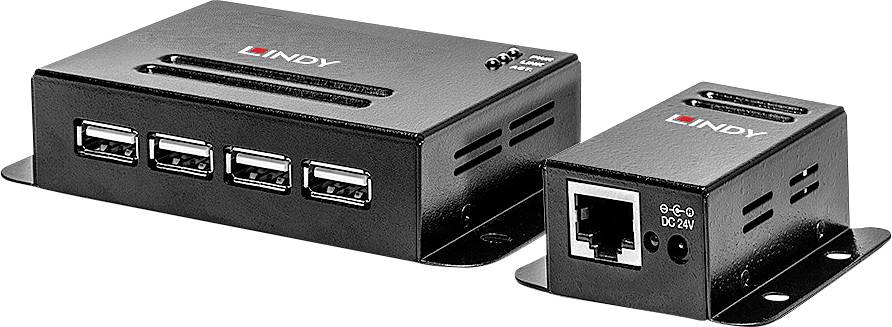

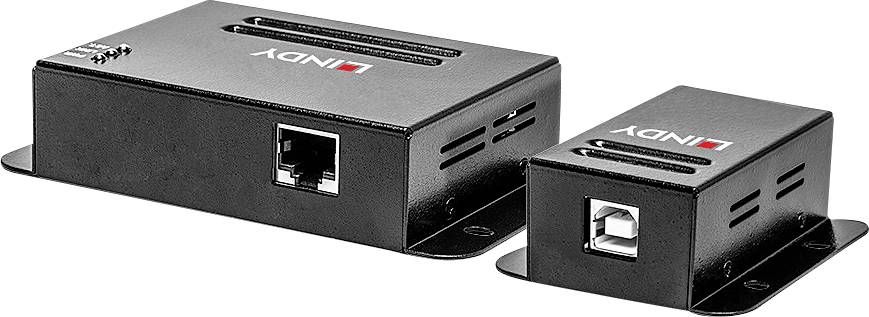

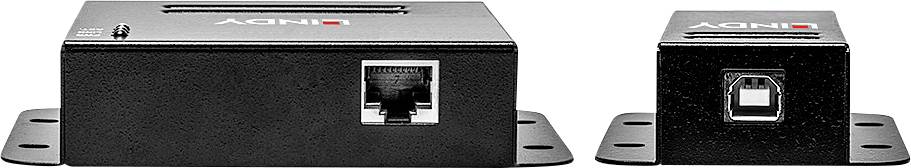

This Lindy USB 2.0 Cat.5 extender bridges distances up to 50m between 4 USB devices and the computer. Transmitter and receiver of the extender are connected with a favorable Cat. 5e/6 network cable (not included). We recommend the use of patch cables with rigid wires to achieve the best possible performance and compatibility.
The power is supplied via the RJ45 cable, i.e. if you connect the enclosed power supply to the transmitter, you no longer need a power supply at the receiver and have more flexibility in its installation.
With its robust aluminum housing and mounting brackets, this extender is especially suitable for use in industrial applications.
USB standard: USB 2.0
Supported bandwidth: 480Mbit/s.
Max. Range: 50m (164.04ft)
Transmission medium: Network cable Cat. 5e/6 (or higher)
Chipset: NS1021
Special features: power RJ45
Transmitter inputs: USB type B (socket)
Transmitter outputs: RJ45 (socket)
Receiver inputs: RJ45 (socket)
Receiver outputs: 4 x USB type A (socket)
Power supply / power supply: 3.5/1.35mm DC-socket
Housing dimensions HxWxD:
- 60x67x23mm (2.36x2.64x0.91in) (TX)
- 110x64x23mm (4.33x2.52x0.91in) (RX)
Case material: metal
Net weight device/e: 0.415kg (0.91lb)
OPERATING TEMPERATURE -0° - 70°C (32°F - 158°F)
STORAGE TEMPERATURE -20°C - 80°C (-4°F - 176°F)
Humidity 0 - 90% RH (non-condensing)
Power consumption: 24VDC 0.5A
