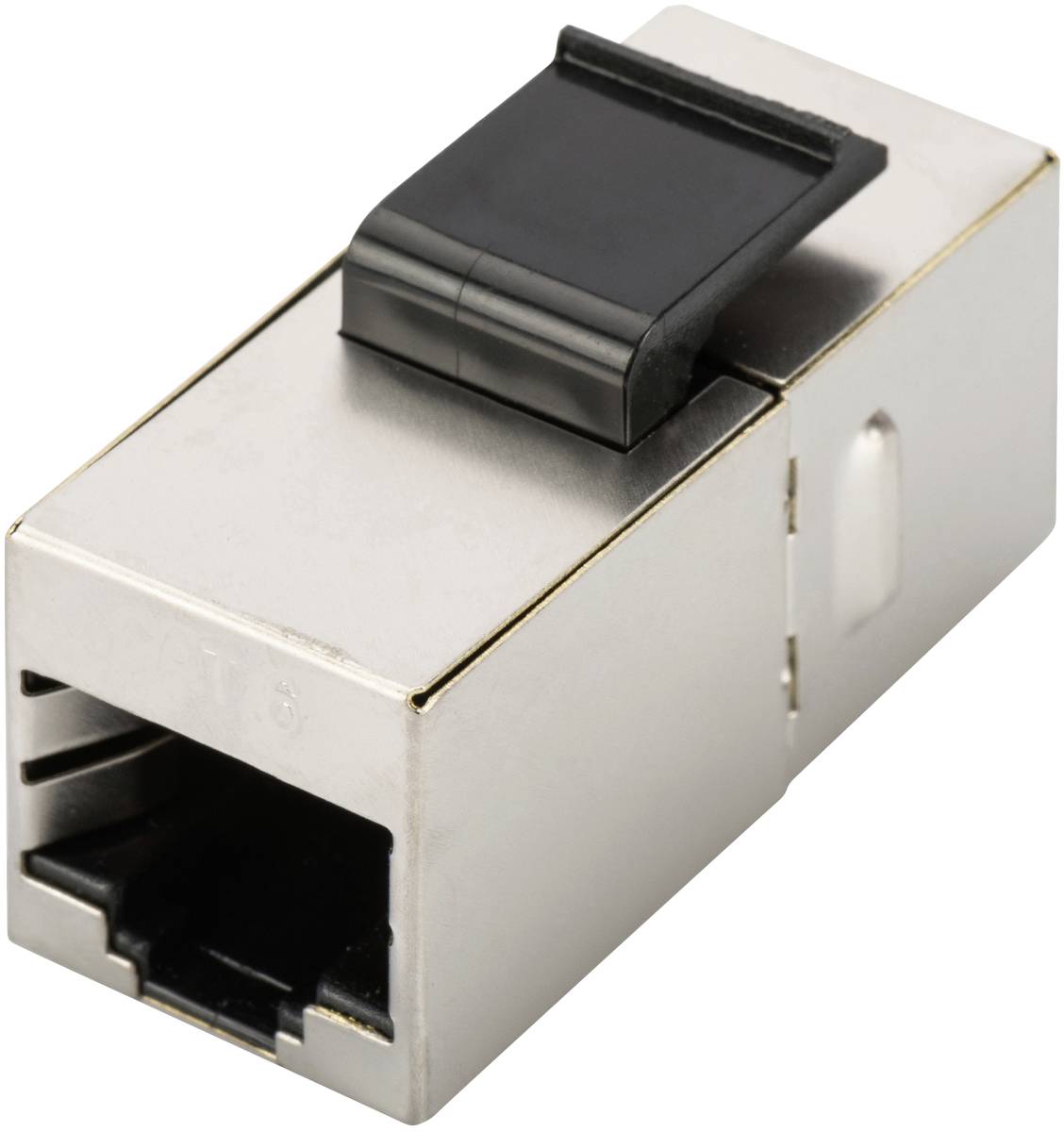

Digitus RJ45 Networks Adapter CAT 5, CAT 5e, CAT 6 [1x RJ45 socket - 1x RJ45 socket] Grey

Overview

The Cat.6 keystone module with 2 RJ-45 sockets and 360° shielding Supports speeds of up to 1 Gbps & 250 MHz In conjunction with Category Cat6 or higher network cables
In combination with a modular patch panel or consolidation point enclosure, the connection module is suitable for orderly cabling between server & network cabinets, for example
In addition to patch fields, it also includes modular network sockets and keystone holders for the DIN rail mounting in sub-distributions for the possible application areas of keystones couplings
For wetting in the designated recesses of junction boxes and Patch fields are on the top of the keystone jack a stable Plastic locking lever
The network coupling has a 1:1 pin assignment and is taken into account cat 6 network category compatible with all Ethernet and telecommunications cables With RJ45 plug

Description

Digitus DIGITAL® modular couplings are shielded and offer excellent performance and connection quality for your network. Equipped with 2 RJ45 sockets in the assignment 1:1, they are suitable for patch panel mounting.

Characteristics

Application areas: Up to 250 MHz, 1GBase-T.
Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Suitable for 19" (483 mm) cabinet mounting
2x RJ45 sockets, 8P8C
360° shield contact
1:1 occupied

Information

Please check the adapter pin layout. Depending on use, required pin layouts may differ.

Delivery content

• cat 6 Modular coupling, shielded RJ45 to RJ45, suitable for panel mounting

Keywords

04016032266846, Digitus, DN-93613-1, network connector, ethernet connector
