Benning ST 710 Equipment tester VDE standard 0701-0702

Overview

Automatic test sequence
Tests in the battery operation

Description

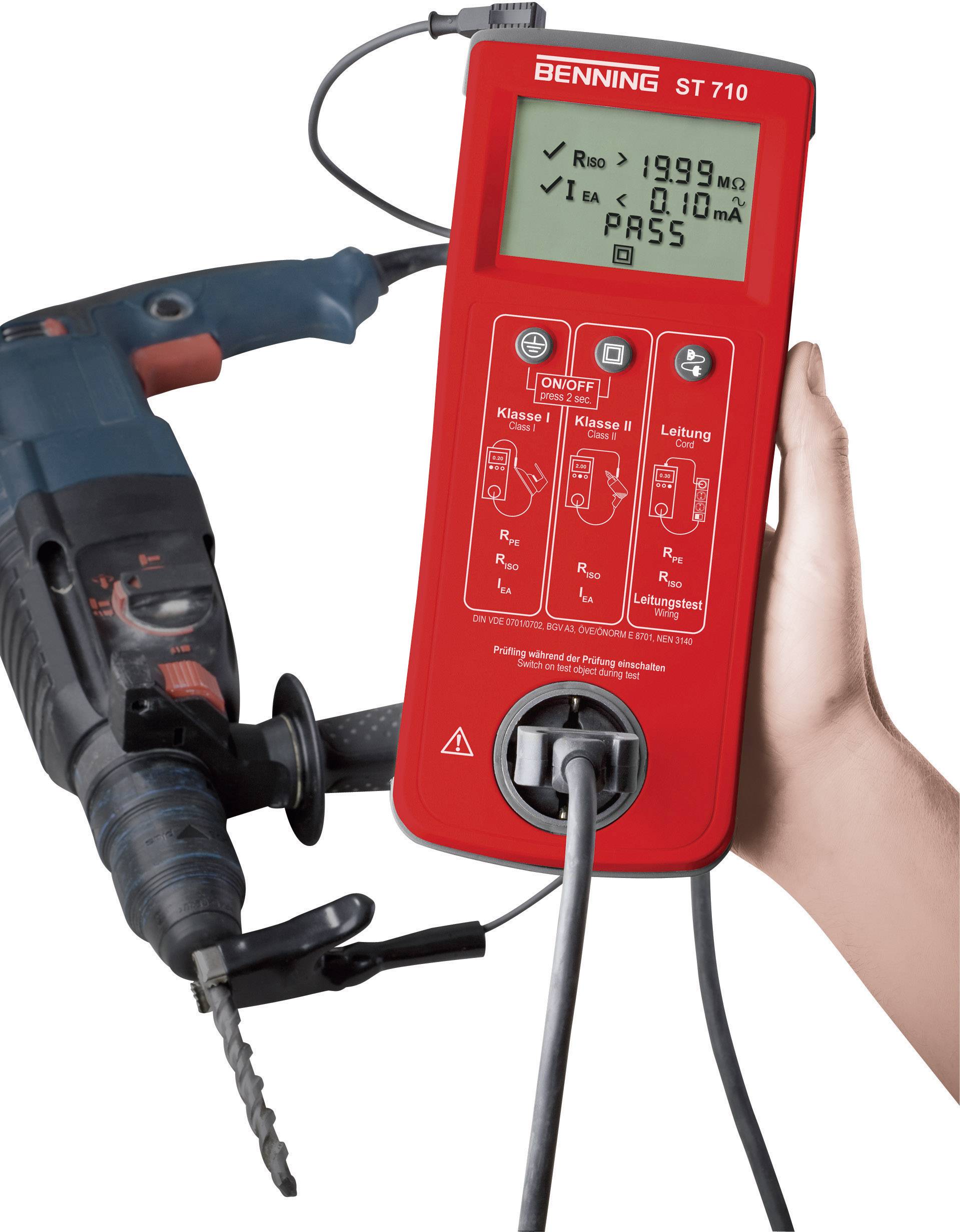

With the battery-operated device tester ST 710 mobile, simple and economical tests can be done on electrical devices/ resources, such as electrical equipment/tools with on/off-switch, heating devices, motor devices, lamps, cord reels, multiple distributors and household appliances in accordance with DIN VDE 0701-0702, BGV A3, ÖVE/ ÖNORM E 8701, NEN 3140. The ground wire/contact current is measured with the leakage current method.
Performance characteristics: Easy (operation via three keys), fast (complete testing within 10 sec) · Mobile (testing can be done independent of the power supply) · For devices of the class I, II (III), extension and network cable with rubber connectors with good/poor evaluation.

Characteristics

Limiting values pre-set according to VDE-standard · Battery capacity for 2500 samples · Ground conductor / contact current (spare leakage current method) · Line testing including RPE, RISO, continuity and short-circuit testing of the phase/neutral line.

Information

Action: Till 31/12/09 you get 300 pieces of test labels free when you purchase a device tester ST710 by Benning. You save 11.5% as compared to the individual retail price!

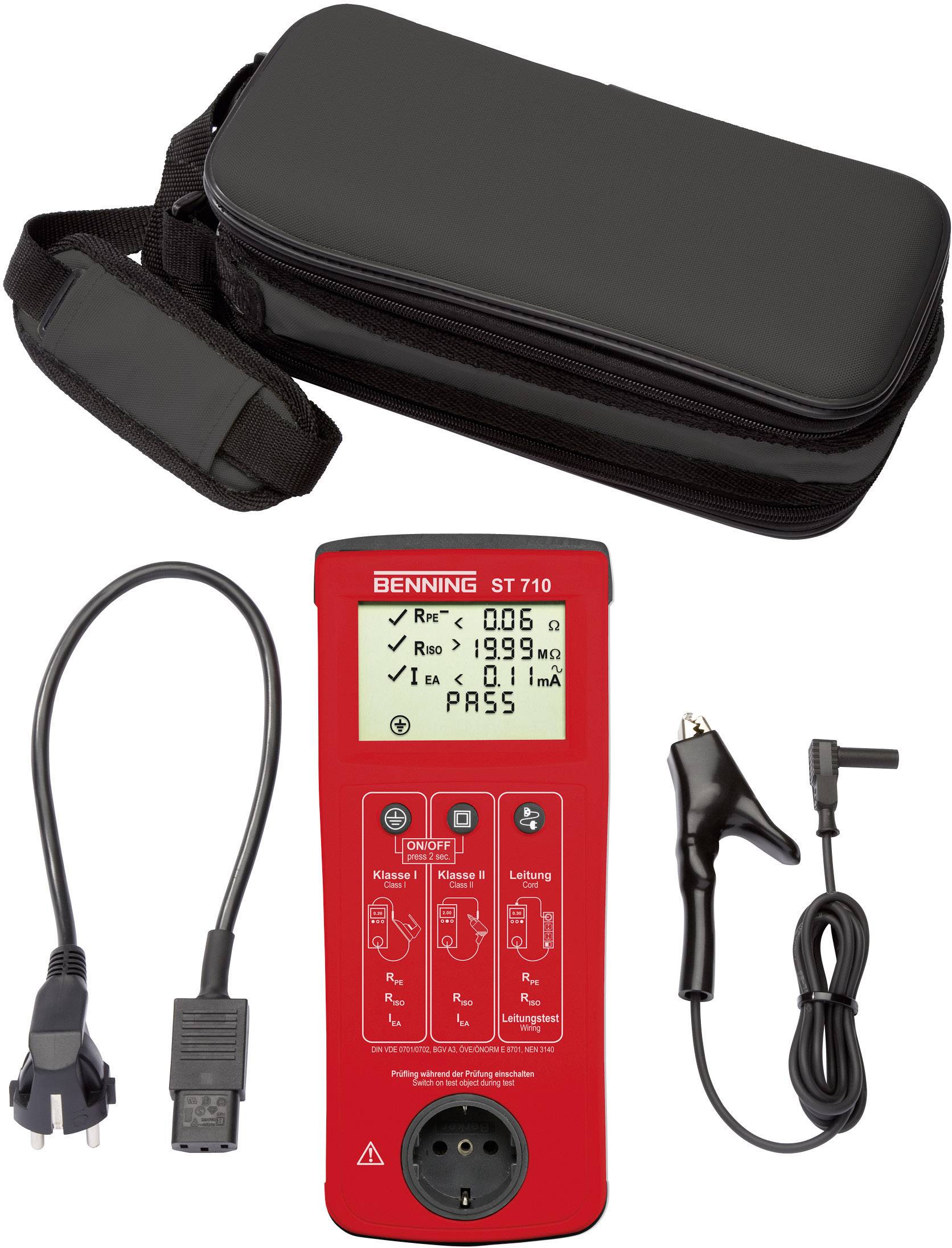

Delivery content

• 6 batteries (size AA)
• bag
• test lead with crocodile clip
• cold device line
• Operational instructions
