Overview
For connecting external temperature and humidity sensors
USB and LAN interface
Large data memory
Incl. evaluation software, wall mount and USB data cable

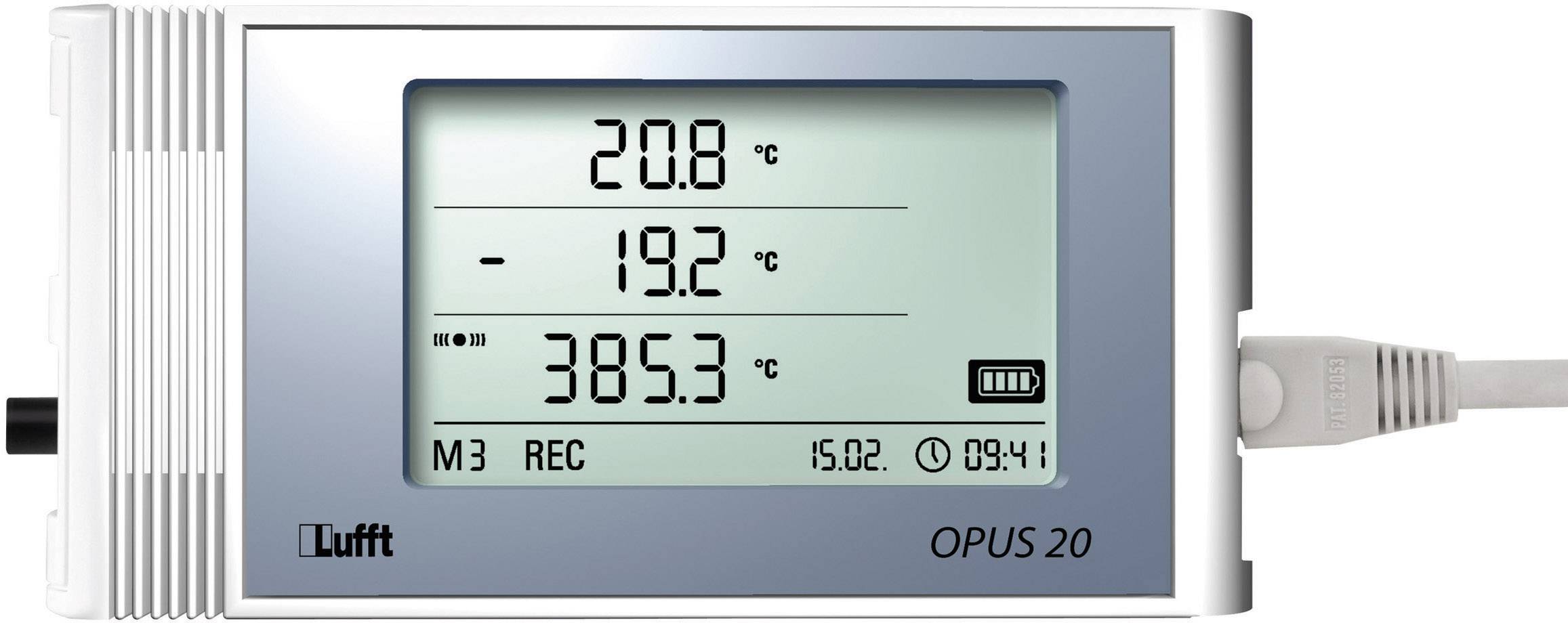

Lufft Multi-channel data logger Unit of measurement Temperature, Amperage, Voltage, Humidity -200 up to 1700 °C 10 up to 95 RH
Product description
Description
Precision data logger for connecting external sensors for temperature, humidity and analogue inputs. The optional Y connector can connect up to four external temperature/humidity sensors. A further two analogue inputs are provided. In combination with the Opus20E's LAN capability, this can be used to implement universal, real-time monitoring networks for climate monitoring in production areas, climate chambers and incubators, for example. Analysis software SmartGraph3 with automatic measurement device management is included.
Characteristics
Up to 4 external temperature/humidity sensors can be connected · USB and LAN interface · Two analogue inputs are available (Pt100, thermocouples K/J/S, analogue 0/4 -20mA and 0-1V) · Intelligent BUS sensors can be integrated via the OPUS20E RS485 interface (for example,particle counter) · Large data memory of 3.2 million measurements (memory contents remain intact even after battery change) · Flow and differential pressure sensors can be connected · LCD display · Up to 10 external channels/sensors can be connected.
Information
Temperature/humidity sensors not included.
Delivery content
Evaluation software SmartGraph3 · 4 x AA batteries · Wall bracket · USB data cable · Factory certificate according to DIN EN 10204/2.2
Keywords
Lufft, 8120.30, logger, data logger, measurement data logger, long-term recording
