Overview
Assembly dimensions 45 x 22 mm

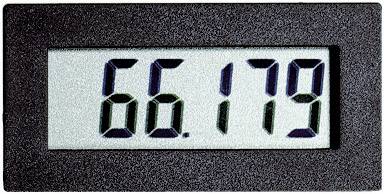

VOLTCRAFT DHHM 230 Digital rack-mount meter
Product description
Description
DIN-dimension operating hours/countdown timer for installation in power supplies, lab equipment and control panels. Standard module with DIN dimensions 48 x 24 mm and 10 mm digit height.
Characteristics
Operation hour-meter with 6-digit display · Alarm output for an optional buzzer or LED with reaching a preselect value · Additionally with backward-counting even applicable as count down timer · Adjustment of the preselected value via four optional keys · Meter input via key against mass or logic level (active low) · Active outputs for Timer and Alarm · Operating voltage 3 V/DC
Keywords
04016138523140, VOLTCRAFT, DHHM230, DHHM 230, DHHM230
