ENTES EPC-12 Pulse counter interface

  • item model number: Q56423

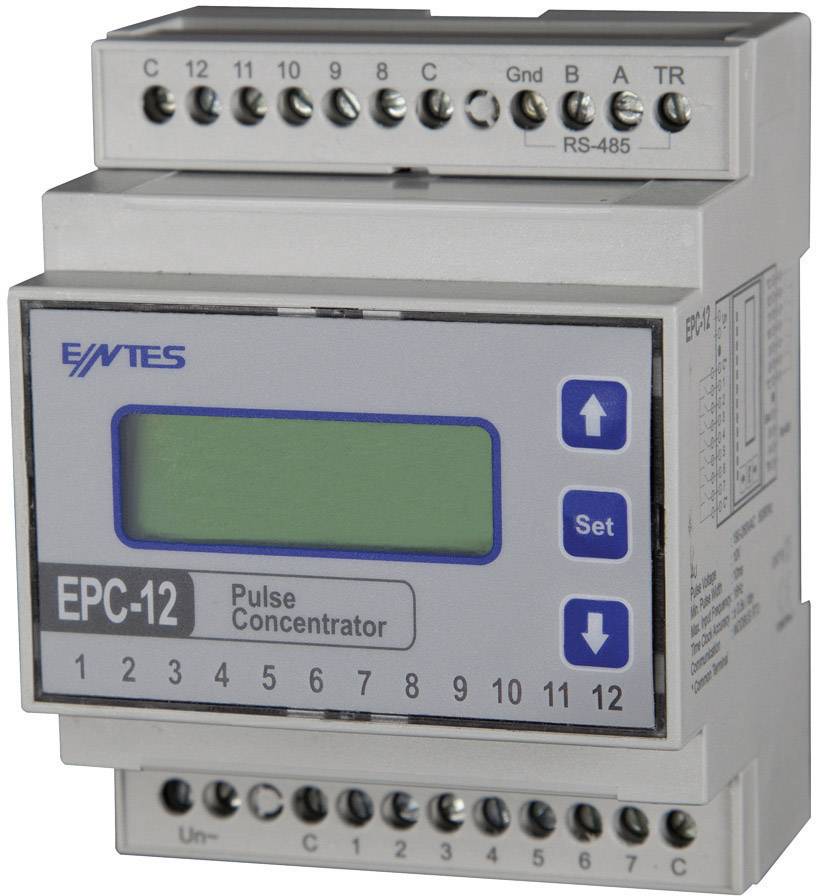

Electronic device for power monitoring with a display and control elements; connection points at the top and bottom for wiring.
CHF 281.95
VAT included
plus
Delivery time: 6-8 days
available from 14/09/2026
30 days free return shipment
ENTES EPC-12 Pulse counter interface
CHF 281.95
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 279.13 1,0 % savings
from 5 piece : CHF 276.31 2,0 % savings
from 10 piece : CHF 273.49 3,0 % savings

Product description

Overview

Operating voltage 190 - 260 VAC
12 separate counting inputs
Tariff Calculator
2 MB non-volatile memory
RS-485 interface
Backlit display
Password protection
Including PC software for data recording

Description

Pulse counter with 12 separate counter inputs and RS-485 interface for DIN rail mounting.

EPC-12 is a microprocessor-based 12-way pulse counter with separate counter inputs, which incoming pulses of, for example, energy measuring devices, Water counters or gaszahlern e.t.c. collects. The programmable tariff calculator, 8 different tariffs either in connection with the integrated clock for each count input defined and displayed. Is the rate function is deactivated the device acts as a 12-fold pulse counter. The captured data is in the internal 2 MB memory and can be accessed via the RS-485 interface.

Characteristics

RS-485 interface · PC-Software for data recording.

Keywords

04016138790320, ENTES, 101474, EPC-12, pulse counter
