230 V/AC, 400 V/AC ± 30% operating voltage
Undervoltage setting range 300 to 400V/AC
Overvoltage setting range 400 to 500 V/AC
Overvoltage protection
Undervoltage protection
Monitoring between two phase-failure protection limits
Phase sequence protection
Switch-off delay
1 8A relay output

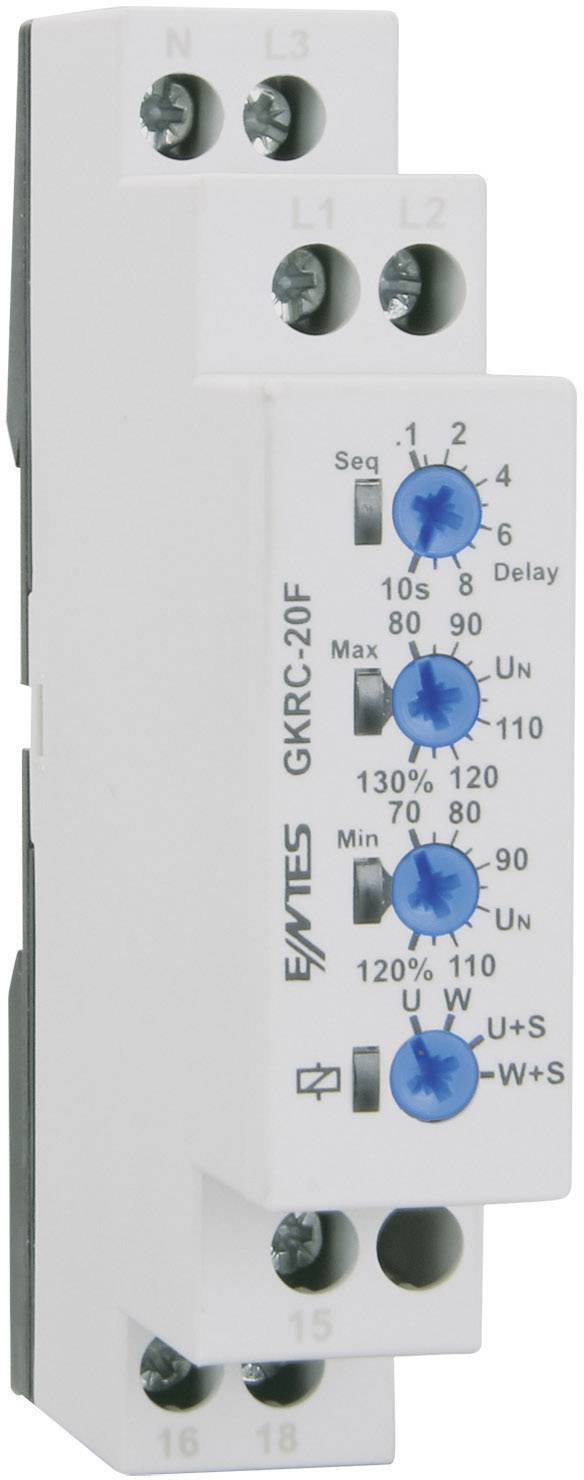

Voltage monitoring relay for the protection of one-phase and three-phase networks against power fluctuations and incorrect phase sequence. Faulty alarm responses due to voltage spikes are prevented by a switching delay (0.1 – 10 s). The relay switches immediately if the voltage of a phase exceeds or falls below the nominal voltage by more than 50%.
Overvoltage protection · Undervoltage protection · Monitoring between two limits · Phase-failure protection · Phase sequence protection · Switch-on delay
08699421400081, 04016138741612, 8699421400081, ENTES, 101535, GKRC-20F
