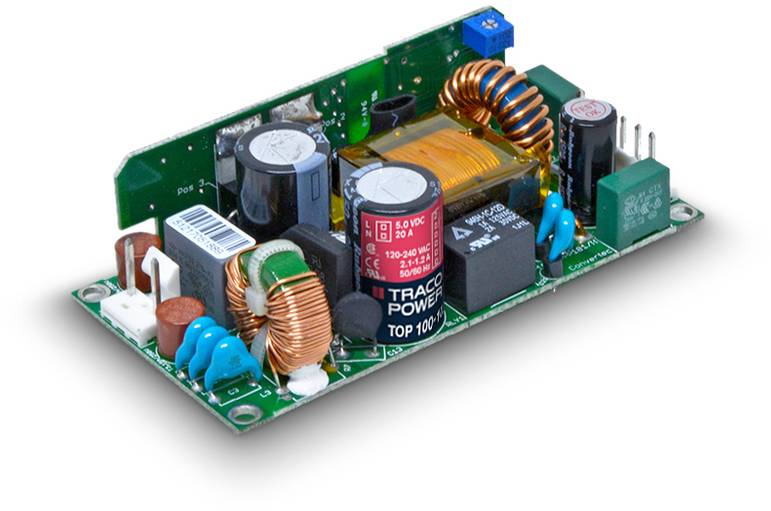

TracoPower TOP 100-112 Power supply unit 12 V DC 8.3 A 100 W

Overview

Output 12 V DC/8.3 A
100 W Power
Number of outputs 1 x
Input voltage range 90 - 132/187 - 264 V AC
Operation with full load up to +50 °C at natural convection
Very high efficiency up to 90% type.
Input filter according to EN 55022, Class B
Noise immunity according to EN 61000-3-2
Low leakage current
Connection (components): Connector

Description

The main feature of the TOP-100 series is the highest power density in the industry standard 50.8 x 101.6 mm (2.0" x 4.0"). The power supply unit can be operated with an output power of up to 100 W with convection cooling in an industrial operating temperature range from -25 °C to +50 °C. The power supply unit can be operated with an output power of up to 100 W with convection cooling in an industrial operating temperature range of -25 °C to +50 °C. This performance feature is achieved by state-of-the-art technology and an extremely high efficiency > 90 %, which makes the use of an additional fan superfluous.

Characteristics

Ultra compact Open Frame switching SMPS · Connector with connector assembly (Molex) · Overvoltage protection · Interference according to EN 55022, class B and EN 61000-3-2 (PFHC) · International safety standards/ permissions · Network-/load regulation ±1% max · Ripple 100 m V_pp · Power limit 150% · Operation temperature -25 till +70 °C, reduction of performance above 50 ºC · Safety/reliability as per IEC/EN 60950, UL 60950-1, CSA-C22.2 No. 60950-1103 · Efficiency 90% · Protection class 2.

Delivery content

• Without aluminium bridge as heat sink.

Keywords

02050000754937, TracoPower, TOP 100-112, 665-5732
