Overview
No. of outputs 1 x
Output voltage 1-200 V DC - 200 V DC
Output current 1 0.1 A;1 A
Power 20 W
GPIB, USB , LAN, LXI
programmable

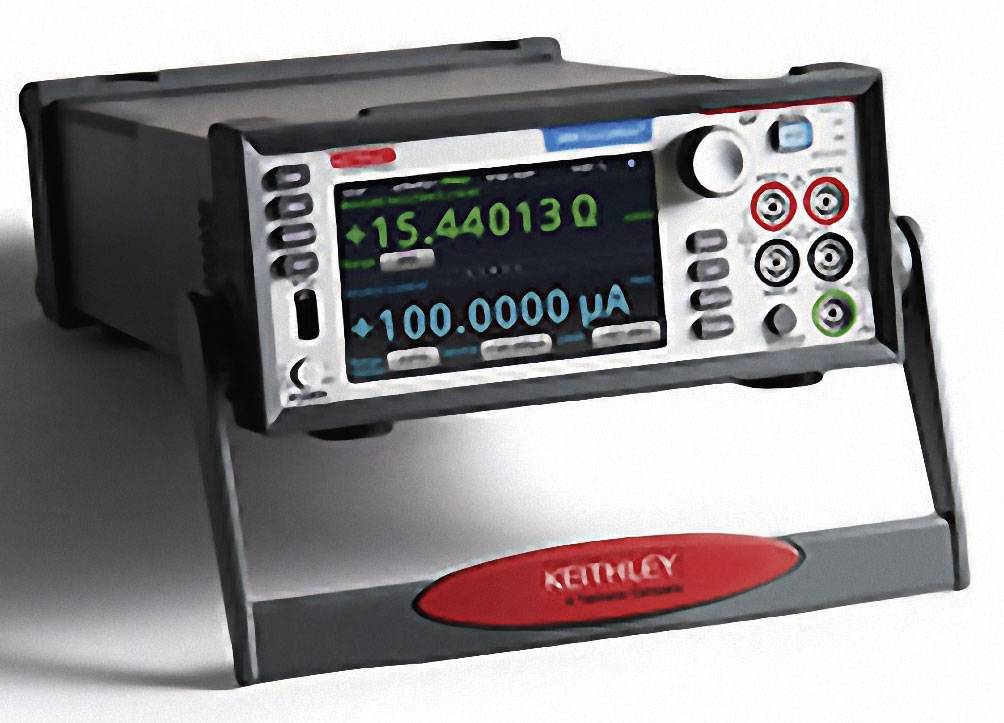

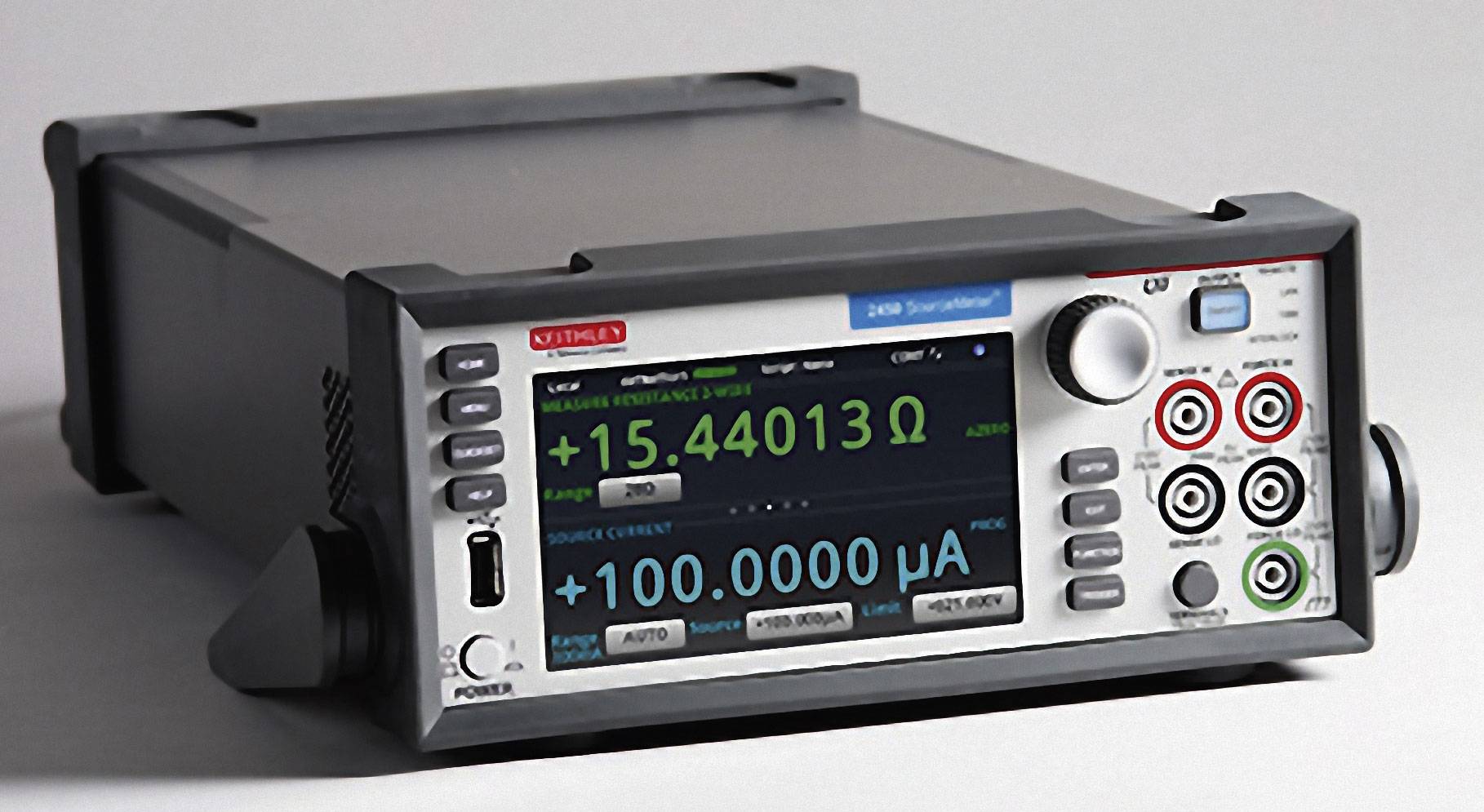

Keithley 2450 SourceMeter Bench PSU (adjustable voltage) -200 - 200 0.1 - 1 A 20 W GPIB, USB , LAN, LXI programmable No. of
Product description
Description
Keithley's Model 2450 is a next-generation SourceMeter SMU (Source Measure Unit) instrument that enables true testing according to Ohm's law (current, voltage and resistance). The innovative graphical user interface (GUI) and advanced capacitive touch screen technology allow intuitive operation with minimal learning curve, making engineers and scientists easier to invent, smarter to work with and faster to learn. The Model 2450 is an SMU for all applications: A versatile instrument, particularly well suited for characterizing today's advanced semiconductors, nanometer devices and materials, organic semiconductors, printed electronics, and other microelectronics and low-power devices. All this combined with Keithley's legendary precision, resolution, accuracy and reliability. The engineers and scientists benefit from a new and intuitive ease of use in source-measure tests according to the motto Touch, Test, InventTM.
Characteristics

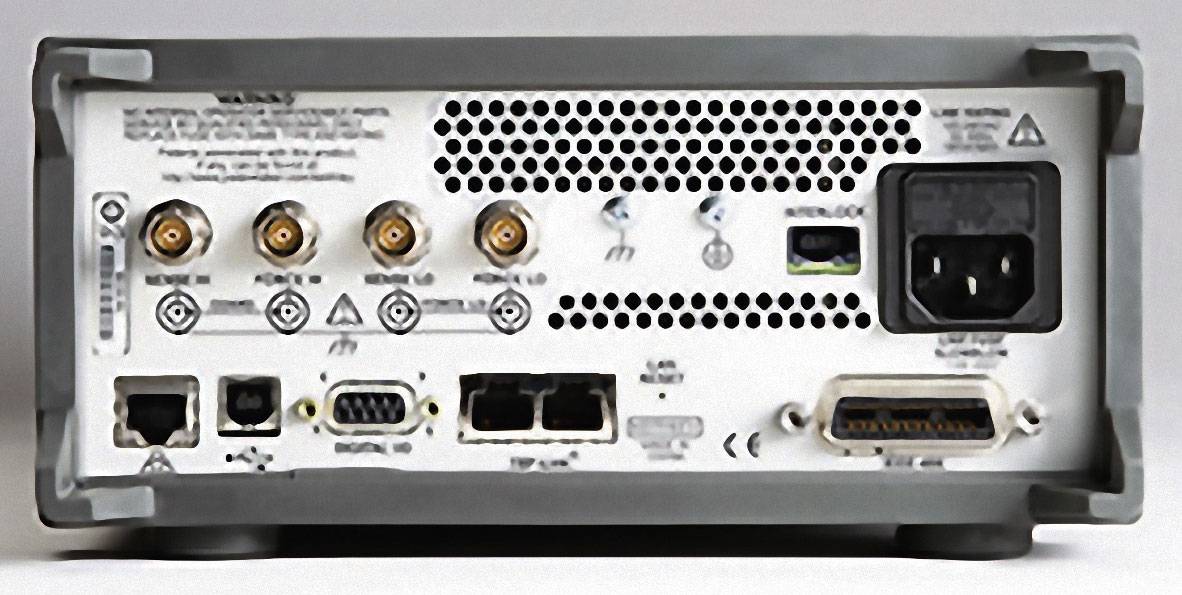

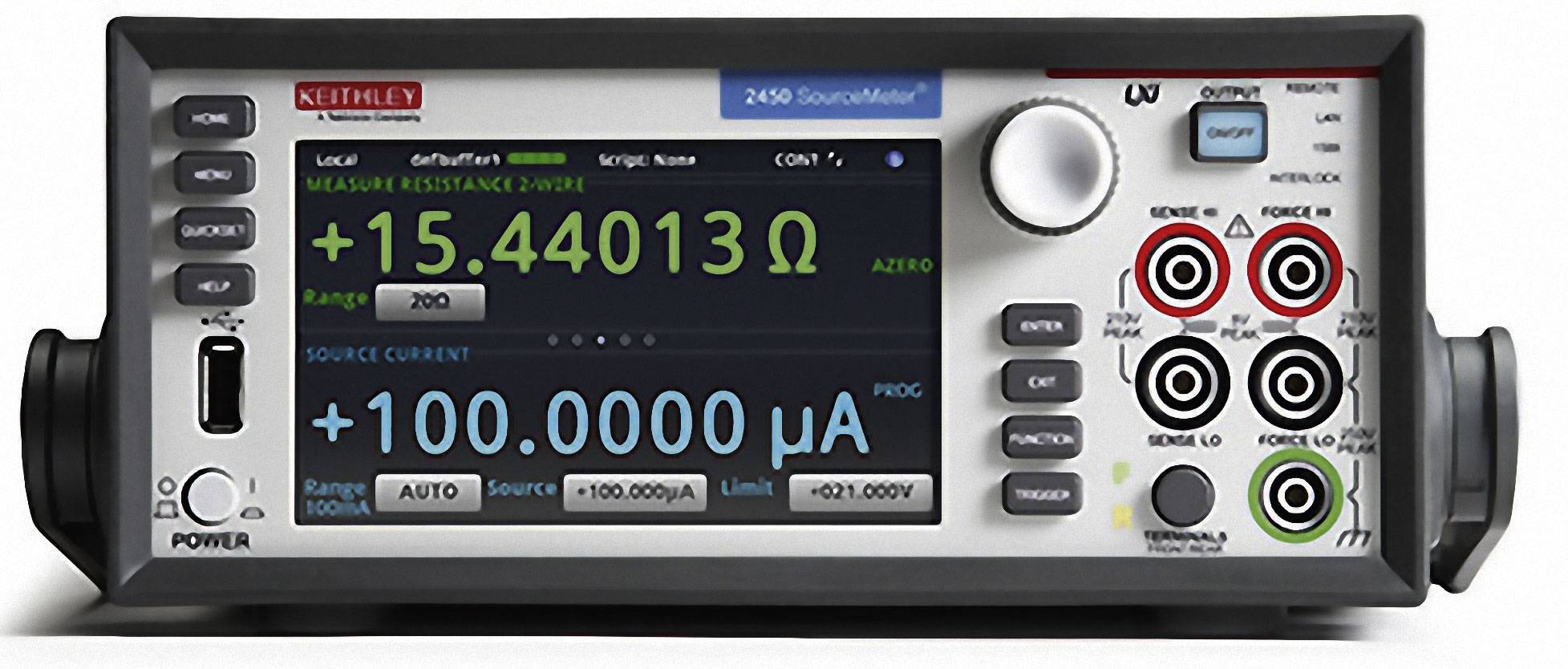

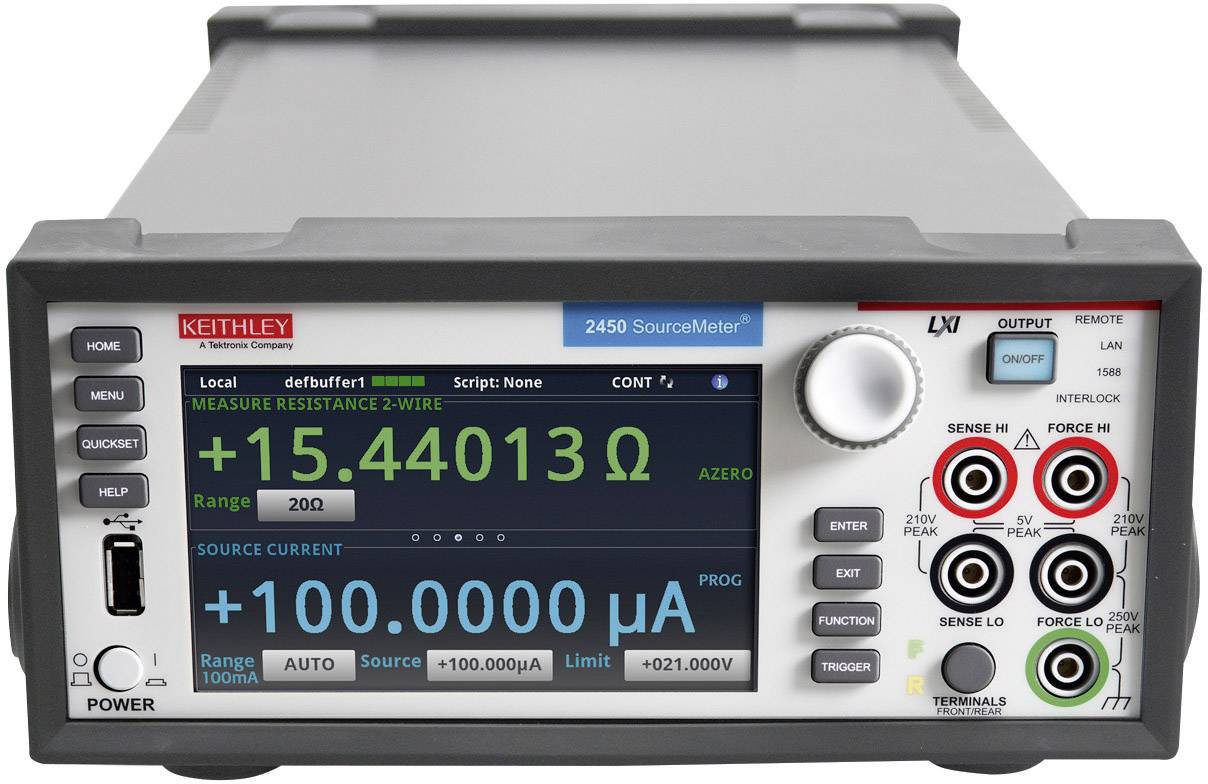

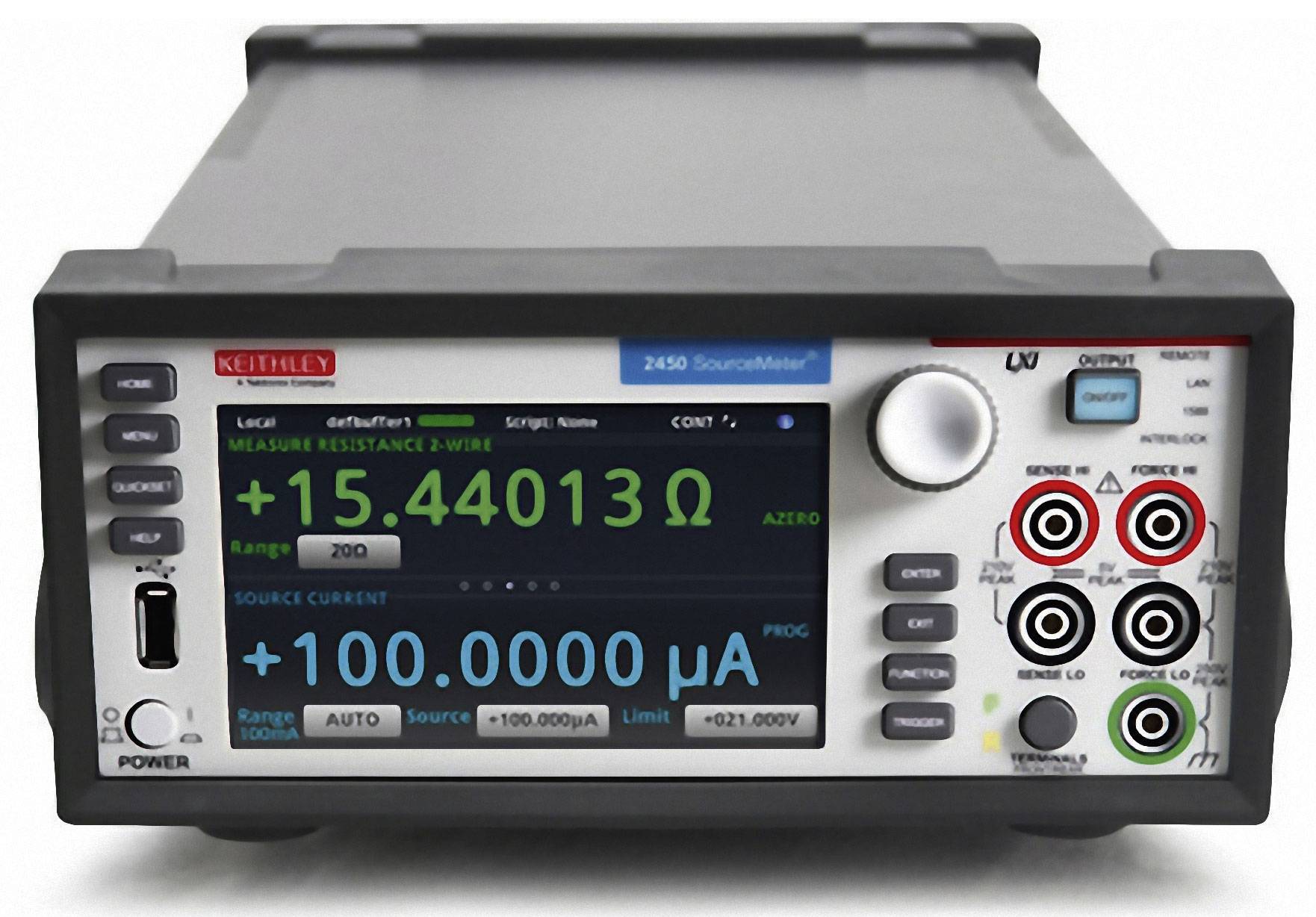

Graphical user interface with high-resolution capacitive 5" touch screen - Basic accuracy of 0.012% and 6 ½-digit resolution - Improved sensitivity through 20 mV and 10 nA source/measuring ranges - Source and sink operation - Four personality modes for quick settings and measurements - Context-sensitive help function via front panel - Banana input jacks on front panel, Rear Triax Connections - Improved SCPI and TSP® Scripting Programming Modes on Model 2450 - Model 2400 SCPI Compatible Programming Mode - Front Panel USB Port for Data/Programming/Configuration.
