Overview
Tip length 55 mm
tip size 150 mm
for facing, plain turning, boring, conical turning, parting and drill
maximum spindle speed also enables the hestellung of parts with very small diameters

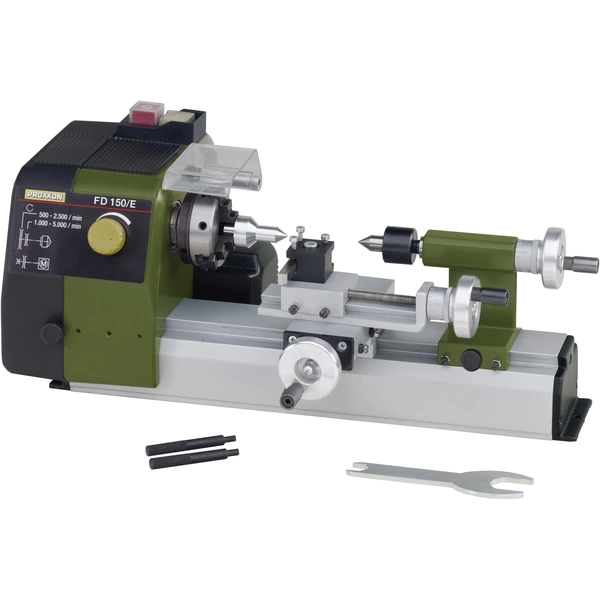

Proxxon Micromot FD 150/E Lathe
486,54 €
VAT included
Free shipping
Environmental tax included 0,85 €
Delivery time:
2-3 days
in stock
30 days free return shipment
486,54 €
VAT included
Free shipping
Environmental tax included 0,85 €
Product description
Description
Lightweight, stable and precise. For spindle numbers of revolutions of 500 - 5000/min.
Characteristics
Machine bed with dovetail guide from Alu-Strangguss · Spindle floor made of die-cast aluminum with noise-DC-special motor, 2-stage belt drive and additional speed control for high torque at low speeds for larger workpieces and for the correct cutting speed even with the smallest parts · Precision Ball Bearing main spindle with continuous 8.5 mm hole · Chuck side fit for standard collet type ER 11 · Three-jaw chuck (inner jaws 1.5 - 32 mm exciting centric, external jaw 12 - 65 mm) · Tailstock made of die-cast aluminum with quill and concurrent grain point · Support is manually moved on the bed and clamped with lever · Rotating multiple steel holder for cutters 6 x 6 mm · Edit is done with top slide and cross slide · Rotate of cones up to ± 45° is possible by angle setting of the upper slide · hand wheels also on 0 adjustable justierbarem graduated ring (1 division line = 0.05 mm, 1 revolution = 1.0 mm) · Built according to protection class 1.
Keywords
04006274241503, 4006274241503, Proxxon Micromot, 24 150, FD 150/E, 24150
