Overview
Constant current
18 - 30 V DC
2 A
Dimmable

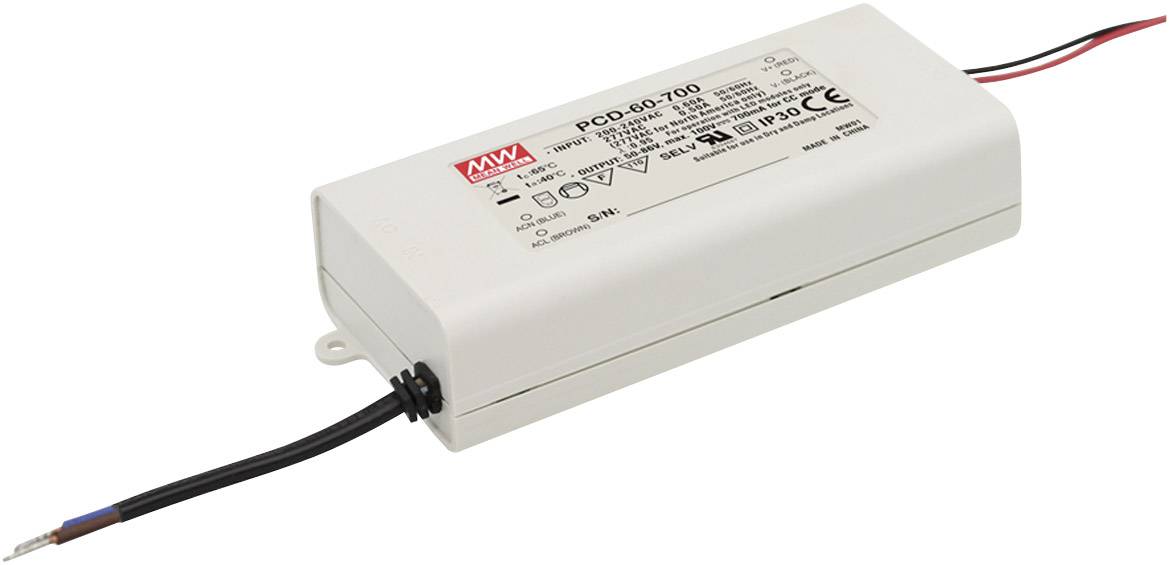

Mean Well PCD-60-2000B LED driver Constant current 60 W 2 A 18 - 30 V DC dimmable, PFC circuit, Surge protection, Suitable for
Image is similar
Product description
Description
PCD-60: AC dimmable, for leading edge and trailing edge dimmers, flexible wire terminals · PLD-60: not AC dimmable, flexible wire terminals · Plastic enclosure IP30 · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over voltage · Built-in active PFC function · Suitable for LED lighting and moving sign applications · Constant current · EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13
Characteristics
AC-dimming, for phase-angle-and-control dimmer suitable, Wire Connections · Overload protection through current limitation, auto recovery · Protected against short circuit, overload, over voltage · Built-in PFC circuit · For indoor applications · For LED lighting applications · Constant current · EN 61000-3-2, Class C, EN55015, EN 61347-1, EN 61347-2-13.
Information
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
