Keithley 7706 7706 1 pc(s)

  • item model number: A036851

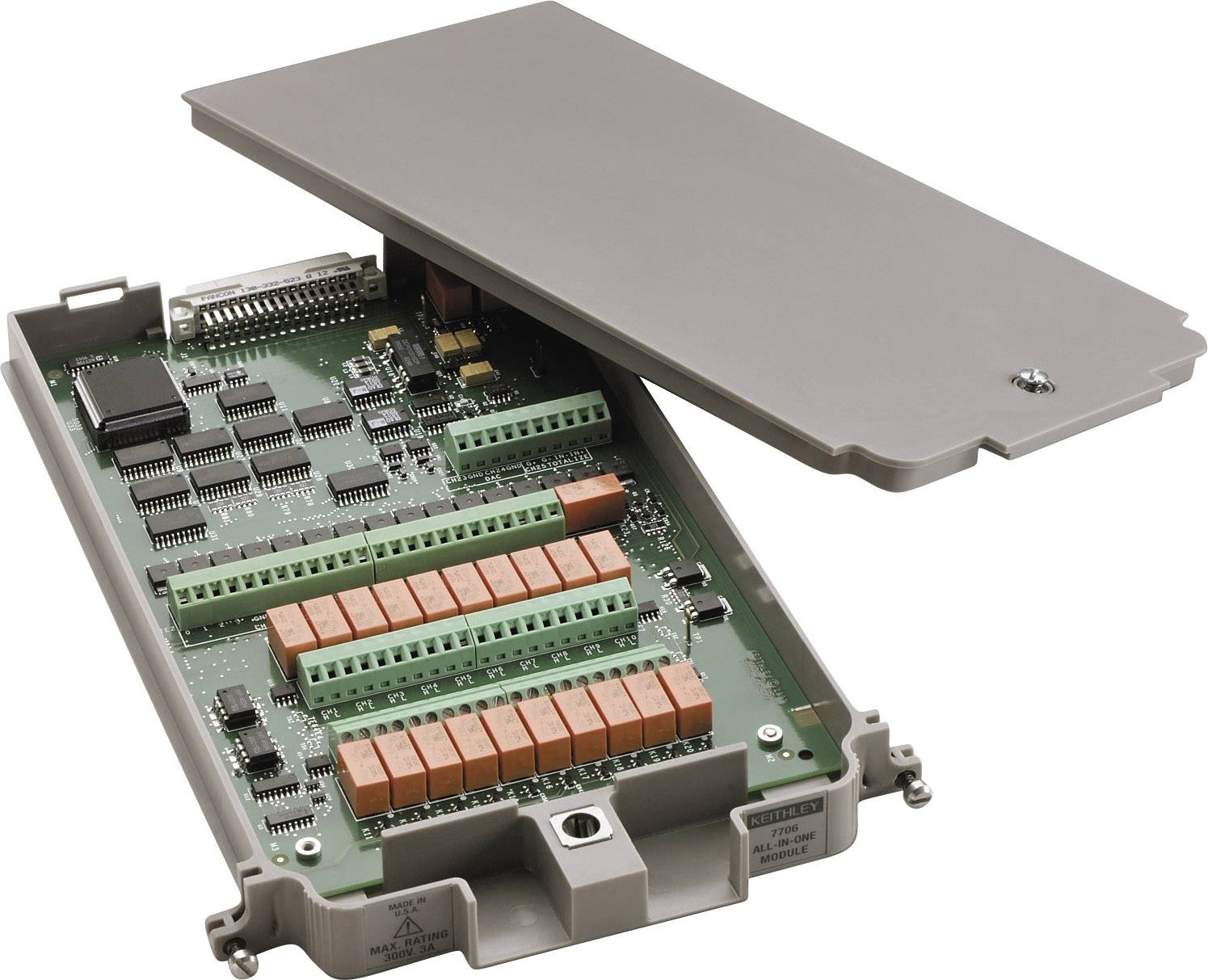

Opened electronic enclosure with visible circuit board, populated with integrated circuits, connectors, and orange and green components.
This offer is only valid for business customers
Keithley 7706 7706 1 pc(s)
This offer is only valid for business customers

Product description

Overview

20 channels
up to 1 A current carrying capacity
input voltage max. 300 VDC
relay operations are stored in onboard memory

Description

The Keithley 7706 Universal I/O Module provides 20 channels of 2-pole or 10 channels of 4-pole multiplexer circuitry with built-in automatic CJC sensors along with 2 analog output channels, 16 digital outputs, and an event counter/assumer. While performing mixed signal measurements, the Event Counter/Totalizer can be used to monitor and control system components such as lighting, limit switches, pass/fail indicators, external power sources, loads, door closures and revolutions.

Delivery content

  • Power cord - User manual - Data sheet - 7706

Keywords

04016138946451, Keithley, 7706, 796-2643
