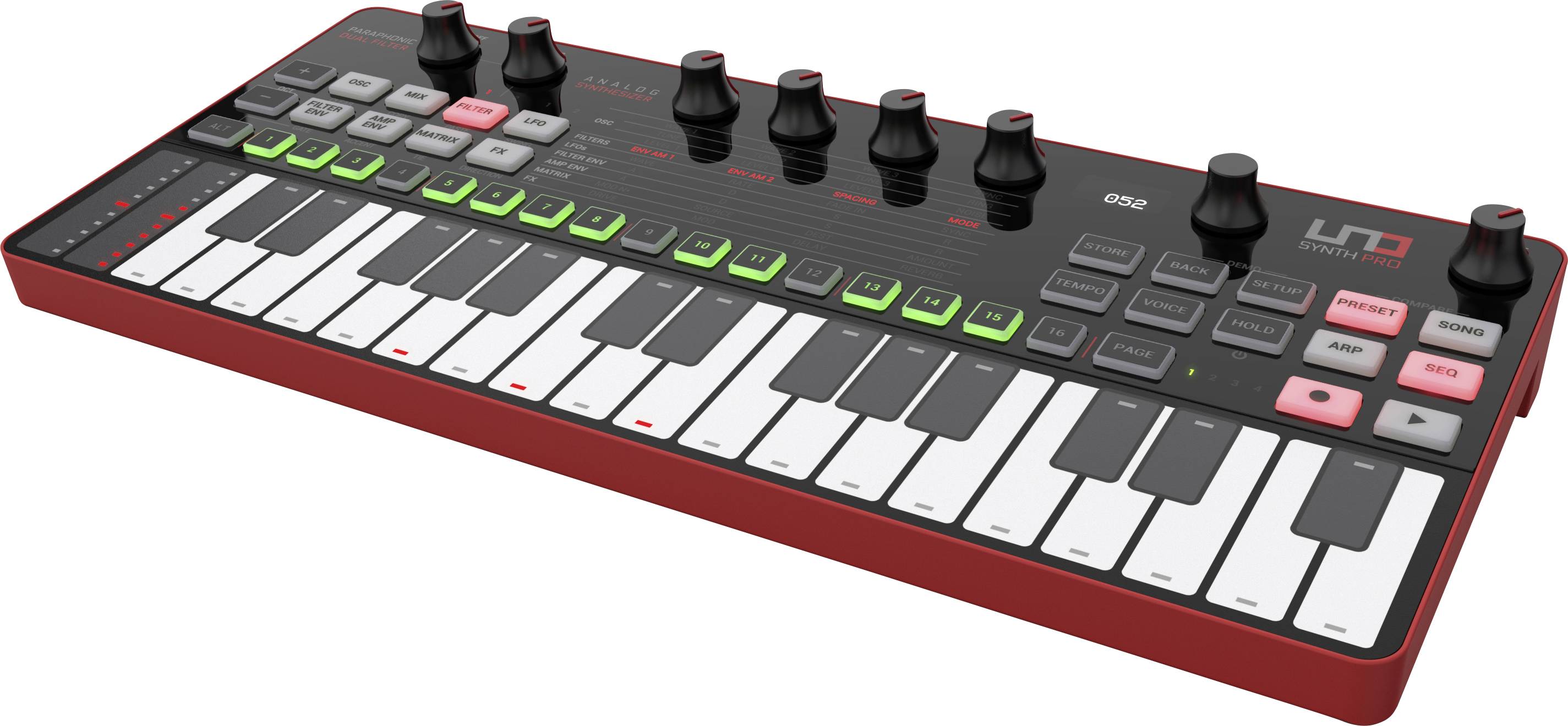

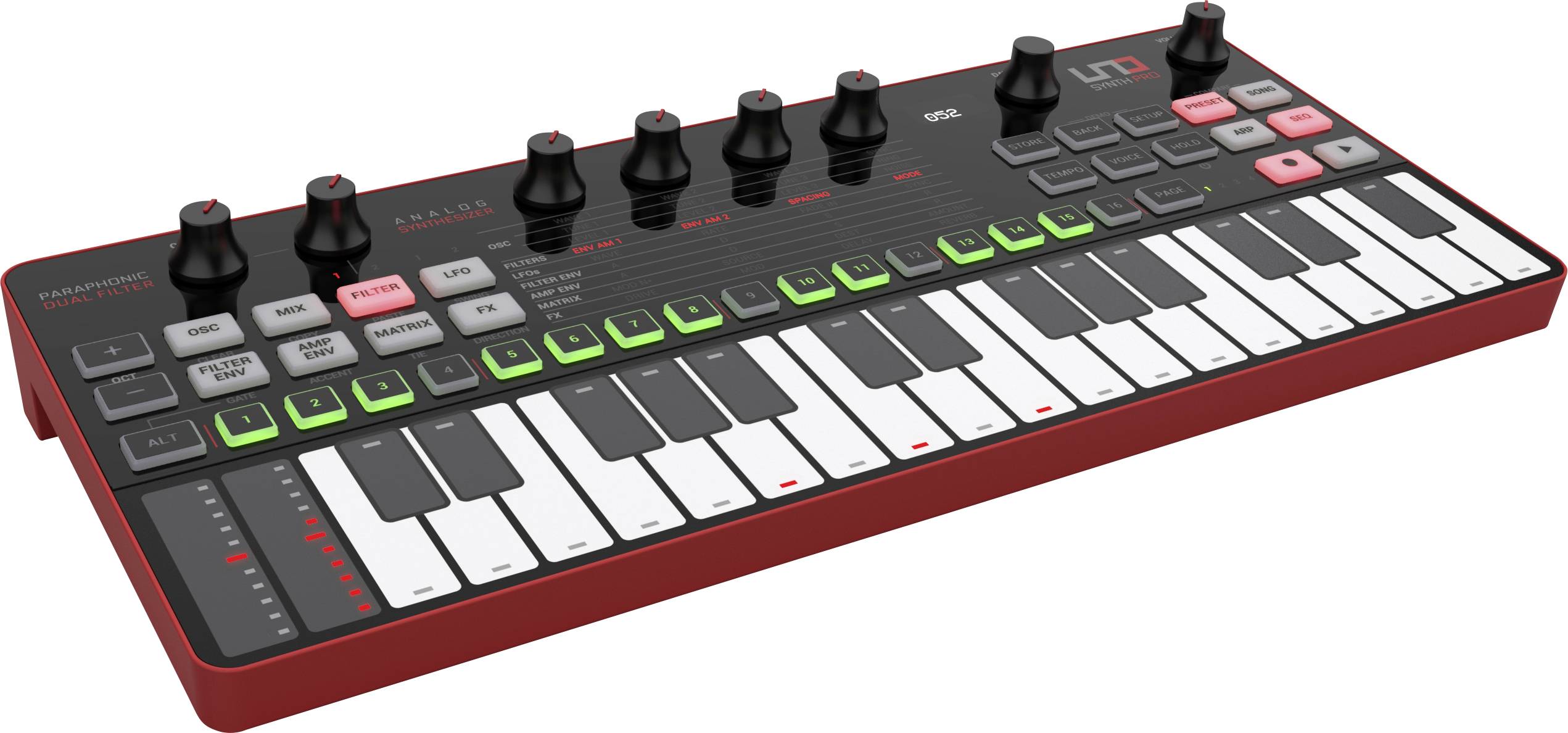

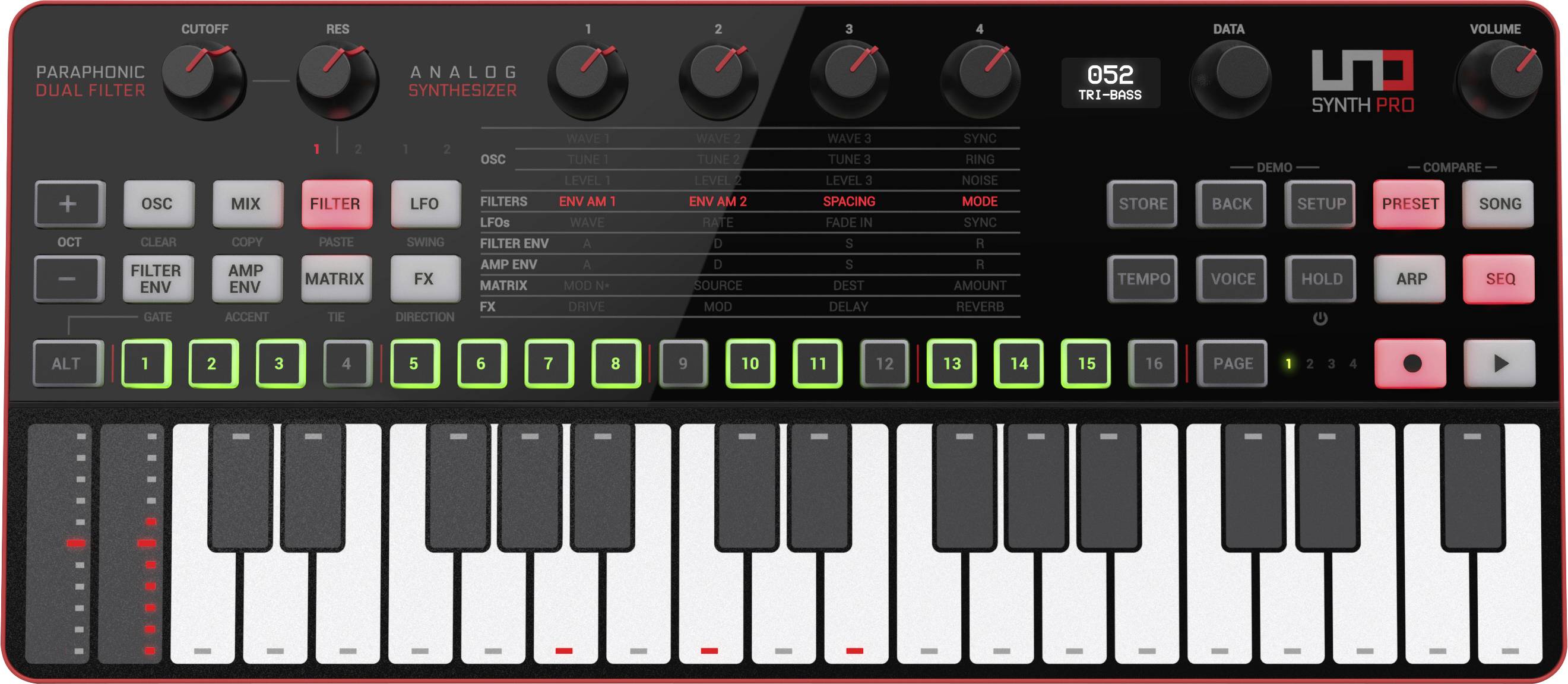

IK Multimedia UNO Synth Pro Desktop Synthesizer

Overview

Ultra-portable, paraphonic dual-filter analogueue synthesizer

Description

UNO Synth Pro was developed in cooperation with the Italian boutique synthesizer manufacturer Soundmachines and expands the popular mini synthesizer UNO Synth in almost all areas: More oscillators, more filters, more sequencer memory, more effects, more presets, More connections and more programmability.

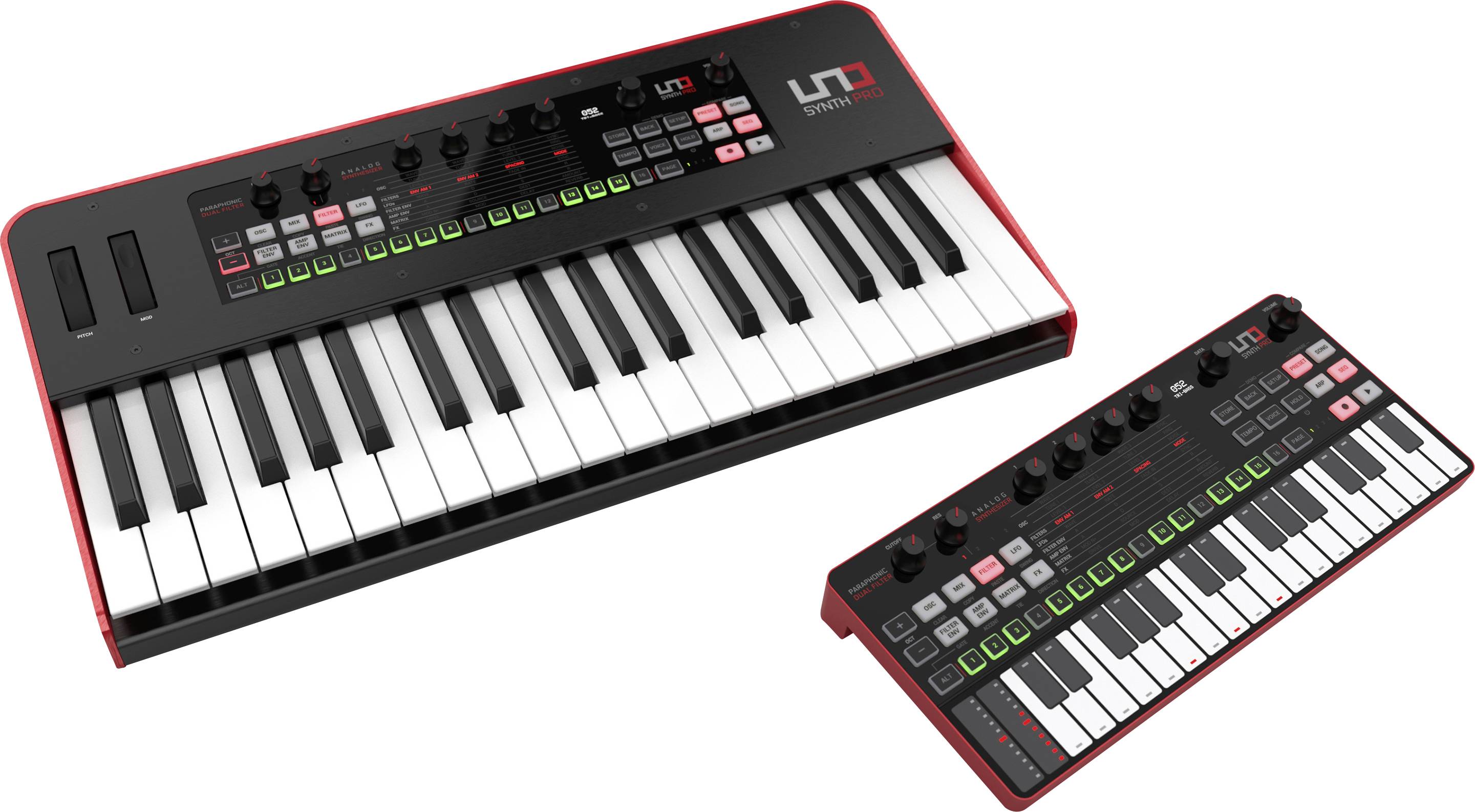

UNO Synth Pro is available in two housing variants to suit all players – stage-compatible with robust metal casing and premium synth-action Fatar keyboard or ultra-portable, USB-powered with capacitive keyboard – UNO Synth Pro offers everyone the next generation of analogueue sound design in an intelligent format that fits in every room and every budget.

3 analogue oscillators offer infinitely variable waveforms, including pulse width modulation. The oscillators can be hard-synced for more harmonically complex sounds, and the FM oscillator lets you create the full range from bell-like sounds to screaming industrial sounds. UNO Synth Pro even includes ring modulation for wobbly sci-fi sounds and a white noise generator that makes possible a wide range of percussive sounds and epic increases.

In addition to the 2-pin OTA multimode filter of the original UN synth, the UNO Synth Pro offers a new 2/4-pin LP filter with self-oscillation. The two filters can be used in series or parallel, with invertible phase, for a total of 24 possible filter modes. This unique design offers almost unlimited sound possibilities, from the reproduction of classic vintage sounds to the forging of completely new, experimental sounds.

UNO Synth Pro provides two complete ADSR envelopes, one of which is assigned to the filter and the other to the amplitude. Both are available as sources to modulate everything from oscillator pitch and waveform to LFO speed or even other envelope levels. Two LFOs can produce classic synth vibrato, wah and tremolo, as well as more complex modulations including a tone generator.

A 16-slot modulation matrix makes routing all of these functions a breeze. Users can quickly and easily design even the most demanding modulation scheme, with both internal and external sources, including MIDI controllers.

UNO Synth Pro has 256 editable presets, each of which shows the complete state of the sound engine from the oscillators to the effects. The integrated 64-step sequencer offers both step as well as real-time recording and the automation of over 80 parameters, with which unbelievably complex and developing sound landscapes can be created and even CV and Gate automation can be written.

Characteristics

Ultra-portable paraphonic analogue synthesizer
32 capacitive touch buttons
Pitch and mod strip
3 discrete oscillators including PWM, sync, FM and ring modulation
Two-stage variable filter with 24 modes, including original UNO Synth OTA filter
New SSI-based filter with self-oscillation
16-slot modulation matrix
256 user-editable presets
13 editable scales
12 studio-quality effects in 3 slots (reverbs, delays, modulations)
64-Step sequencer with 84 parameters
Arpeggiator with 10 modes
Complete MIDI implementation of all parameters as well as the clock

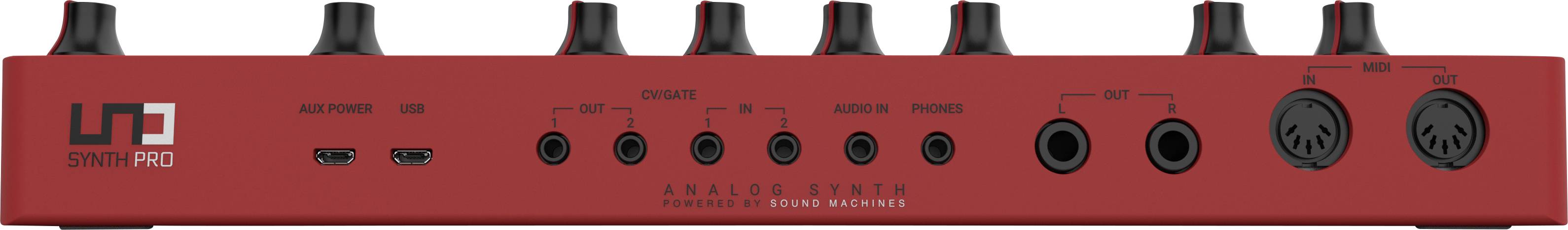

Noise-free, symmetric stereo output (2 x 6.3 mm jack)

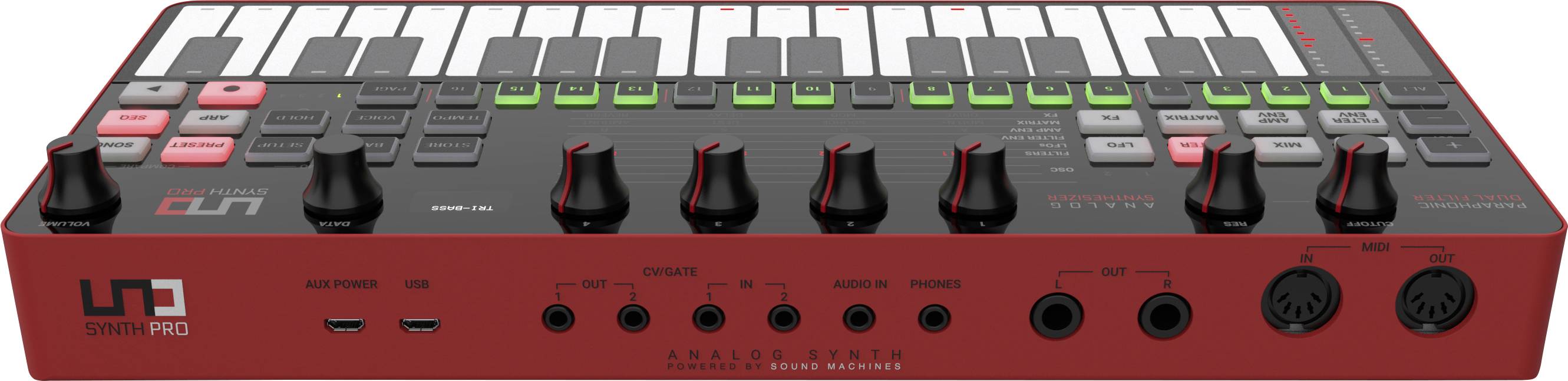

USB/MIDI/CV/Gate input/output
Audio input for filter, FX or pass-through
Power supply via USB or power bank
Including micro USB on USB cable
Ultra-portable plastic housing
Developed and manufactured in Italy
Dimensions (W x D x H) 250 x 140 x 50 mm
Weight: 700 g

Delivery content

• Micro USB to USB cable
