Overview
Compact, absolutely silent mini PC
Stream 4K videos, play online games, surf the web
Intel quad-core processor with 4x 2600 MHz, 128GB eMMC SSD
4 GB RAM, AC WLAN 867MBit, Bluetooth 4.2, SD slot, USB
Windows 10 Pro, 64-bit

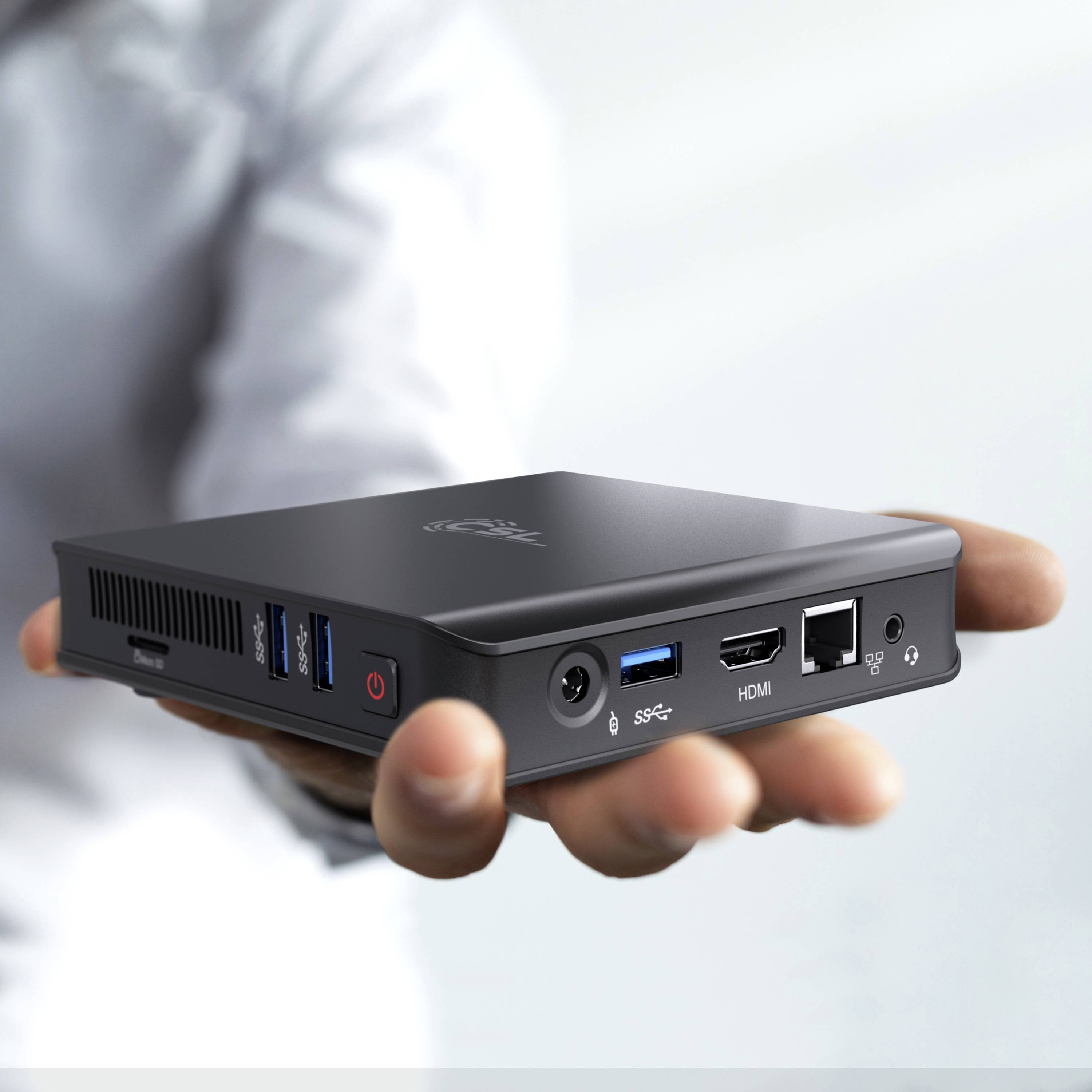

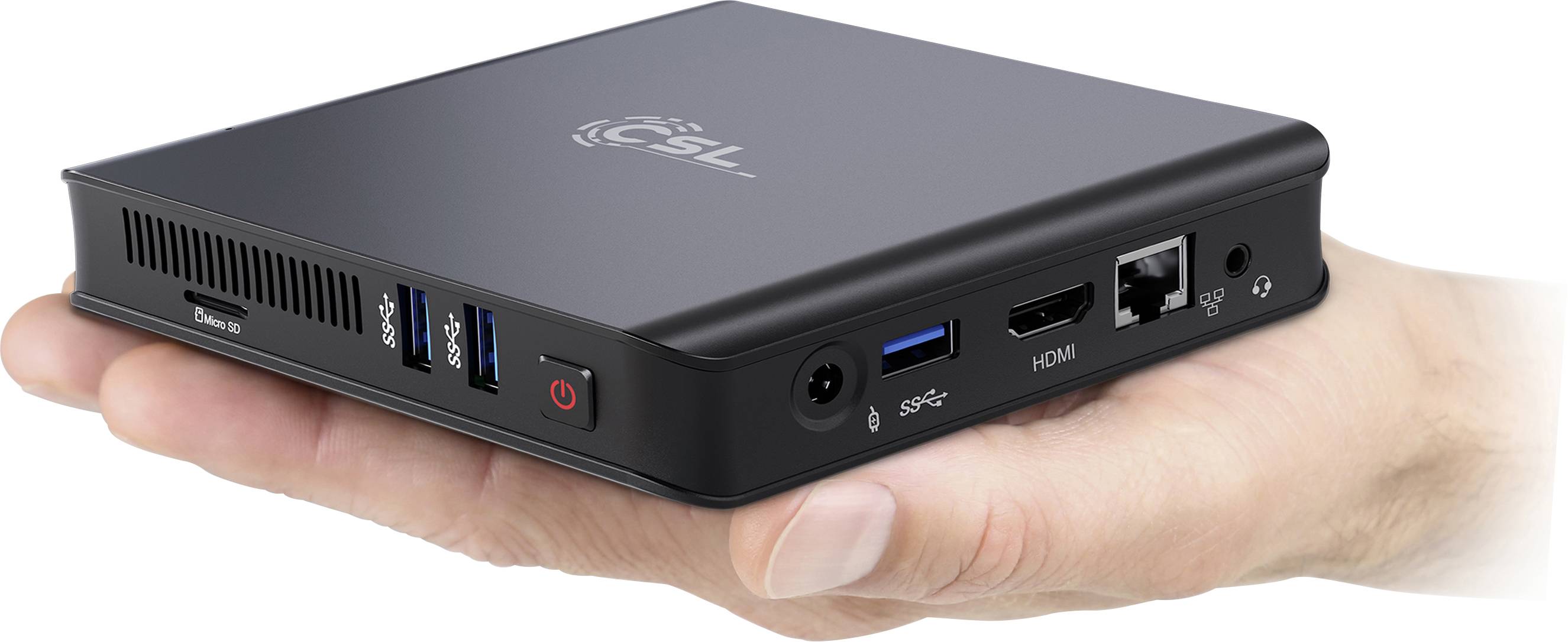

CSL Computer Narrow Box Ultra HD Compact v4 Mini PC Intel N4120 (4 x 1.1 GHz / max. 2.6 GHz) 128 GB eMMC Win 10 Pro
Product description
Description

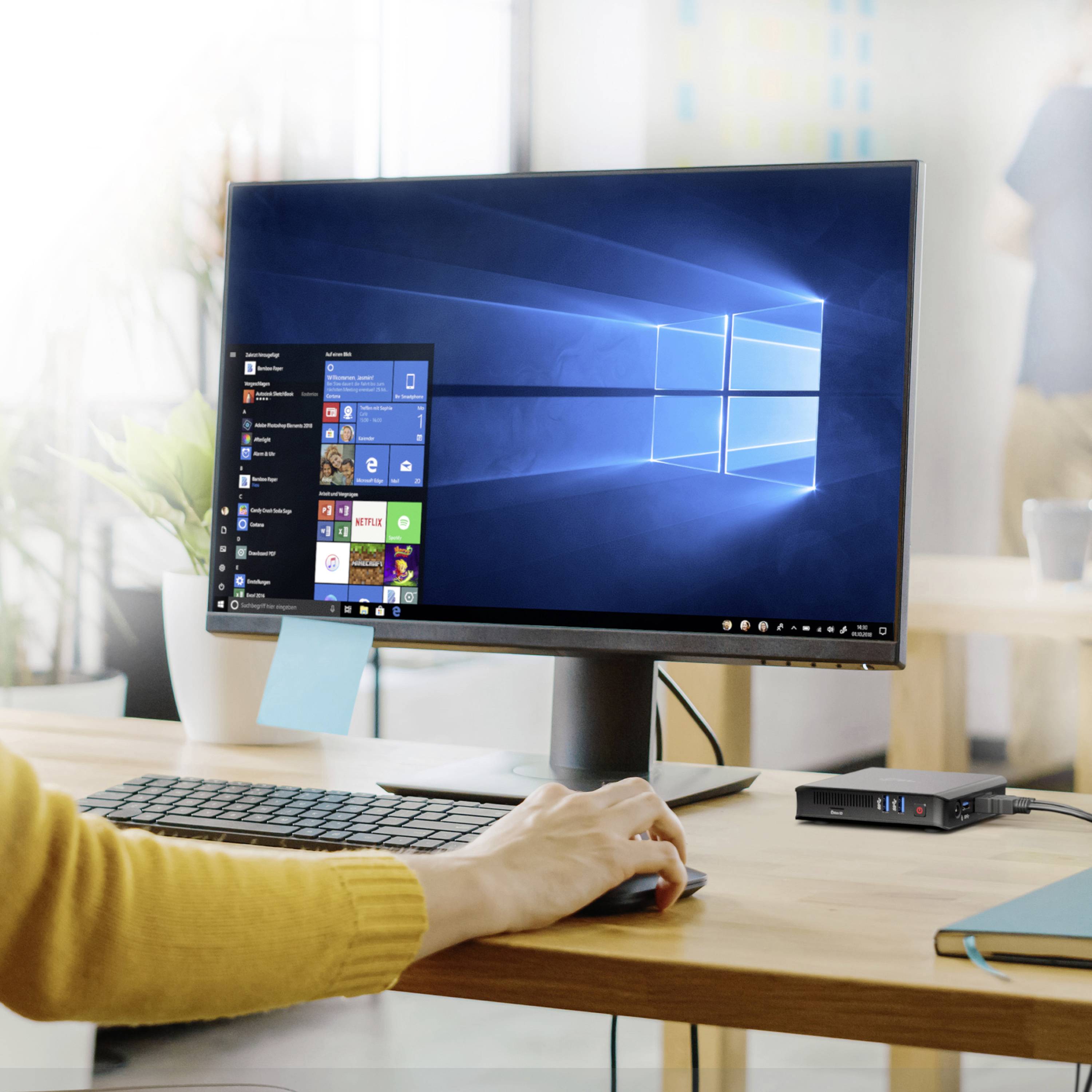

The CSL Narrow Box Ultra HD Compact v4 / Windows 10 Pro is the latest model of our popular Narrow Box Mini PC family. The ultra-compact, powerful and absolutely silent concept of the Narrow Box UHD Compact makes it a perfect choice as an office PC and 4K media PC. Whether in the office, living room, home office or at receptions and in showrooms - the small box can be optimally integrated almost everywhere.
Surf quickly in the net, use all the usual Office-Apps with hohem comfort and experience pin-sharp home entertainment in UHD 4K - completely undisturbed, because the Narrow Box is equipped with an efficient passive cooling system, which works at all times silently.
The Intel® N4120 quad-core processor accelerates your applications significantly, while the built-in GB of eMMC memory provides enough memory for the pre-loaded Windows 10 Pro and your most important data. Integrated AC WLAN enables fast wireless WiFi connections in the 2.4 and 5 GHz frequency band, via Bluetooth® and USB 3.1 you can comfortably connect your peripheral devices and the easily accessible M.2 slot offers an upgrade option for an M.2 2242 SATA SSD. In addition, the storage space can be extended by up to 512 GB via microSD card.
Characteristics
CPU: Intel® Celeron® N4120, 4× 2600 MHz Intel® Burst
CPU cooler: Passive CPU cooler, silent
Hard drive: 128 GB eMMC, SSD memory, optionally expandable with M.2 SATA (2242)
MEMORY: 4 GB DDR4-RAM
Intel® HD Graphics 600 with Intel® Quick Sync Video, Intel® Clear Video HD Technology & Intel® Wireless Display, 1× HDMI 2.0, 1× VGA
Motherboard: Mini-desktop mainboard, SoC, 3× USB 3.1, HDMI 2.0 output (audio/video), micro-SD card reader (SDXC/SDHC, max. 512 GB), 1× headphone out, Bluetooth 4.2, 1× M.2 2242 SATA
Network: 10/100/1000 MBit/s Gigabit Ethernet LAN
WLAN: 867 MBit/s Wireless LAN, Intel® AC 7265, 802.11 a/b/g/n/ac WLAN, 2.4 GHz & 5 GHz dual band, Bluetooth 4.2
Sound: Integrated onboard 5.1 controller, HD audio, 5.1 via HDMI, stereo via jack output
Card reader: Micro-SD card reader for SD/SDHC/SDXC up to max. 512 GB

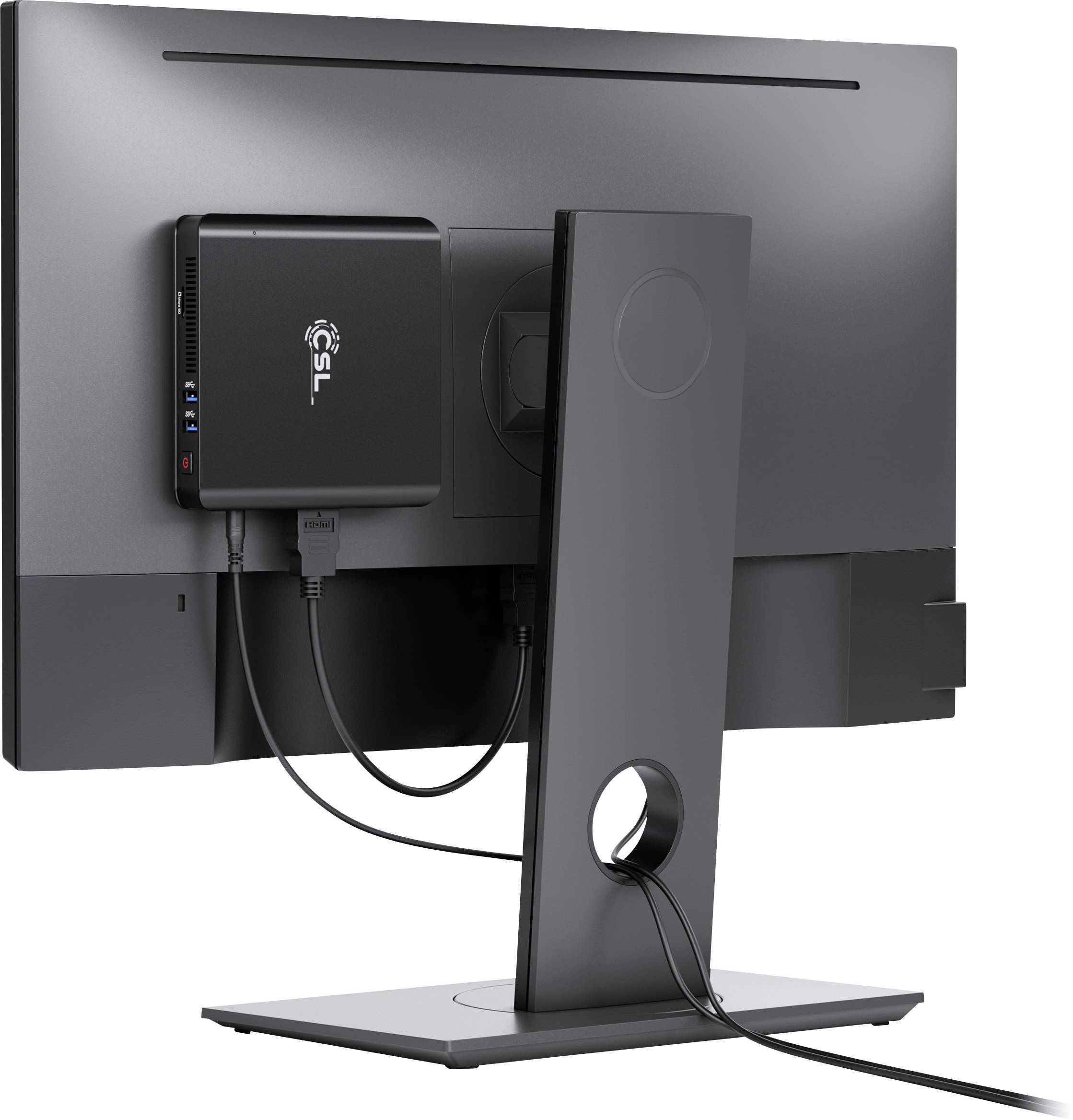

Housing: Mini-PC housing, black, 121 × 121 × 26 mm, with base, including VESA bracket
Power supply: External 12V / 2.5A power supply, silent
Extras: 2m HDMI cable
Operating system: Windows 10 Pro, 64Bit, pre-installed
Information
HDMI® is a registered trademark of HDMI Licensing, LLC.
Image may differ from actual product.
Free upgrade to Windows 11

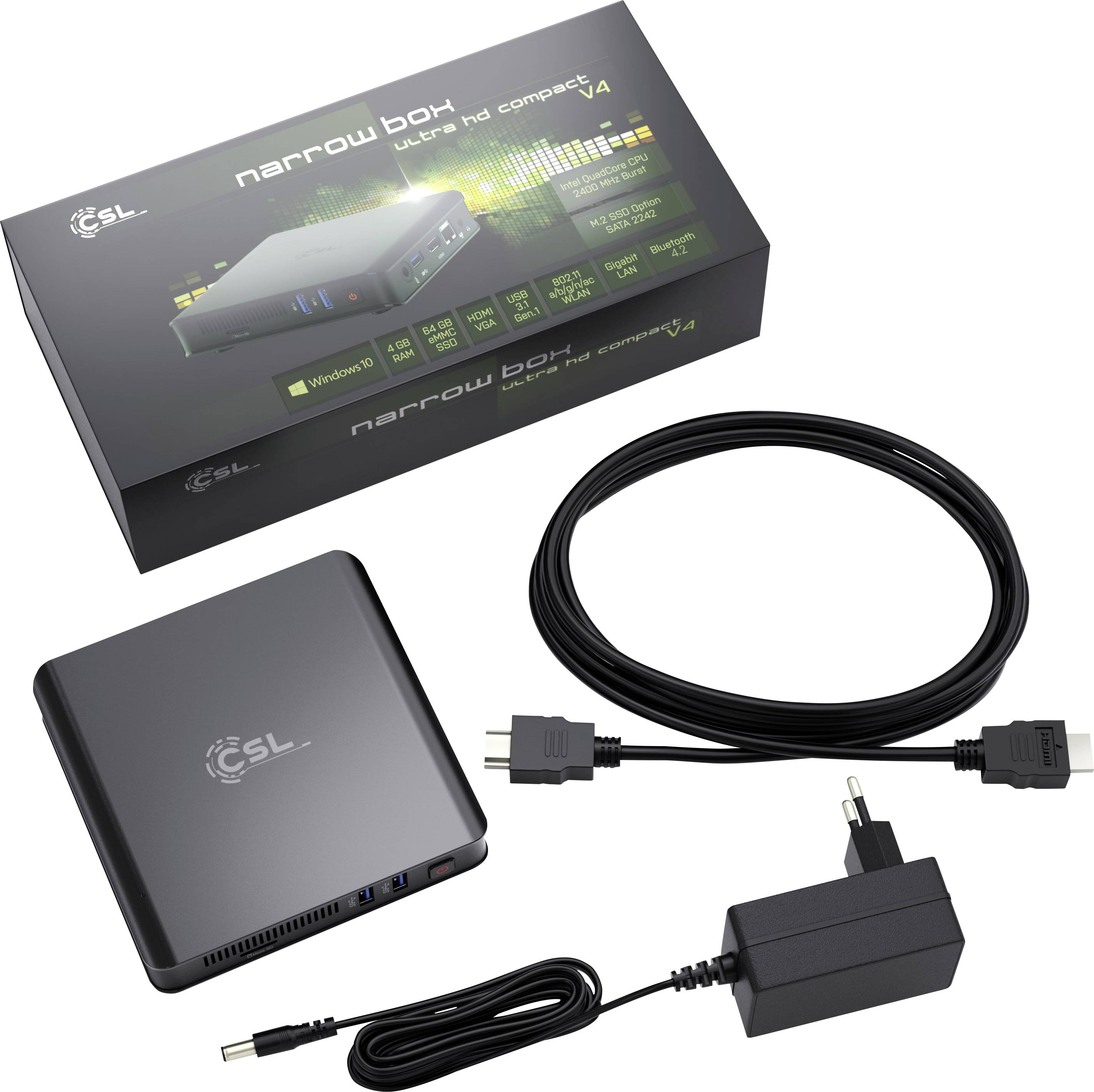

Delivery content
Incl. Power supply
Keywords
N/A, CSL Computer, 81574, Narrow Box Ultra HD Compact v4, HTPC, PC
Other notes
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
