Precise output signal and highest measurement accuracy Simulates 10 different types of thermocouples Simulates 4 different types of resistance temperature sensors (RTD) Step and ramp functions for fast linearity detection Brightness adjustment of the LCD background lighting for easy reading of the measured data 200,000 counts Store frequently used settings for greater convenience Direct current source, range 0 - 1000 mV 3-conductor or 4-conductor operation possible (optional test leads necessary)
Description

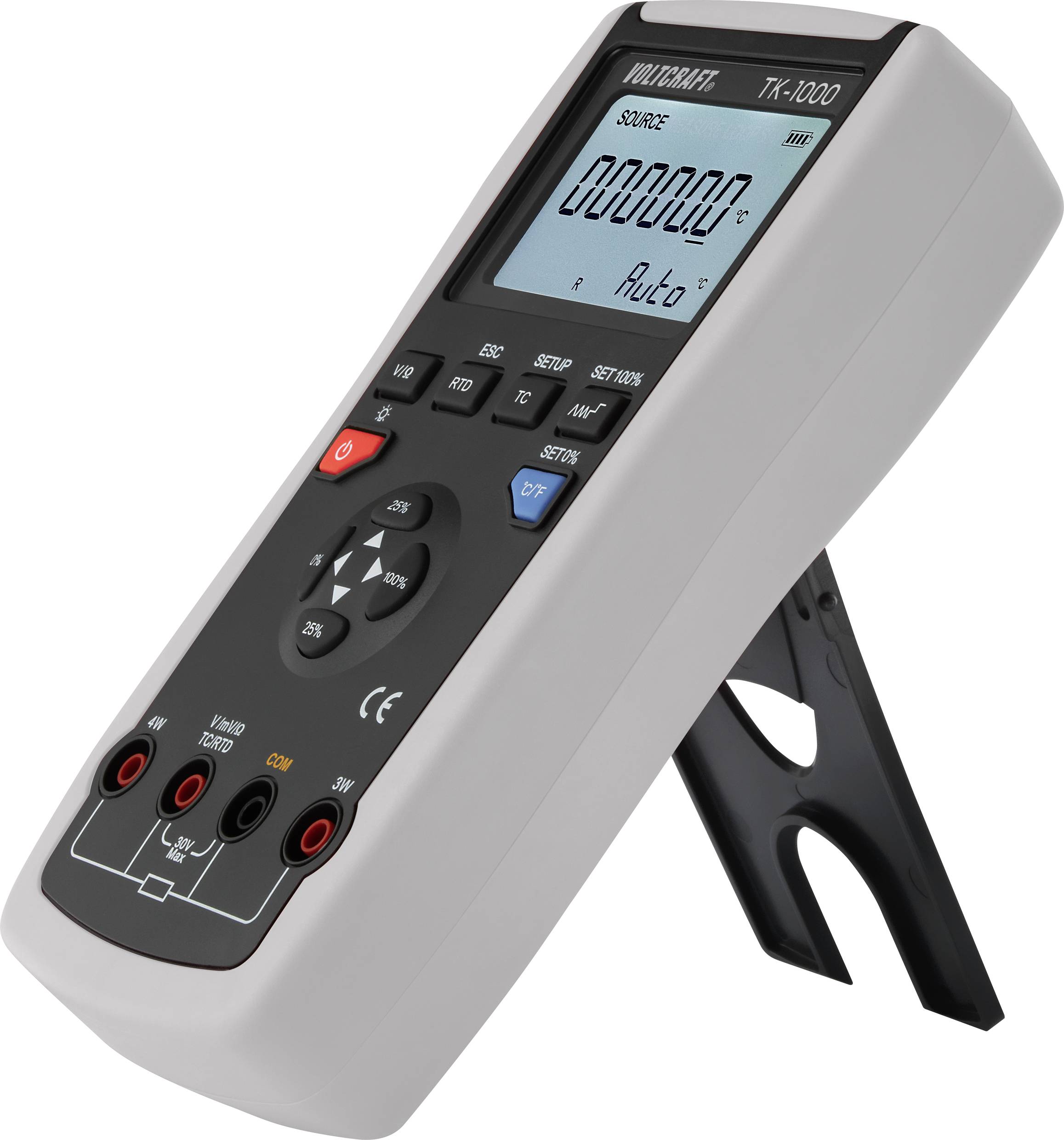

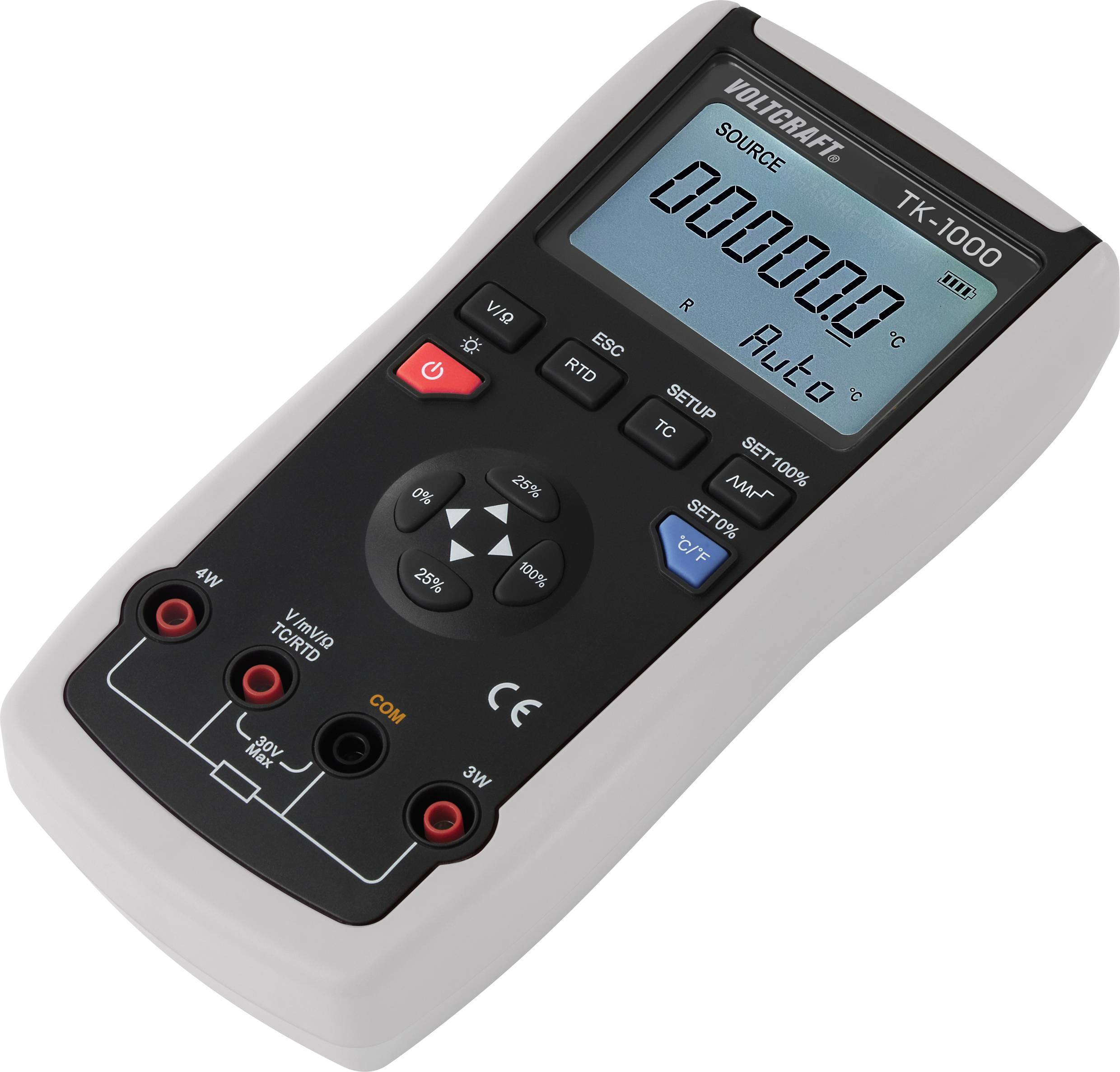

Accurate calibration The VOLTCRAFT TK-1000 is the perfect all-rounder for professional measurement applications. The calibrator simulates ten different types of thermocouples (J, K, T, E, R, S, B, N, Wre325, Wre526) and four different types of resistance temperature sensors (RTD type: Pt100, Pt10, Cu50, Cu100). Step and ramp functions are available for fast linearity detection. In addition, the TK-1000 offers high output and measurement accuracy of up to 0.05% steps.

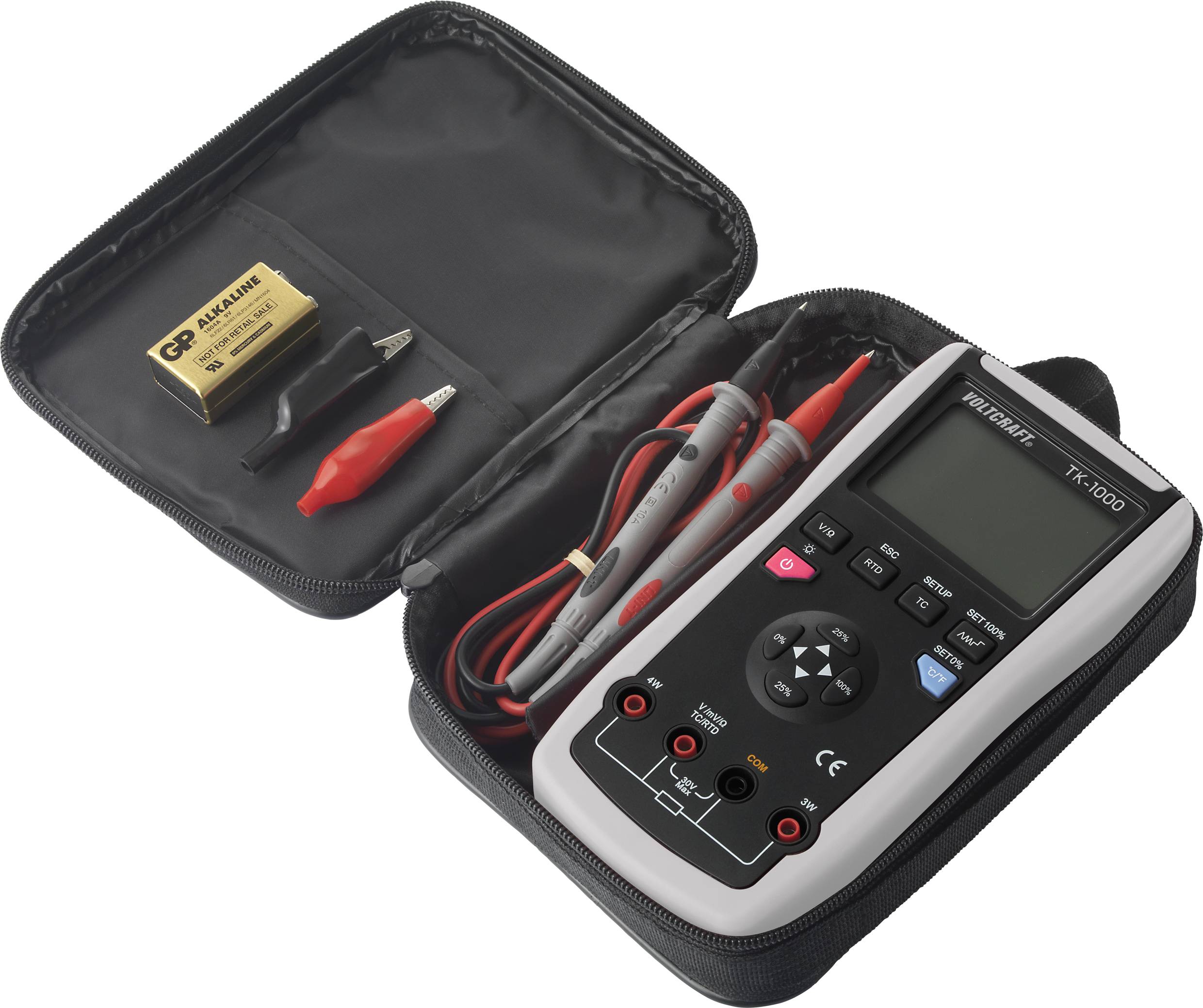

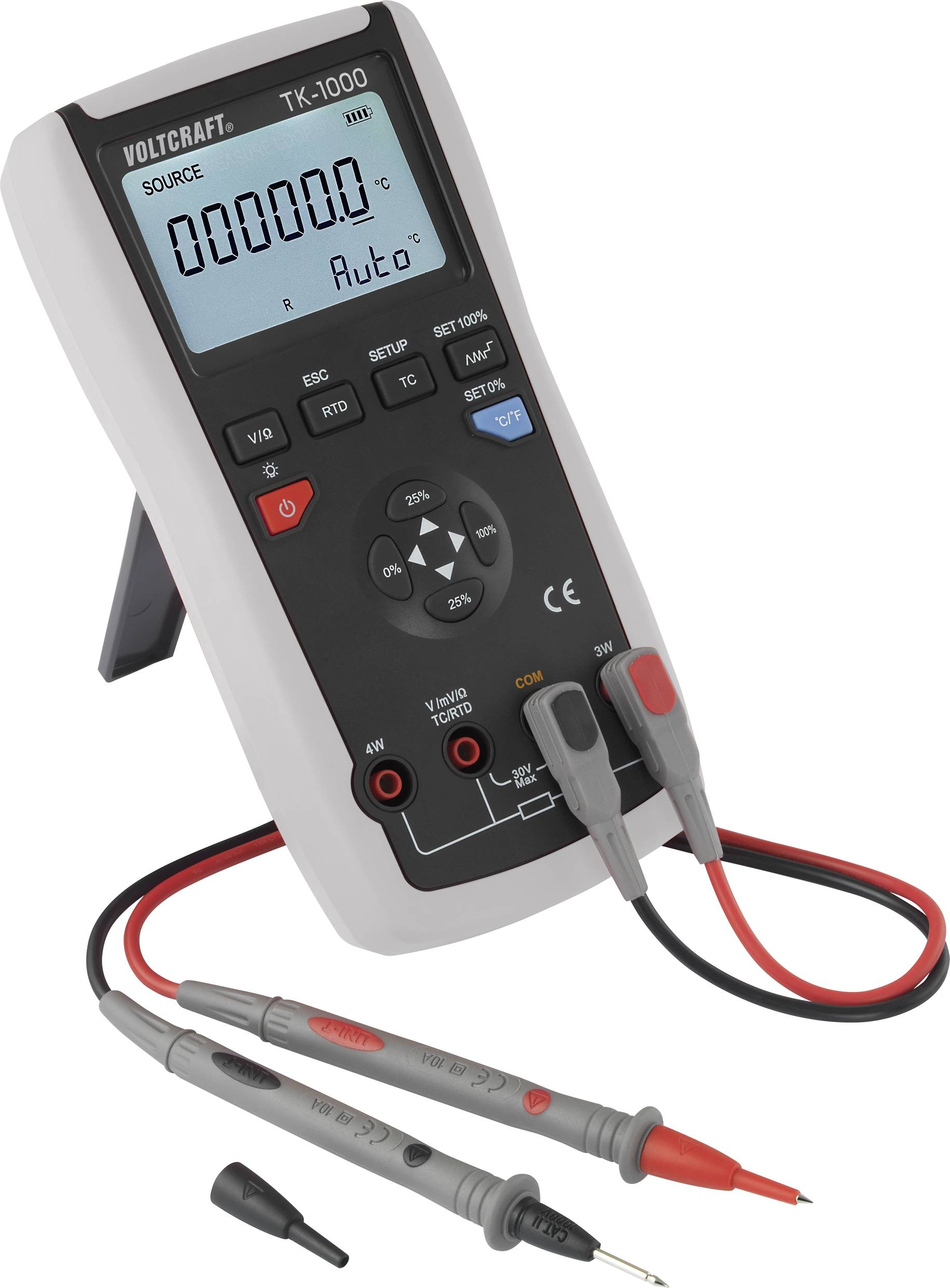

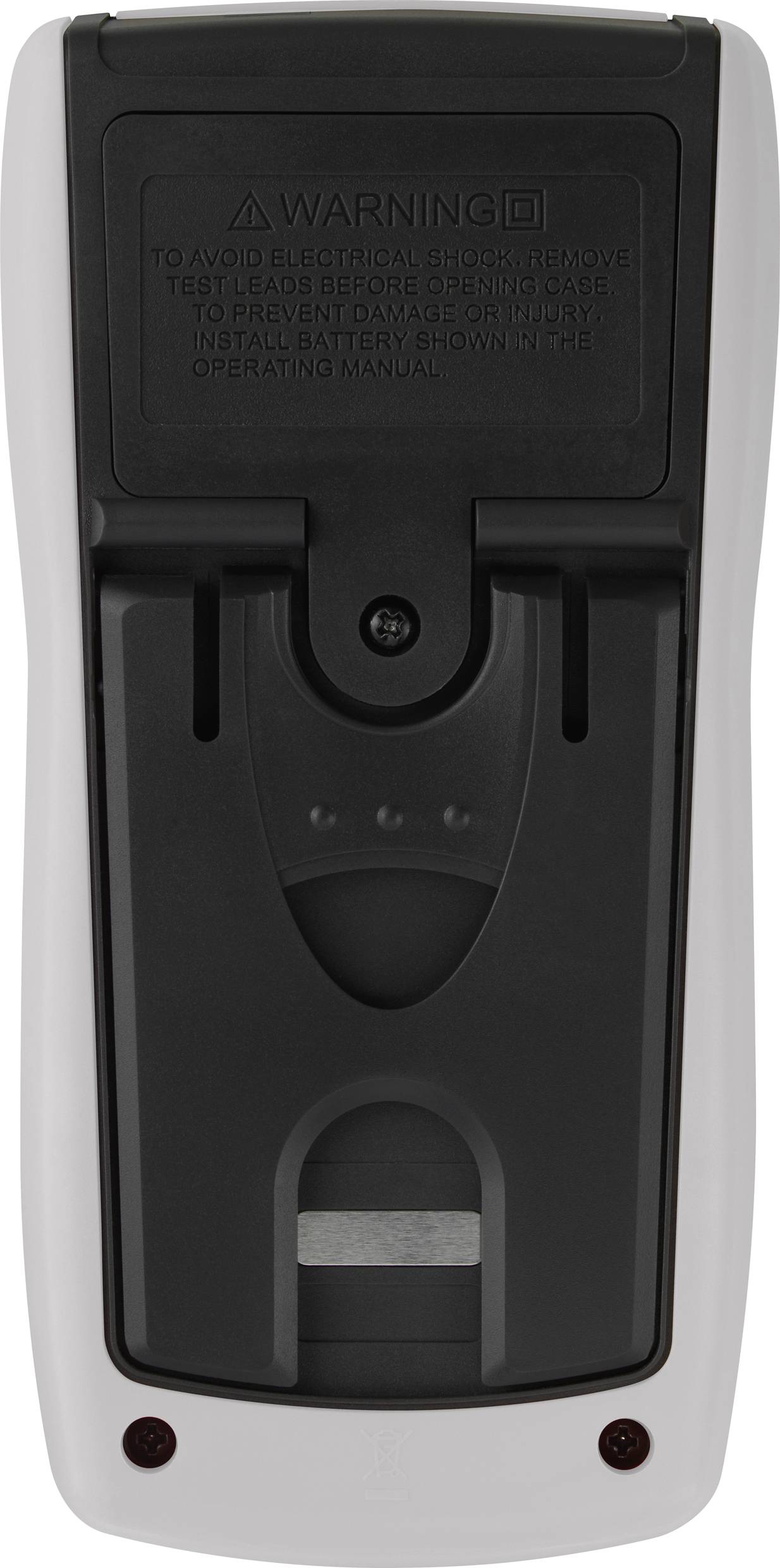

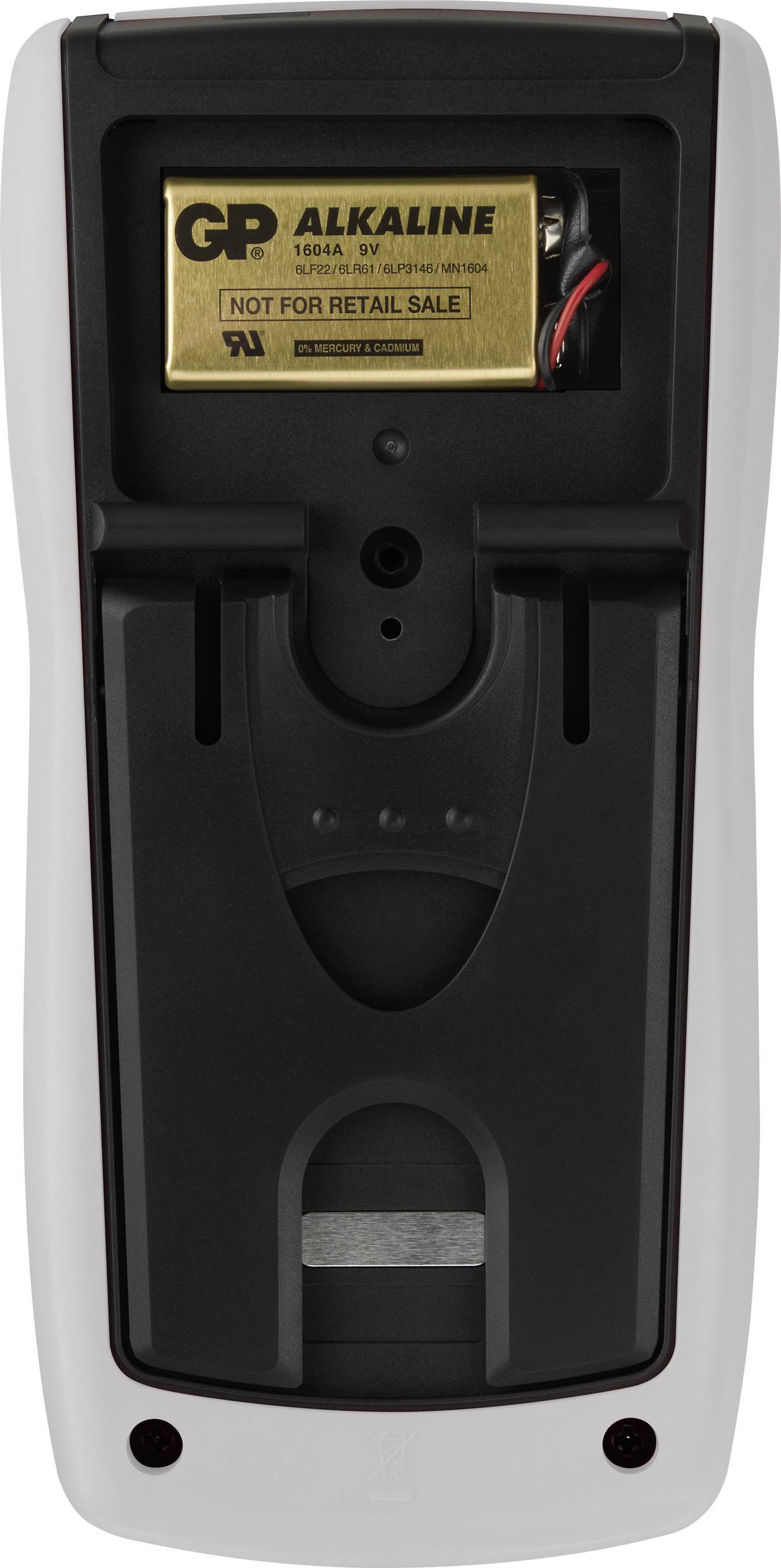

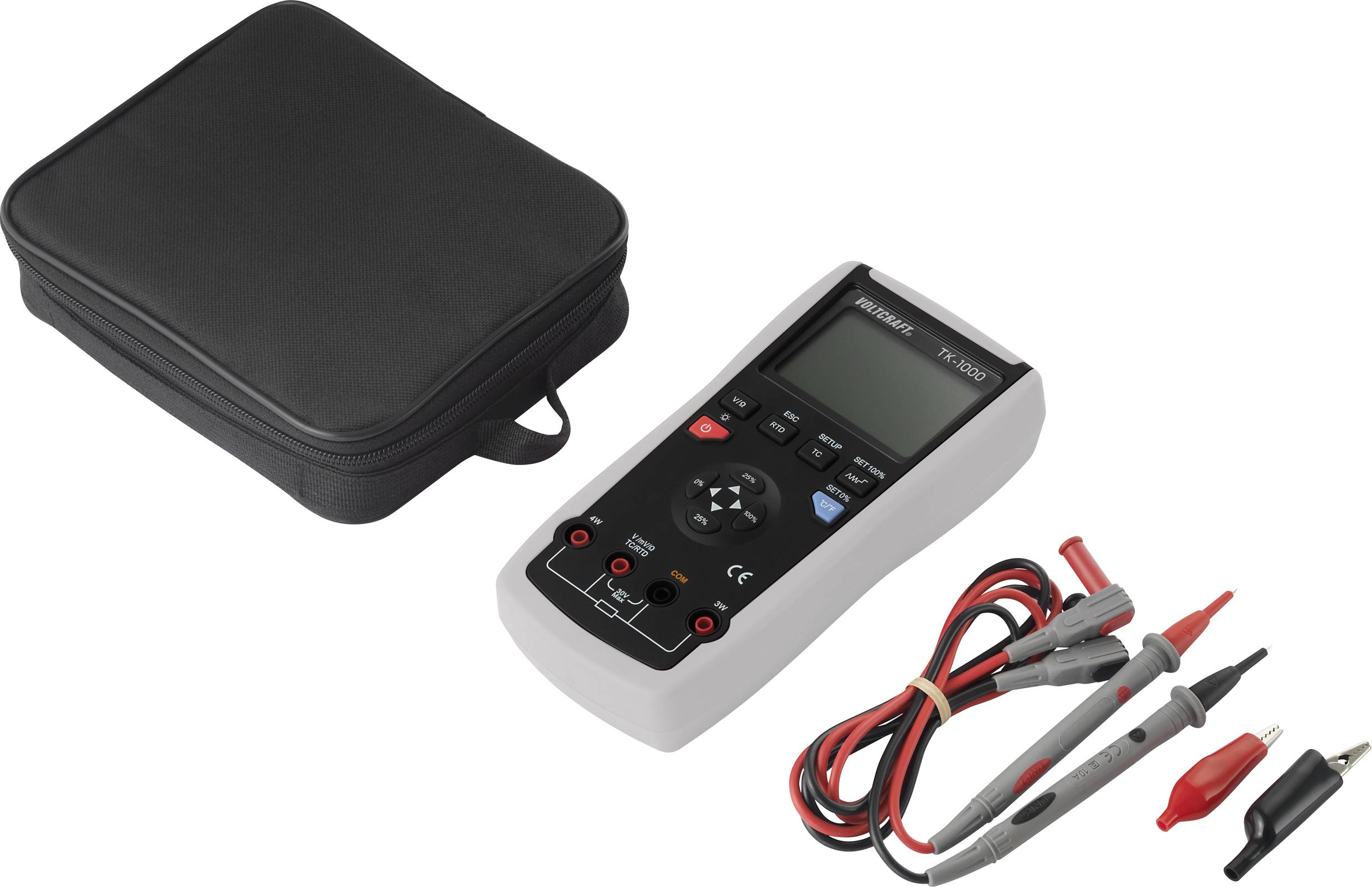

Working in comfort The calibrator from VOLTCRAFT has other helpful features for easy and convenient working: This allows you to save frequently used settings and the background lighting of the LC-display can be adjusted individually depending upon the lighting situation at the workplace. The display of the temperature values, which can be displayed in °C as well as in °F. If the device is not used for a longer period of time, it switches off automatically. And if the display indicates a weak battery, it can be replaced easily and comfortably. The delivery includes everything, WAS is required for immediate use: In addition to the calibrator, one pair of test leads, two attachable alligator clips, a 9V battery, the manual as well as a convenient carrying case.
Characteristics
Thermocouple type J, K, T, E, R, S, B, N, Wre325, Wre526RTD type: Pt100, Pt10, CU50, Cu100Automatic/manual temperature compensationAuto switch-off°C/°F displayLow battery indicatorConvenient battery replacement
