Whadda WPSE326 LINE-Tracking-Sensor TCRT5000-Module

Sold out
Whadda WPSE326 LINE-Tracking-Sensor TCRT5000-Module
Sold out

Product description

Description

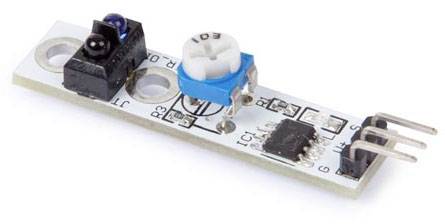

The TCRT5000-based line tracking sensor is a type of infrared reflection sensor and is typically used in the following robots, mounted on the bottom of the robot chassis. The line tracking sensor works by detecting reflected light coming from its own infrared LED, and by measuring the amount of reflected infrared light, it can detect transitions from light to dark (lines) or even objects directly in front of it.

Characteristics

The sensor uses TCRT5000, high sensitivity * sensitivity adjustable by potentiometer * working voltage: 3.3V - 5V * operating current: 20mA * digital switch output (0 and 1) * has 2 fixed bolt holes, convenient installation * small board PCB size: 42 x 10.5 mm * Performance indicator light (red) and digital switching indicator (green) * Detection reflection Distance: 1 mm - 25 mm

Keywords

00810036661171, 05410329725662, Whadda, WPSE326, arduino
