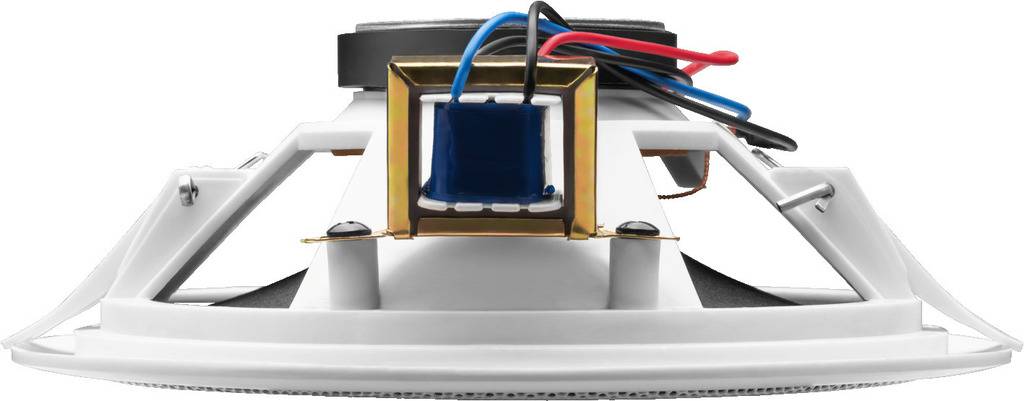

1x EDL-6 ELA Ceiling Loudspeaker, 8W
100‑V‑Transmission technology
15 cm broadband loudspeaker (6")

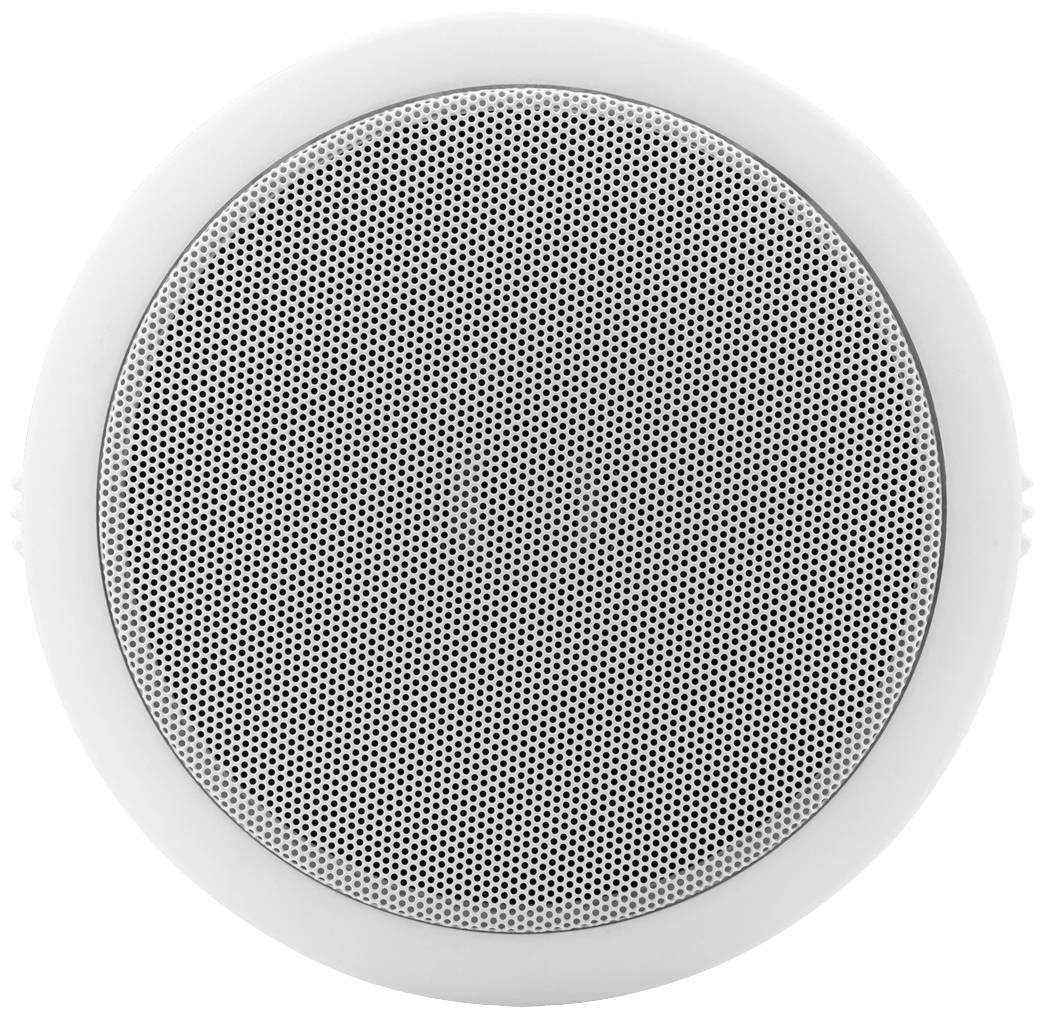

Plastic housing with metal grillee
Power tap 8 W
Quick installation device with spring clamps
Connection via screw terminal
For cover thickness 5-25↔mm
EDL-6, ELA Ceiling Loudspeaker: This broadband speaker for installation has a diameter of 15 cm (6") and is operated with 100 V technology. The nominal load is 8 W. The plastic housing is equipped with a metal grillee. The mounting in a cover thickness of 5 to 25 mm is facilitated by a quick mounting device through spring clamps.
Transmission technology 100 V
Frequency range 90-18000 Hz
Nominal load (RMS) 8 W
Characteristic sound pressure 90 dB/W/m
Max. Nominal sound pressure 99 dB
Horizontal angle of radiation 90°
Vertical angle of radiation 90°
Voice coil diameter: Ø 20 mm

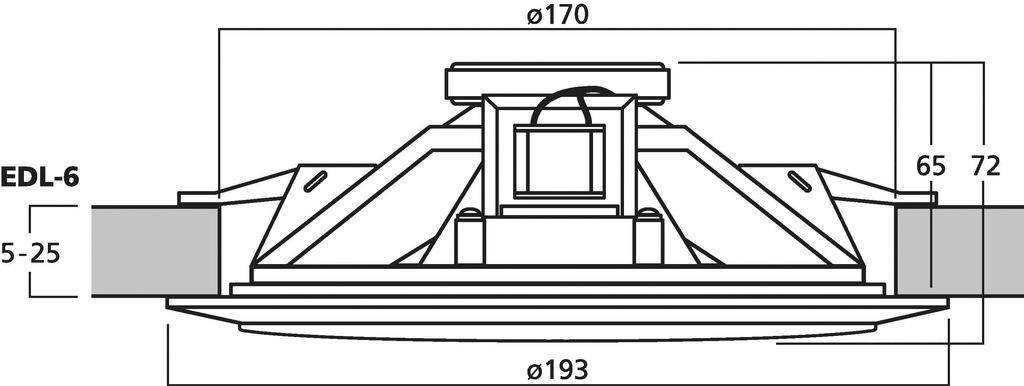

Mounting hole dia. 170 mm.
Mounting depth: 65 mm
Dimensions Ø 193 mm x 72 mm
External diameter Ø 193 mm
Width Ø 193 mm
Depth: 72 mm
Colour: White
Permissible operating temperature: 0-40 °C.
Weight: 476 g
Packing unit: 1
Speaker type 150
Packaging dimensions (W x H x L): 0.075 x 0.19 x 0.196 m
Gross weight: 0.542 kg
Net weight: 0,476 kg
