Metrel MI 3108 PS VDE tester kit

Description

The MI 3108 EurotestPV is a measuring device for the combined testing of photovoltaic systems and electrical installations. With this device, complete tests of electrical systems according to the standard EN 61557 as well as all necessary tests of single-phase photovoltaic systems are possible. This includes all tests according to EN 62446 and additionally the determination of the I-U characteristic curve, the calculation of the STC values and the power measurements of inverters on both the DC and AC sides. The device is designed for demanding working conditions (up to 1000 V, with 5 A DC). In order to significantly improve user safety, the MI 3108 EurotestPV is supplemented by a PV safety probe, which ensures a safe separation at all times.

Characteristics

Photovoltaic systems:Calculation of STC values: The measured values for current and voltage are recalculated according to the ambient conditions in comparison to the standard conditions, which enables results to be compared even under different test conditions.Graphic representation: The I-U characteristic curve of the PV module or string is displayed graphically on the LCD display.Power and Efficiency Measurement: Two voltage and two current measurement channels are available for DC and AC measurements.PV Remote Unit: A remote unit is available as an option for simultaneous solar radiation and temperature measurements of the PV module.Electrical installations:RCD Auto: The automatic RCD test method significantly reduces the test time.ZS without RDC tripping: The loop impedance check is performed without triggering the RCD.Test of a type B RCDs: Is supported.Earth resistance measurement: The meter supports the resistance test of a three-wire ground.Integrated safety characteristics: These boards allow an automatic evaluation of the line/loop impedance values.Online voltage monitoring: This function allows real-time monitoring of all three voltages.Oscilloscope function: Real-time oscilloscope for U/I values.Harmonics analysis: Power and energy measurements in one phase and analyzes up to 11. Harmonic is supported.Memory: Up to 1800 test results or 500 graphical representations with time code can be stored in the internal memory.Connectivity: The connection option with Android tablets and smartphones is optionally available via the dongle.Downloads: The EuroLink PRO PC software enables the download, revision, analysis and printing of the test results.

Information

Supplied with German license.

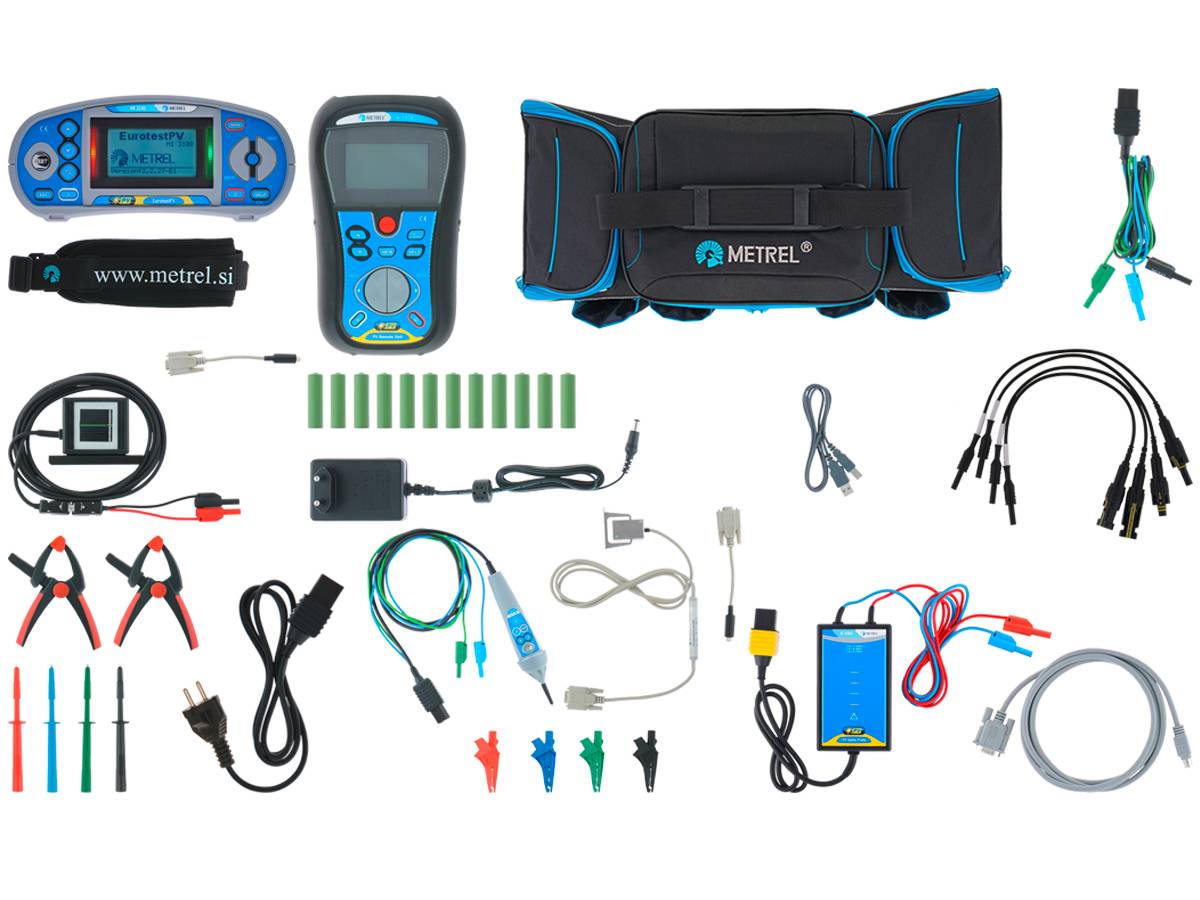

Delivery content

• Test device MI 3108 EurotestPVEurotestPV remote unit
• adapterCommander test tipLarge carry caseTest cable with Schuko plug 1 mTest lead, 3 x 1.5 mTest probes, 4 (red, green blue, black)Alligator clips, 4 pieces (red, green, blue, black)Fixing pliers, 2
• adapterTemperature probe
• adapterPower supply
• 6 NiMH rechargeable batteries, type AAUSB- and RS232 - PS/2-cablePC-Software EuroLink PROCarrying strap set, 2 piecesQuick start guide, 2 piecesOperating instructions and manual on CDCalibration cert
