Metrel MI 3109 ST VDE tester kit

Description

The MI 3109 EurotestPV Lite is a test device for photovoltaic systems (PV). All necessary tests for photovoltaic systems can be carried out with this. This includes all tests according to EN 62446 and also the display of the I-U characteristic curve, the calculation of STC values and power measurements on the DC and AC sides of the inverter (only single-phase systems). The MI 3109 EurotestPV Lite has been optimized for PV testing and therefore has an automatic test mode that can carry out all the necessary measurements for testing photovoltaic systems in accordance with EN 62446 at the push of a button. With this measuring device, the first inspection on PV systems as well as the periodic maintenance tests, evaluation tests and fault searches are possible. With the optional accessories, the device has the same range of PV test functions as the MI-3108 EurotestPV.

Characteristics

Insulation and I-U characteristic measurements with one measuring instrument: With the MI 3109, only one measuring instrument is needed to measure insulation with up to 1000 V for the safety test of PV systems and I-UPerform characteristic measurements for evaluation and troubleshooting of PV modules or strings.Autotest: This function has been set up to perform a complete test set according to EN 62446 on PV modules or strings by pressing a key:Insulation resistance between positive electrode and earthing;Insulation resistance between negative electrode and earthing;Open-circuit voltage;Short circuit current.Comparison with STC values: Current and voltage readings are recalculated according to environmental conditions compared to standard conditions, allowing results to be obtainedCompare different measurements even under different test conditions.Efficiency calculation: Two voltage and two current measuring channels are available for DC and AC measurements.PV Remote Unit: A remote unit is available as an option for simultaneous solar radiation and temperature measurements of the PV module.Graphic representation of the I-U characteristic curve of the module: The I-U characteristic curve of the PV module or string is displayed graphically on the LCD display.Memory: Up to 1800 test results or 500 graphical representations with time code can be stored in the internal memory.Network provider connection: The connection option with Android tablets and smartphones is optionally available via the dongle.Downloads: The EuroLink PRO PC software enables the download, revision, analysis and printing of the test results.

Information

Supplied with German license.

Delivery content

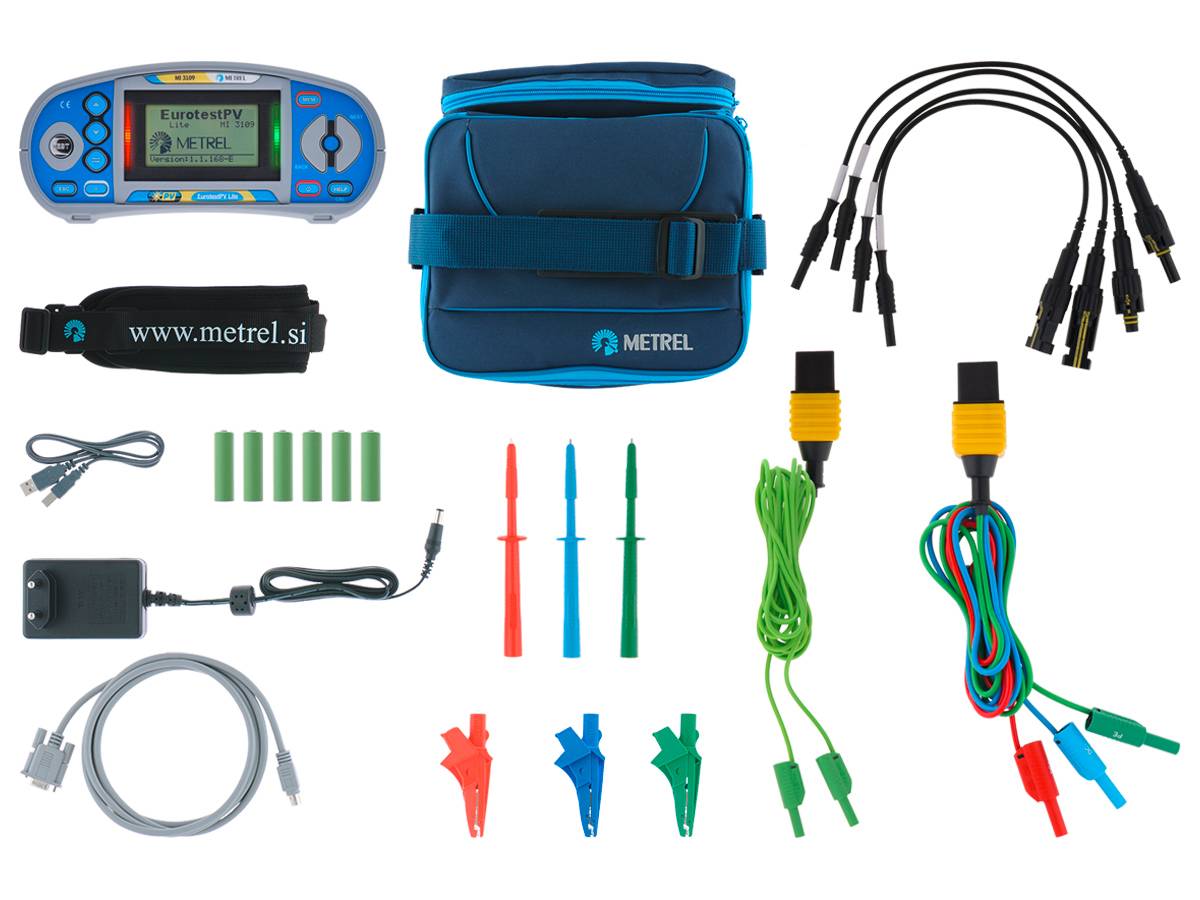

• Test device MI 3109 EurotestPV LiteEurotestPV remote unitPV safety probePyranometersTemperature probesSoft carrying case, 2 piecesUniversal PV test cable, 3 x 1.5 mPV Measuring cable, 2 x 1.5 mTest pr
• 6 NiMH rechargeable batteries, type AAUSB- and RS232 - PS/2-cablePC-Software EuroLink PROCamera strapQuick guideOperating instructions and manual on CDCalibration certificate
