Metrel MI 3201 Insulation tester 10 Ω

Description

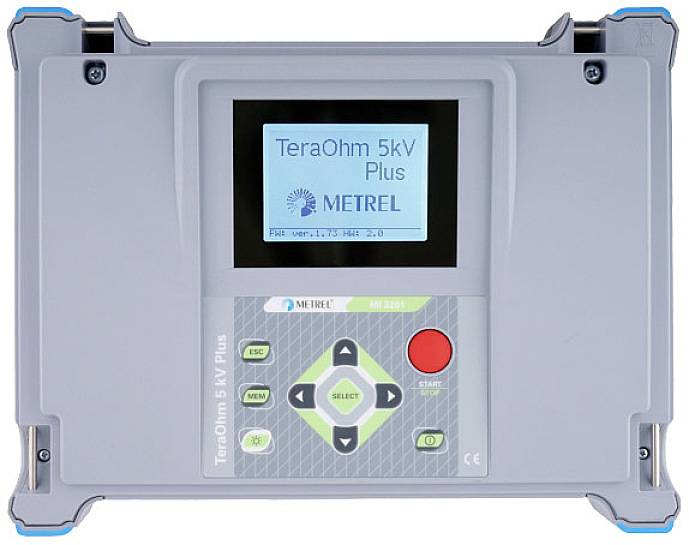

The new MI 3201 TeraOhm 5 kV Plus insulation tester is a portable measuring device for measuring insulation resistance using high DC test voltages up to 5 kV. The TeraOhm 5 kV Plus enables insulation resistance measurements up to 10 TΩ, step voltage tests, high voltage tests, PI, DD and DAR calculations and capacitance measurements. The large LCD display provides a real-time display of the R(t) graph. The results can be saved and downloaded via USB or RS232 connection and the optionally available software HVLink PRO. This high-quality meter comes standard with shielded test leads and high-quality accessories to ensure insulation testing is quick and effective.

Characteristics

Measurement functionsInsulation resistance measurementInsulation resistance test using the step voltageHigh voltage testDIAGNOSTIC TEST (PI, DD, DAR)Record the R(t) graphCapacitance testingVoltage measurementFrequency measurementMeasurement range up to 10 TΩ.Large range for DC test voltages: From 250 V to 5000 V steps à 25 V.High voltage: Testing of insulation with a programmable ramp test voltage from 250 V to 5 kV and a programmable threshold current.Step voltage: Insulation resistance measurement by means of five separate proportionally set test voltages and a programmableTimer per stage.Automatic testing: PI, DD, DAR calculations with automatic resistance range setting. All data is displayed during a single measurement.Test lead terminal: For eliminating potential surface leakage currents.Troubleshooting: Fully programmable step voltage and high voltage test functions help in troubleshooting insulation problems.Diagram R(t): The real-time resistance is shown in a time diagram in order to map the reaction of an insulation material to a test voltage.Integrated timer: Programmable timer from 1 s to 10 +0 min.Automatic discharge of the test specimen after the test.Quick check: 5 mA current supply for fast charging of the capacitive load.Accurate measurements: Selectable noise suppression filters and shielded test leads are supplied as standard to ensure high measurement accuracy.Safety: Overvoltage protection CAT IV / 600 V.Built-in battery charger and batteries: The meter has a built-in charger. One set of NiMH batteries is included.Portable: Lightweight design (3kg) with carrying handle and shoulder strap.

Delivery content

• Measurement TeraOhm 5 kV PlusCarrying case for accessoriesPower cable;Shielded test lead set for 10 kV, 2 m (black, red)Alligator clip set for 10 kV (black, red)Test lead with alligator clip, 2 m (gre

Keywords

03831063414490, Metrel, 20991530, MI 3201, electrical isolation test, resistance test
