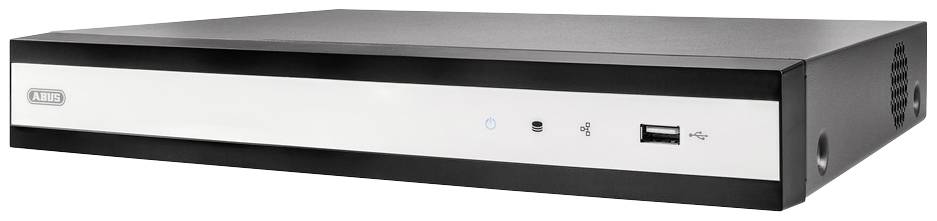

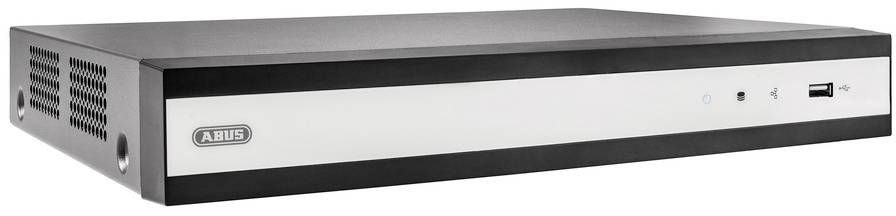

ABUS TVVR36401 Performance Line 4-channel Network video recorder

Overview

4-channel network recorder for live viewing and recordingWith 4 PoE (power over Ethernet) interfaces

Description

Performance for beginners – with PoEThe recorder for 4 PoE cameras is your efficient entry into the world of surveillance systemsState-of-the-art recording technology in 4K Ultra HDThe 4-channel PoE network recorder records video streams of up to 4 IP cameras simultaneously – with a resolution of up to 4K Ultra HD per camera. Thanks to compatibility with the H. 265 standard, the recorder processes highly compressed image data from cameras that support H. 265. These are stored in brilliant quality, occupy even less storage space (than with H.264) and are ideally suited for network access via integrated broadband interface (1000 Mbit/s). If the recorder hangs on the router, the video streams are transmitted via (W)LAN – without cable to the camera. Alternatively, PoE-enabled cameras are connected directly to the recorder via LAN cable and supplied with power – without extra power cable per camera.Individual configuration – intuitive operationThe system setup is easy: Simply connect the device to the router and monitor and operate it with the mouse – done. The recording is done manually, according to schedule or motion detection. Live view, playback and USB data export are carried out simultaneously (triplex operation). An HDMI or VGA connection is used to display images (4K or 1080p) on a monitor or TV set.Access video data worldwide via app and browserWith the setup of the recorder on the ABUS server you use a free DDNS service, in order to access live pictures and recordings via the Internet. Using an app or browser – independant of changing IP addresses.

Characteristics

4-channel network recorder for live viewing and recording of up to 4 IP camerasWith 4 PoE (power over Ethernet interfaceWith H. 265 Plus 6 times longer (support depends on the camera model)4K HDMI output for simultaneous native view of four Full HD (2MPx) IP camerasRecording after motion detection, schedule or permanentRecording of up to four 4K (8Mpx) cameras is possibleWeb and mobile access to live view and playback via router and browserNETWORK PROTOCOLS: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPNP™, HTTPSUSB connection: 2x USB 2.0Network connection: RJ-45 10/100/1000 Mbit/s self-adaptive Ethernet connectionCompatible with ABUS Link Station

Information

A 3.5" hard disk (1 TB to 6 TB) is required for operation. (Not included).

Delivery content

• 1x 4-channel PoE recorder
• 1x power supply, 48V DC
• 1x USB mouse
• 1x 1m network cable
• 2x hard disk connection cable
• 4x screws for hard disk

Keywords

ABUS, TVVR36401, Performance Line
