Description

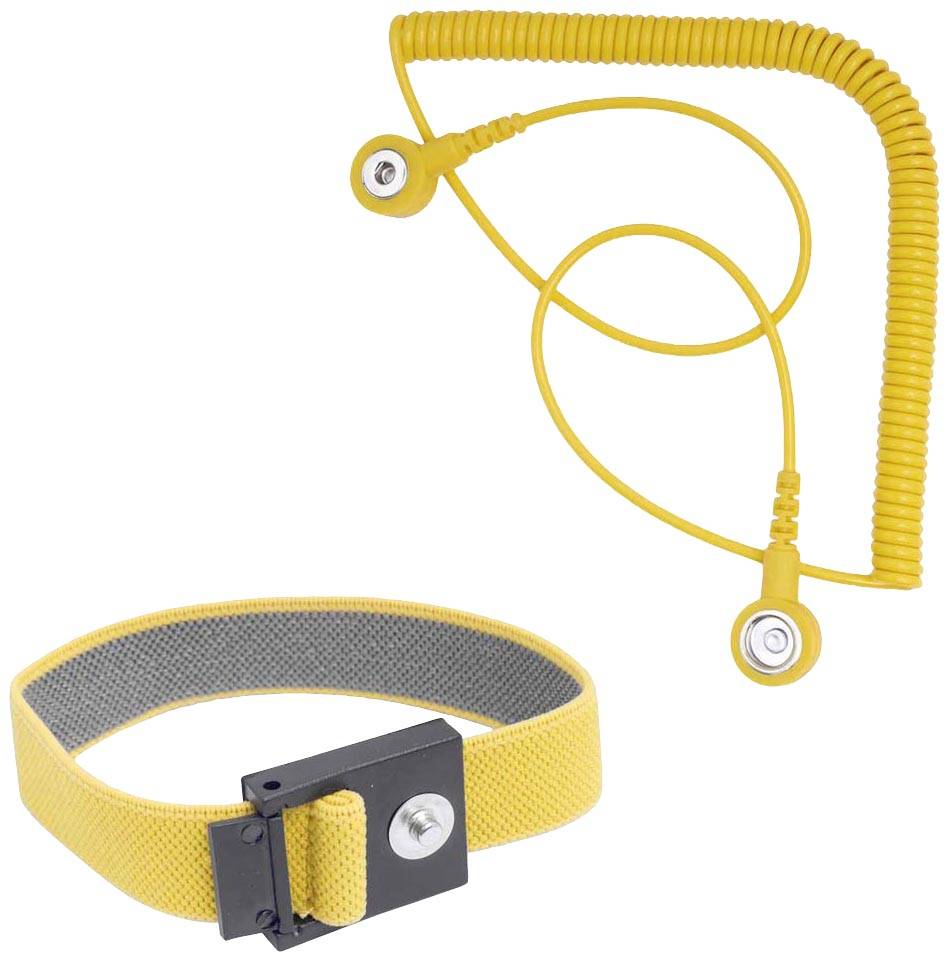

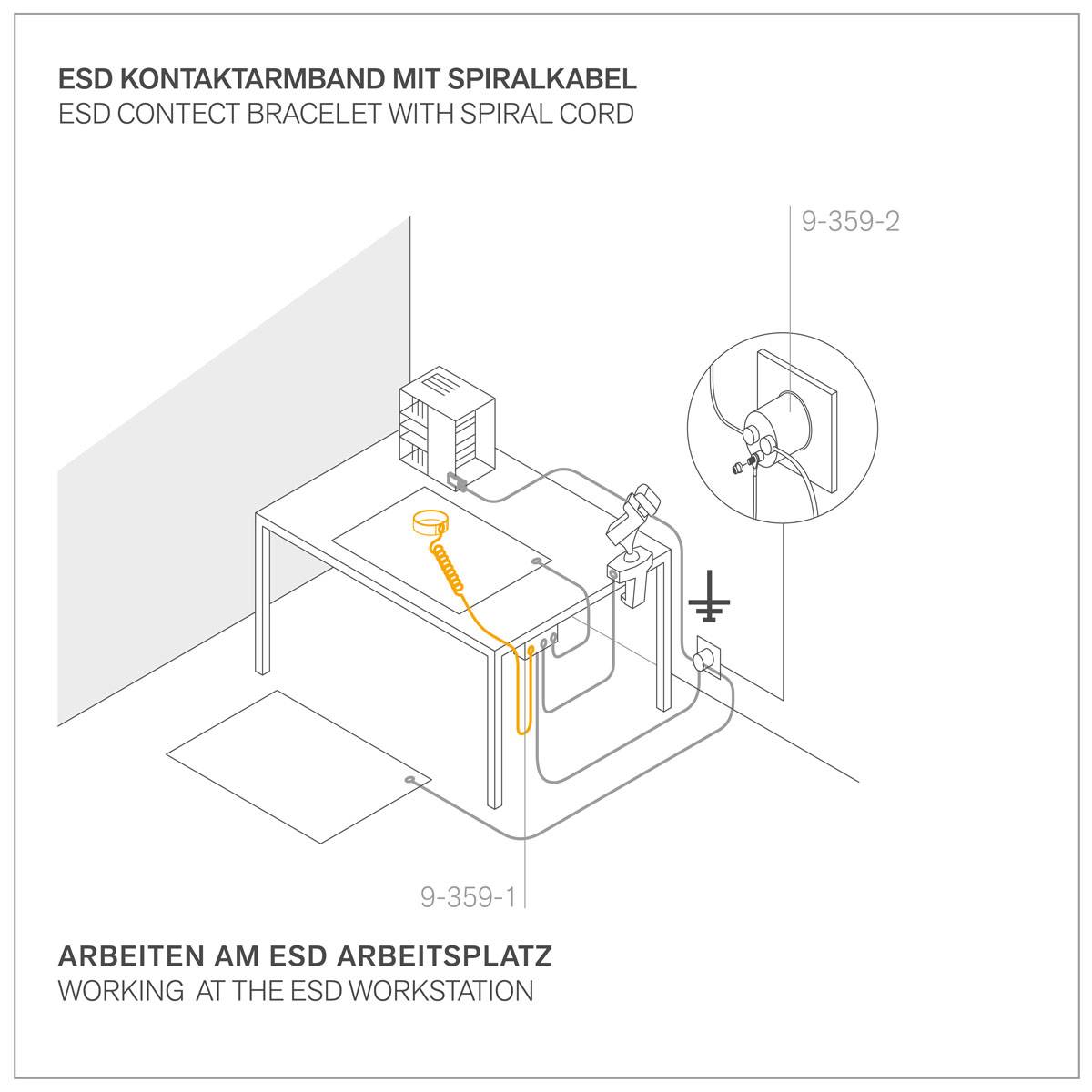

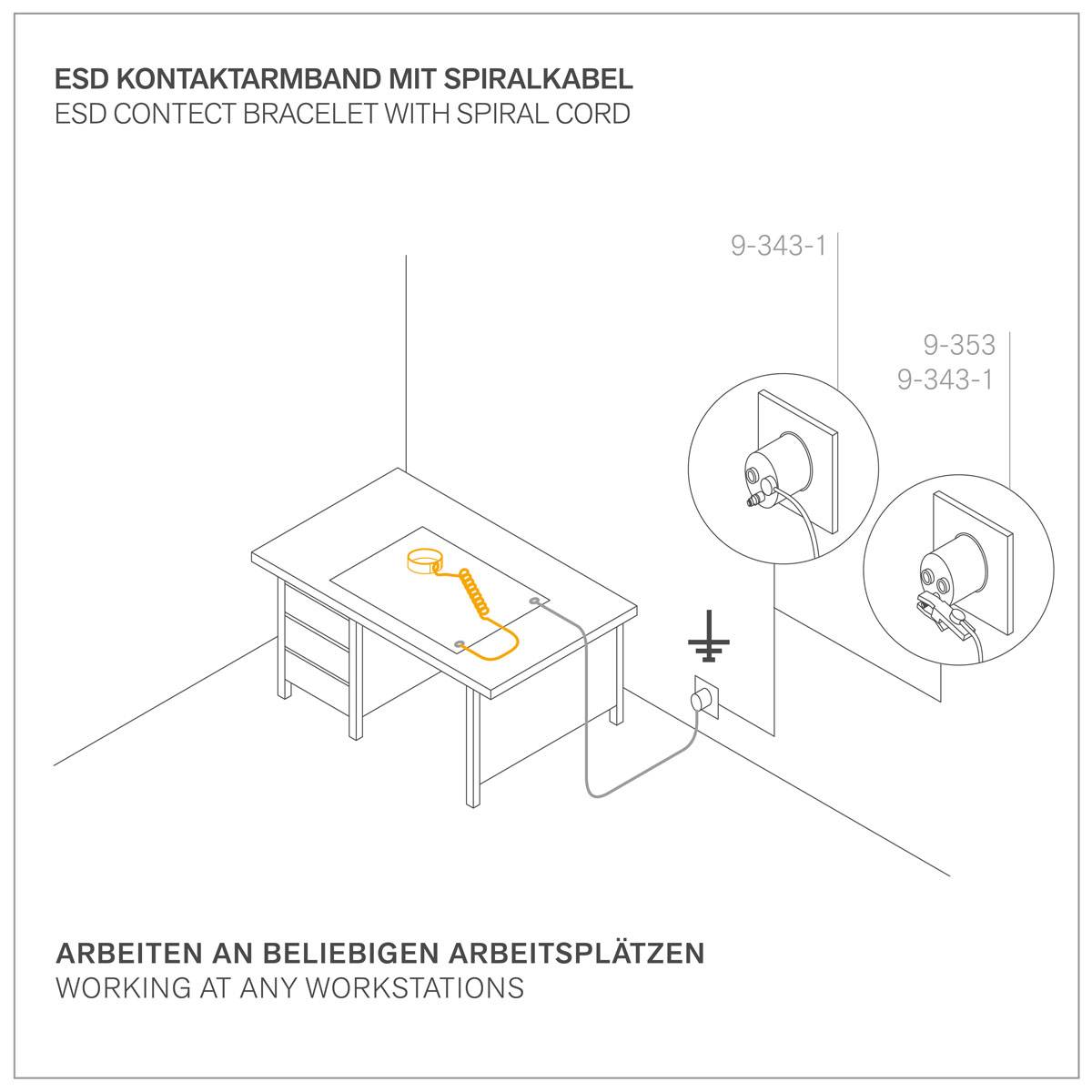

Wrist grounding, as a safe method for dissipating electrostatic charge from persons, consists of an adjustable wrist strap with woven silver-plated plastic fibers (close skin contact required) and a spiral cable, which electrically connects the wrist strap to the earthing point via push buttons (DK). The spiral cable contains a safety resistor of 1 MOhm on each side of the connection and is approved at work stations with a nominal voltage of up to 250 VAC. To ensure sufficient insulation, the bracelet may only be stored dry. Washing instructions for the bracelet: Standard machine wash up to 30° C with color and fine detergent, drying at low temperature (gentle), not bleaching. Avoid contact with acidic/alkaline solvents. ESD protection is retained for approx. 30 wash cycles. Connection recommendation: 9-359-1 ESD grounding module 3x10 mm push button for table attachment or 9-359-2 ESD grounding plug 2x10 mm push button and M5 connection for EU sockets.
