Schellenberg 20304 Wall brackets Compatible with Schellenberg Mini, Schellenberg Maxi

Overview

Reduces the noise of a roller shutter motorBalances the height tolerances of the mounting screwsSuitable for Mini and Maxi roller-shutter systemsComprising of two wall bearings with round and square mountingEasy installation in shutter box

Description

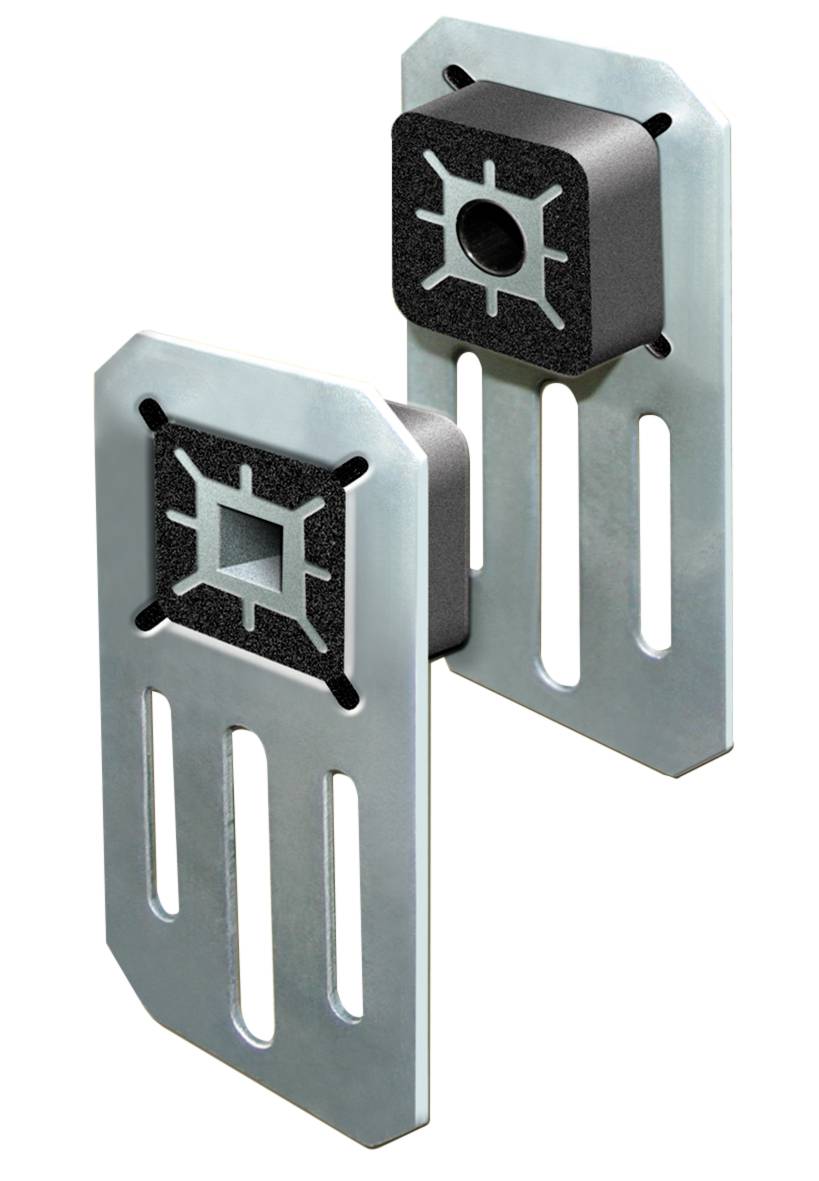

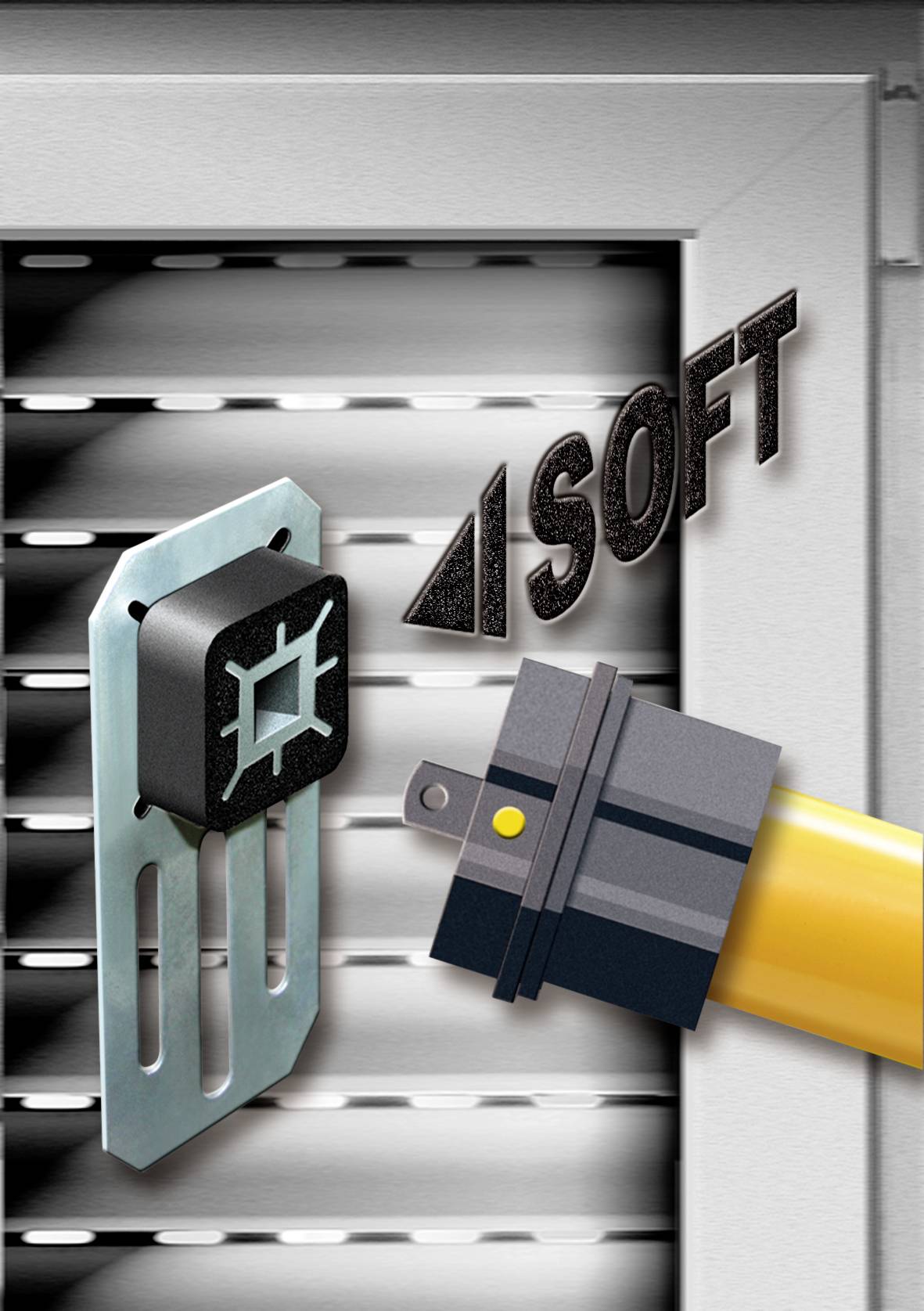

The soft-running wall bearing with a damping block made of high-quality rubber is suitable for motorized shutters. It compensates for the height tolerances of the mounting screws and thus reduces the noise of the roller shutter motor. The idle-run wall mount set is suitable for both mini and maxi-roller shutter systems and consists of two parts. The square holder is used to host the roller shutter motor. The round receptacle allows the rotational movement of the roller shutter shaft or the roller sleeve. The smooth running wall storage is fixed in the roller shutter box, whereby the enormous forces of a motorized shutter should be taken into account.

Delivery content

• 1 x wall bearing with square attachment1 x wall bearings with round holder

Keywords

Schellenberg, 20304
