Telegärtner 100023616 100023616 1 pc(s)

  • item model number: Y882591

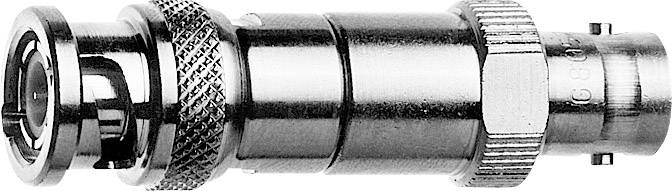

A metal BNC plug lying sideways. Used for coaxial cable connections, often employed in video and network technology. Image is similar

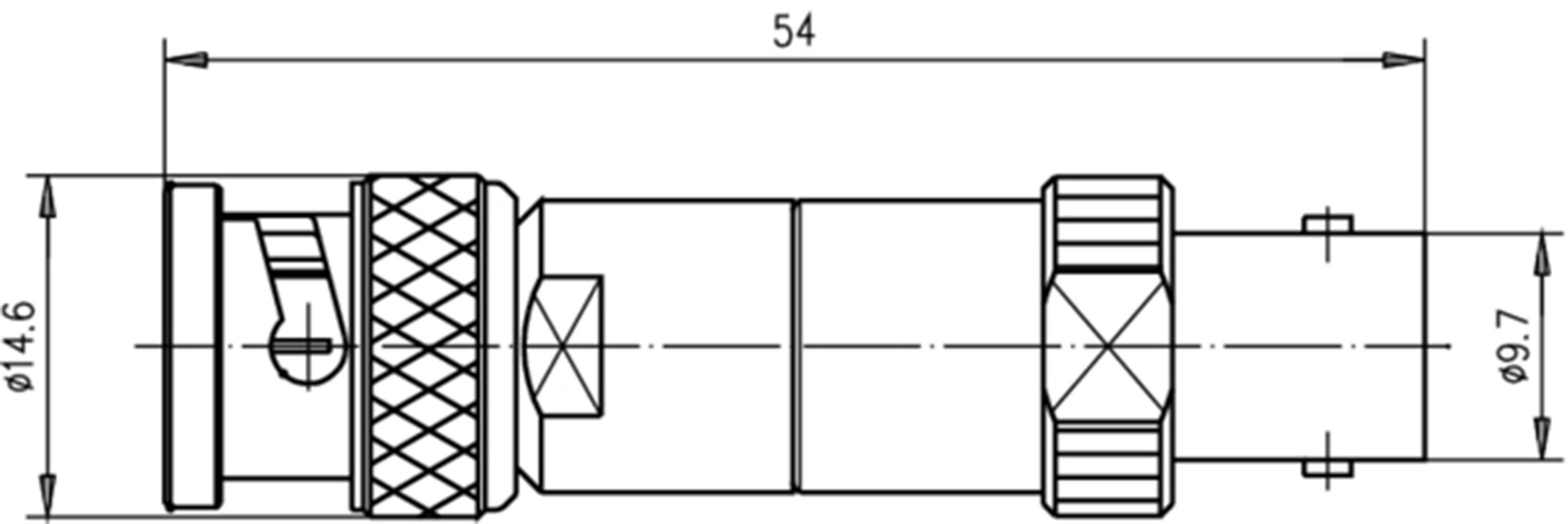

Technical drawing of a connector with dimensions: Length 54 mm, diameter 14.6 mm on one side and 9.7 mm on the other.
Currently not available
There is already a notification for this product.
Telegärtner 100023616 100023616 1 pc(s)
Currently not available
There is already a notification for this product.

Product description

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

Keywords

02050003320610, 02050003446259, 02050003320603, 02050003446266, 2050003446259, Telegärtner

A metal BNC plug lying sideways. Used for coaxial cable connections, often employed in video and network technology. Image is similar
Technical drawing of a connector with dimensions: Length 54 mm, diameter 14.6 mm on one side and 9.7 mm on the other.
