Description

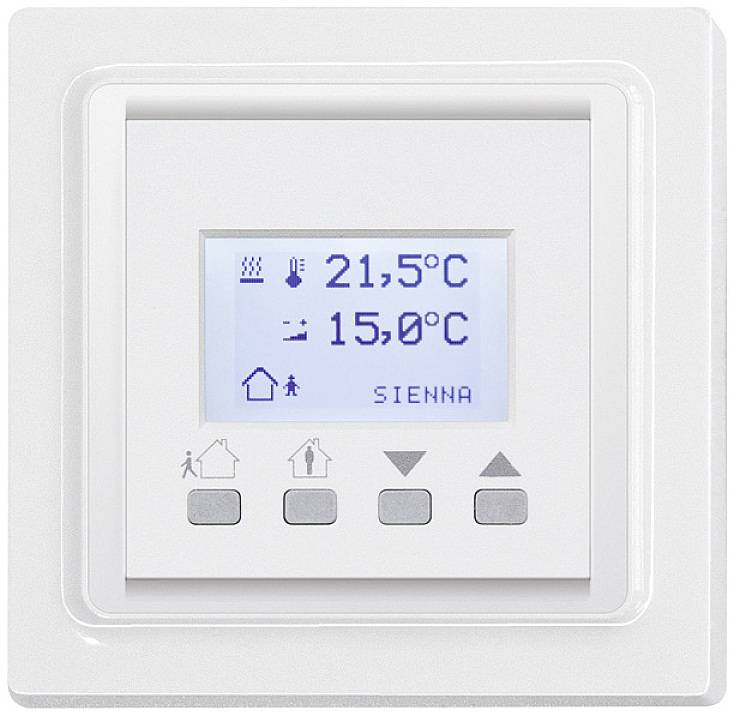

Powerline temperature controller with display, white, 55x55mm, for mounting in switch systems. In addition a potential-free control contact 3A/250V AC for direct heating and cooling. Standby loss of only 0.5 watt. Included in the delivery are a frame R1E and an intermediate frame ZR65/55 for the E-design, the upper part of the temperature controller and a lower part for mounting in 58 mm UP sockets. In normal mode, the current room temperature is shown on the display and also symbols for present or absent, as well as active or cooling for heating. The corresponding target value is activated with the keys (absent) and (present). In setup mode in accordance with the operating instructions, the desired and actual temperatures are displayed with the buttons s and t and the set values are changed. Control of heating or cooling with Powerline actuators PL-SAM1L or PL-SAM2L.
