kwb 758600 Bore template 5 pc(s)

  • item model number: D220342

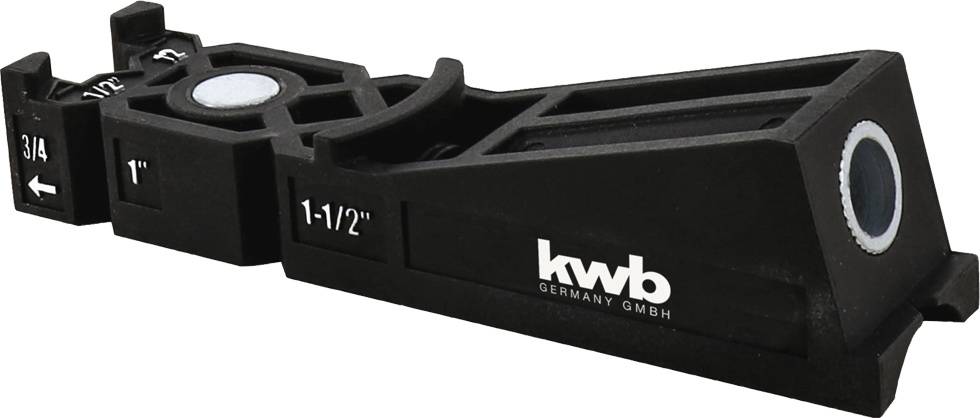

Black drill template angle with measurements in inches: 3/4, 1, 1-1/2. Kwb Germany GmbH logo visible.

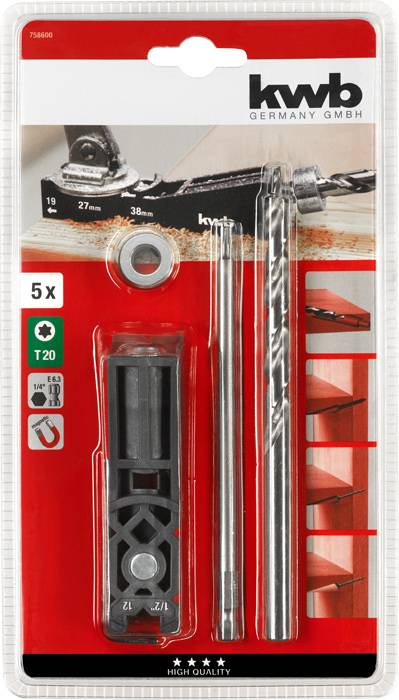

Tool set with drill bits and mounting accessories, ideal for precise shelf installation. Packaged by 'kwb Germany GmbH.'

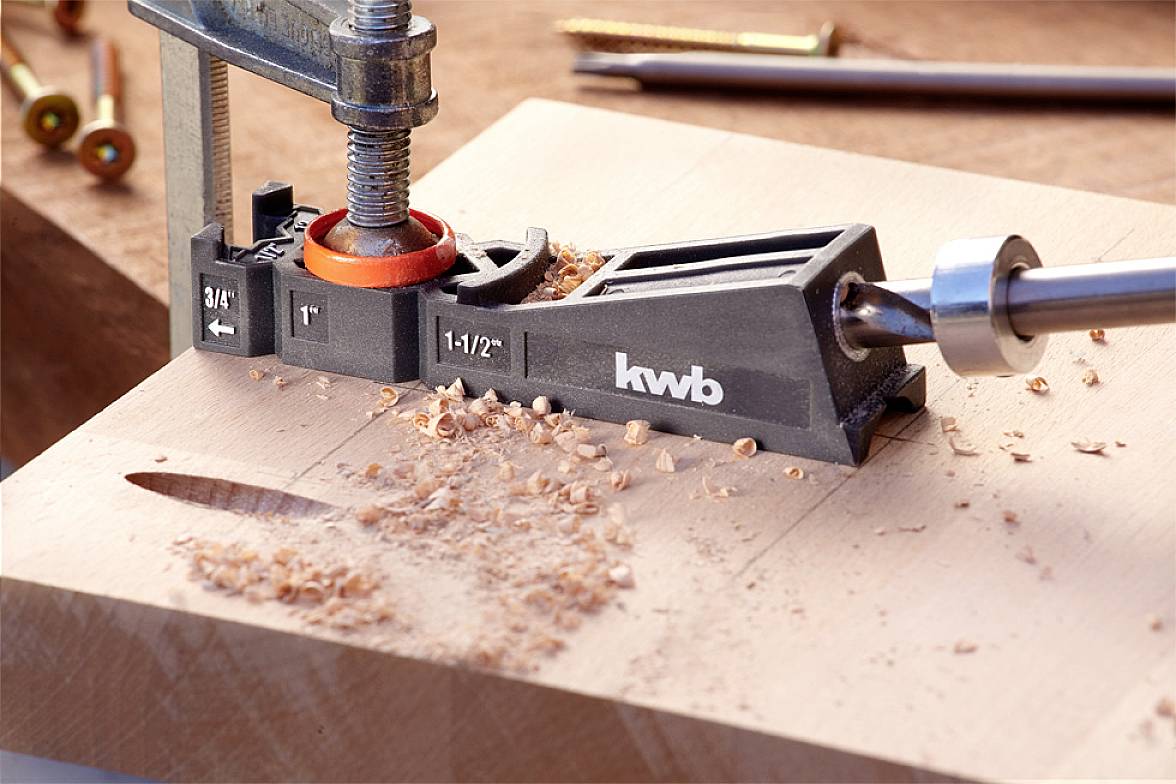

Drill template secured on wood, guiding the drill bit for precise drilling; wood shavings scattered around the hole. Work surface in the background.
CHF 18.20
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
kwb 758600 Bore template 5 pc(s)
CHF 18.20
VAT included
plus
One article is not enough for you and you want to save money?
from 3 pack : CHF 18.01 1,0 % savings
from 5 pack : CHF 17.83 2,0 % savings
from 10 pack : CHF 17.65 3,0 % savings

Product description

Overview

For board thicknesses of 12–38 mmComprises 5 pieces!Adjustable drilling depth with depth stop

Description

The kwb pocket-hole drilling template consists of 5 parts: Pocket-drill gauge, wood drill, depth stop, screwdriver bit and a hexagonal pin wrench. The base material of the drilling gauge is made of hardened plastic. It is also equipped with a metal drill bushing. The metallic pressure piece and compact design of the kwb pocket drill gauge can be clamped with any conventional screw clamp. The correct drilling depth is achieved using the depth stop adjustable on the wood drill. The depth stop is clamped on the wood drill using the hexagon pin key. The drilling angle is 15°. The drilling template can be used to process wooden boards with a standard thickness of 12, 19, 27 and 38 mm.

Keywords

kwb, 758600

Black drill template angle with measurements in inches: 3/4, 1, 1-1/2. Kwb Germany GmbH logo visible.
Tool set with drill bits and mounting accessories, ideal for precise shelf installation. Packaged by 'kwb Germany GmbH.'
Drill template secured on wood, guiding the drill bit for precise drilling; wood shavings scattered around the hole. Work surface in the background.
