Jumo 00300200 N/A 1 pc(s)

  • item model number: D389932

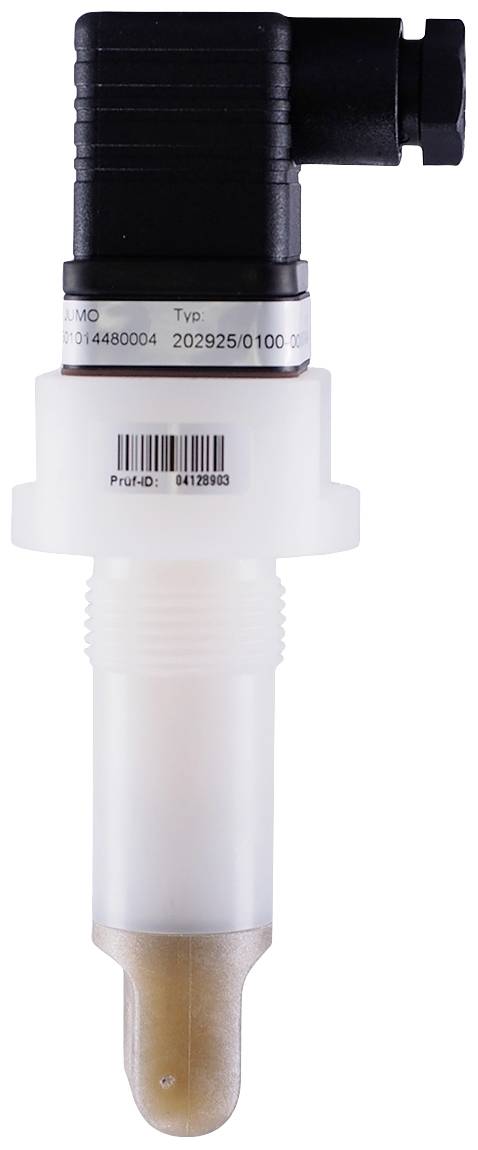

A sensor with a cylindrical casing and threaded screw, likely used for measuring temperature or conductivity in technical applications.

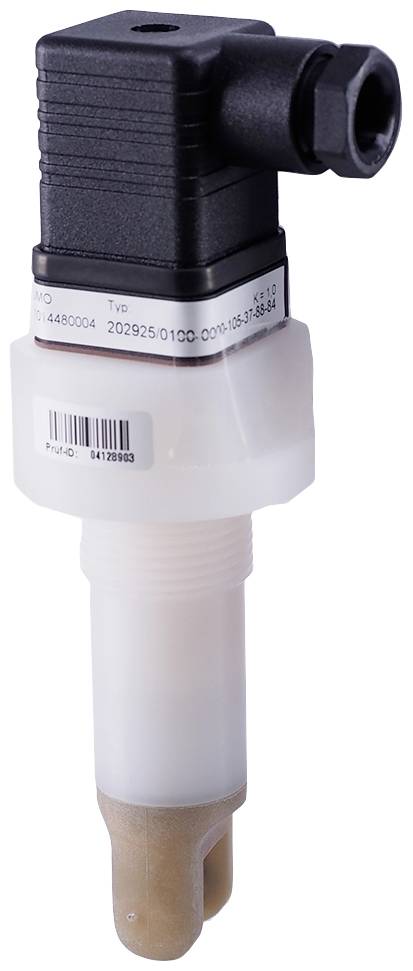

A sensor with a plastic housing, suitable for industrial applications. It has a black connection plug on top.

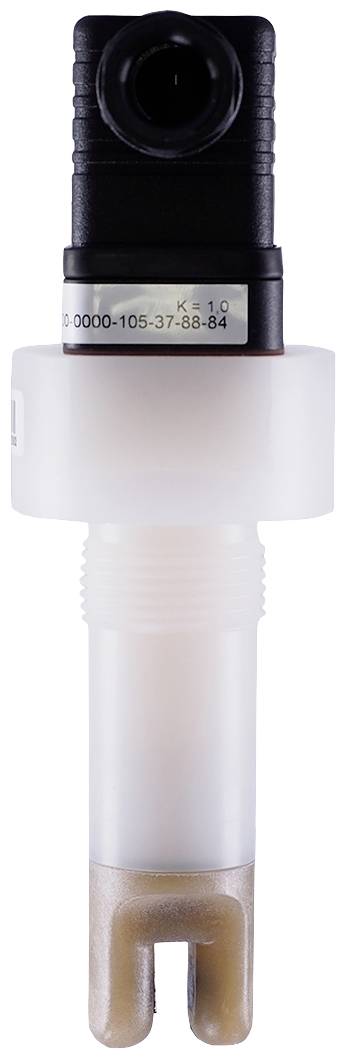

An electrical device with a black upper section and a white plastic casing. A measuring probe is visible at the bottom.
CHF 754.95
VAT included
plus
available from 25/08/2026
30 days free return shipment
Jumo 00300200 N/A 1 pc(s)
CHF 754.95
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 747.40 1,0 % savings
from 5 piece : CHF 739.85 2,0 % savings
from 10 piece : CHF 732.30 3,0 % savings

Product description

Description

This conductive conductivity sensor has a cell constant of K=1.0 (for measuring ranges 10µ up to 15 MS/cm) as well as a Pt100 measurement insert in two-wire circuit. The installation is done via the process connection G 3/4A made of PVDF. An angular device plug to DIN 43650 is available as an electrical connection. The material of the electrode is graphite, the installation length is 76 mm. The operating temperature is 0 to +130°C, the maximum pressure load is 16 bar at 25°C and 9 bar at 60°C, maximum 1 bar at 130°C.

Keywords

Jumo, 00300200, meter accessories, meter replacement, meter spare part, meter replacement part

A sensor with a cylindrical casing and threaded screw, likely used for measuring temperature or conductivity in technical applications.
A sensor with a plastic housing, suitable for industrial applications. It has a black connection plug on top.
An electrical device with a black upper section and a white plastic casing. A measuring probe is visible at the bottom.
