Jumo 00300203 N/A 1 pc(s)

  • item model number: D389942
A silver, cylindrical sensor with a black connection at the top. The sensor is designed for technical applications.

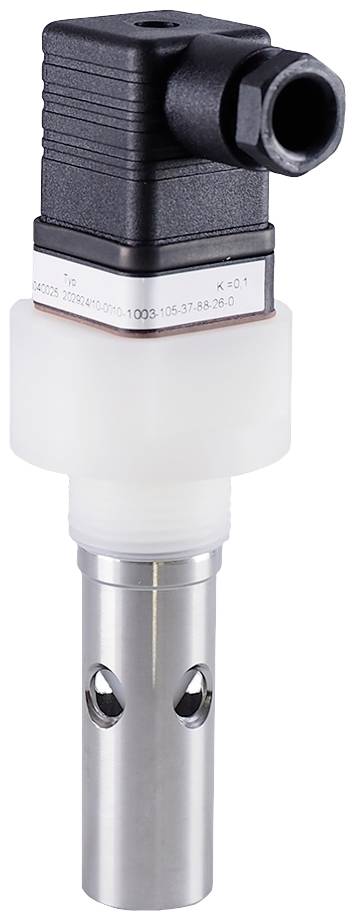

An industrial sensor with a black plastic housing and silver metal tip, used for temperature or pressure measurement.

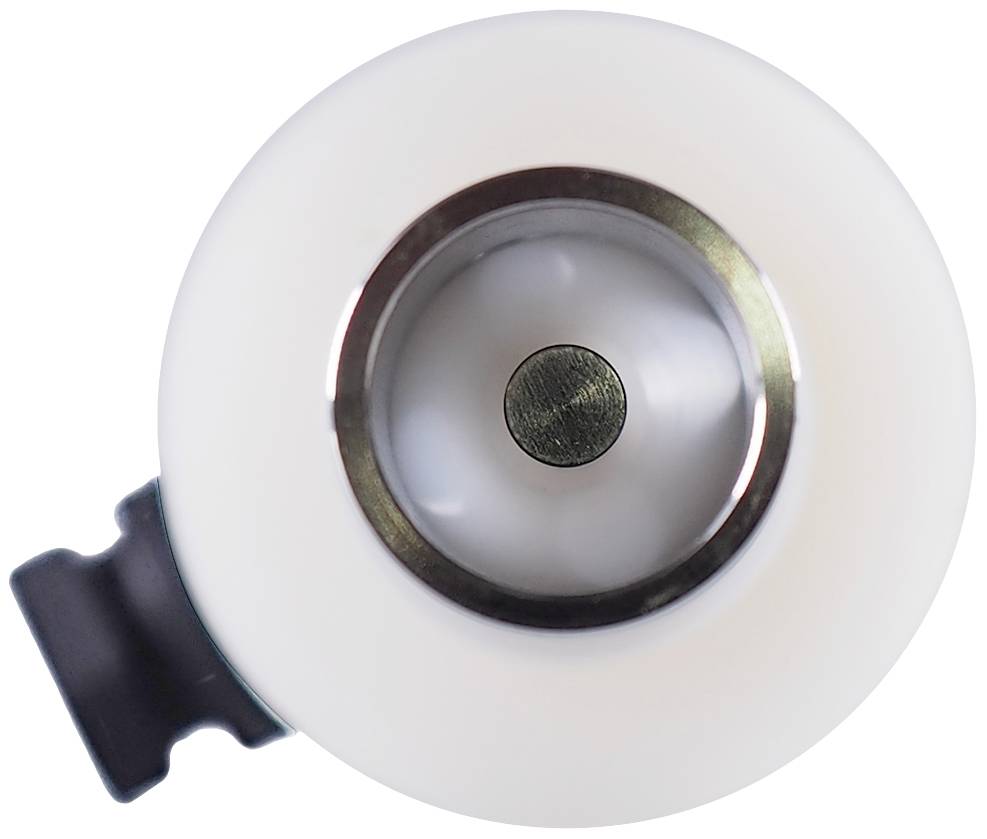

White roller with a shiny metal centre, viewed from above. A black mounting bracket is attached to the side.

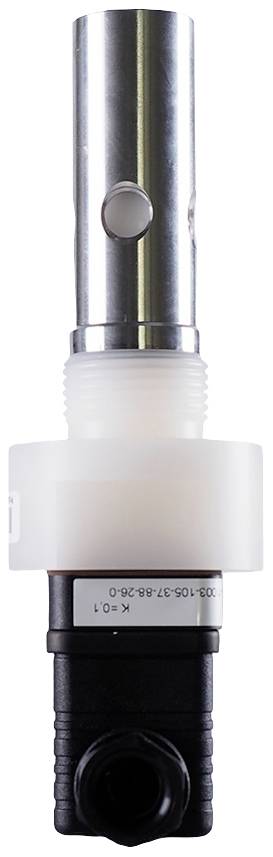

Silver-coloured sensor with a round housing, black connection at the lower end. Used for measuring physical quantities.
CHF 743.05
VAT included
plus
Delivery time: 3-4 days
available from 25/09/2026
30 days free return shipment
Jumo 00300203 N/A 1 pc(s)
CHF 743.05
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 735.61 1,0 % savings
from 5 piece : CHF 728.18 2,0 % savings
from 10 piece : CHF 720.75 3,0 % savings

Product description

Description

This conductive conductivity sensor has a cell constant of K=0.1 (for measuring ranges 0.1 to 1000 US/cm). The installation is done via the process connection G 3/4A made of PVDF. An angular device plug to DIN 43650 is available as an electrical connection. The material of the electrode is stainless steel (1.4571). Installed length 76 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 9 bar at 60 °C.

Keywords

Jumo, 00300203, meter accessories, meter replacement, meter spare part, meter replacement part

A silver, cylindrical sensor with a black connection at the top. The sensor is designed for technical applications.
An industrial sensor with a black plastic housing and silver metal tip, used for temperature or pressure measurement.
White roller with a shiny metal centre, viewed from above. A black mounting bracket is attached to the side.
Silver-coloured sensor with a round housing, black connection at the lower end. Used for measuring physical quantities.

Product specifications
